In continuous-process industries, a valve is not a static pipe fitting; it is the physical manifestation of digital control logic. Consider a volatile hydrocarbon refining line at 3:00 AM: an unexpected upstream pressure excursion demands immediate, deterministic isolation. A generic, poorly specified valve experiences stiction or actuator lag, causing a catastrophic overpressure event that ruptures safety discs, halts production, and incurs an immediate $50,000 system failure.
Conversely, a precisely calibrated MTD Actuator Valve responds to the control signal within milliseconds. It delivers the exact torque required to cut through fluid resistance, sealing the line flawlessly, protecting downstream infrastructure, and preserving operational continuity.
Selecting the right pneumatic actuated valve requires balancing fluid dynamics, metallurgy, and long-term asset economics. This technical guide outlines the framework required to select the optimal pneumatic actuation setup for your infrastructure.

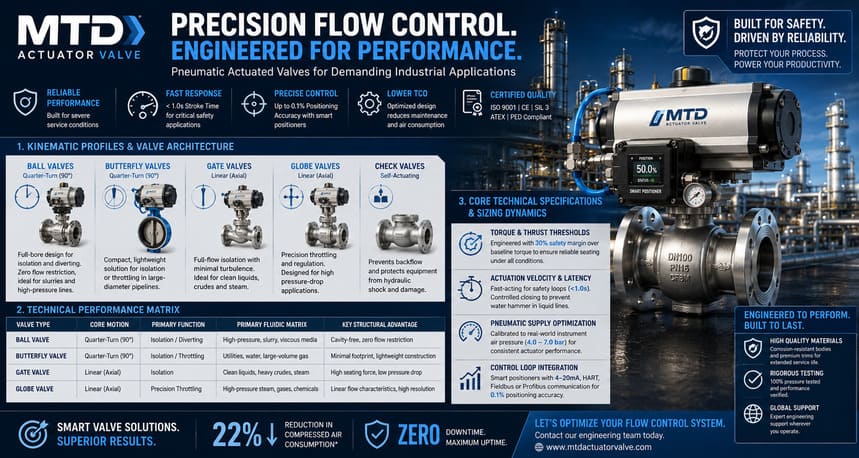

The choice of valve body must align with the fluidic properties of the media. Each mechanical design alters flow paths and pressure profiles uniquely.
Engineered for quarter-turn isolation. The full-bore design ensures zero flow restriction and minimal pressure drop across the valve matrix, making it indispensable for viscous fluids, slurries, and high-volume transport lines.
Utilize a rotating disc to modulate or isolate flow. Offering a compact, space-saving footprint and exceptional weight reduction, these valves provide an elegant solution for large-diameter pipelines handling utilities, gases, and low-pressure steam.
Gate valves excel in linear, full-flow isolation where minimal fluid turbulence is required. Globe valves force fluid through a tortuous path, making them the industry standard for high-precision throttling, linear regulation, and severe pressure-drop applications.
Self-actuating safety components that rely on process pressure to prevent backflow. They protect sensitive upstream equipment, such as multi-stage pumps and compressors, from destructive hydraulic shockwaves.
To optimize system architecture, engineers must match the valve design to the precise operational environment.
Valve Type | Core Motion | Primary Function | Primary Fluidic Matrix | Key Structural Advantage |
Ball Valve | Quarter-Turn (90°) | Isolation / Diverting | High-pressure, slurry, viscous media | Cavity-free, zero flow restriction |
Butterfly Valve | Quarter-Turn (90°) | Isolation / Throttling | Utilities, water, large-volume gas | Minimal footprint, lightweight construction |
Gate Valve | Linear (Axial) | Isolation | Clean liquids, heavy crudes, steam | High seating force, low pressure drop |
Globe Valve | Linear (Axial) | Precision Throttling | High-pressure steam, gases, chemicals | Linear flow characteristics, high resolution |
Pneumatic actuation requires balancing fluid mechanics with pneumatic force vectors. Oversizing leads to excess capital expenditure, while undersizing leads to incomplete seating and process drift.
Torque and Thrust Thresholds: The pneumatic actuator must overcome static breakaway torque, dynamic packing friction, and hydrodynamic fluid forces. MTD Actuator Valve mandates engineering a 30% safety margin over the manufacturer’s baseline torque requirement to account for component aging and media accumulation.
Actuation Velocity and Latency: Fast-acting safety loops require high-flow solenoid valves and rapid-exhaust blocks to achieve stroke times under 1.0 second. Conversely, liquid lines require controlled, slower closing profiles to mitigate the destructive effects of water hammer.
Pneumatic Supply Optimization: Actuators must be calibrated to the plant’s actual, real-world instrument air pressure grid (typically 4.0 to 7.0 bar) rather than idealized theoretical values. Fluctuations in supply pressure directly degrade the actuator’s output torque.
Control Loop Integration: Modern automation demands seamless communication. High-performance loops pair digital electropneumatic positioners with 4-20mA feedback loops, HART, Foundation Fieldbus, or Profibus protocols to achieve a 0.1% positioning accuracy.

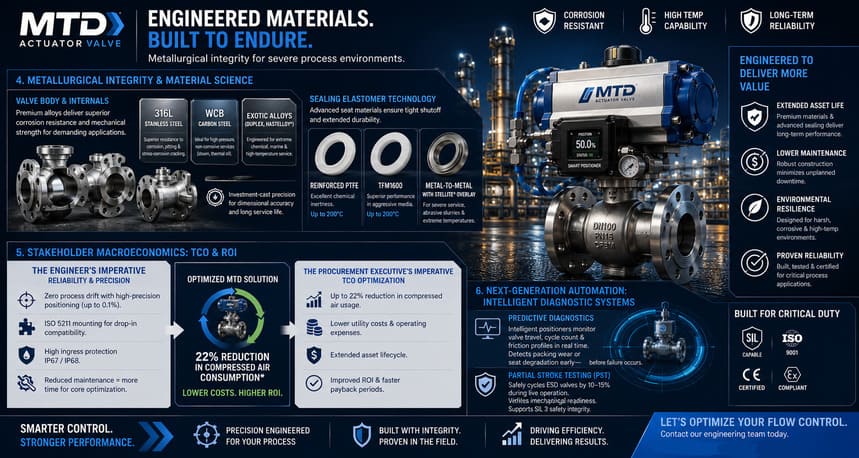

Corrosive, abrasive, or ultra-high-temperature media will rapidly degrade substandard materials.
For aggressive chemical matrices or marine installations, investment-cast 316L Stainless Steel or exotic alloys prevent localized pitting and stress-corrosion cracking. Carbon steel (WCB) remains the standard for high-pressure, non-corrosive thermal oil and steam applications.
The interface between the valve plug/disc and the seat determines tightness. Reinforced PTFE and TFM1600 provide exceptional chemical inertness up to 200°C. For severe service, extreme temperatures, or abrasive slurries, metal-to-metal seating with Stellite cobalt-alloy overlays is required to ensure long-term durability.
A successful automation deployment must reconcile the immediate requirements of plant operations with the long-term fiscal metrics of corporate procurement.
Engineers prioritize zero process drift, drop-in mechanical compatibility via ISO 5211 mounting patterns, and high ingress protection (IP67/IP68). Minimizing physical maintenance interventions preserves engineering hours for core process optimization.
Procurement must look past initial purchase pricing to evaluate the Total Cost of Ownership (TCO). Inefficient actuators waste massive amounts of compressed air—one of the most expensive utilities in a modern plant. By utilizing low-bleed pilot valves and high-efficiency pneumatic cylinders, MTD Actuator Valve systems reduce instrument air consumption by up to 22%, lowering utility costs and accelerating project ROI.
As production facilities transition toward Industry 4.0, pneumatic assets must provide real-time status data.
Predictive Diagnostics: Intelligent positioners continuously track total valve travel, cycle counters, and dynamic friction profiles. By analyzing these data points, the system identifies packing binding or seat wear before a mechanical failure occurs.
Partial Stroke Testing (PST): For critical emergency shutdown (ESD) valves, integrated PST modules allow operators to safely cycle the valve by 10-15% during live operation. This confirms mechanical readiness without interrupting the process flow, enabling the system to meet SIL 3 safety requirements.
When your process safety, product quality, and operational uptime are on the line, generic valves are a liability. MTD Actuator Valve Industry designs and manufactures elite pneumatic actuated valve systems built for severe industrial applications. Every valve and actuator combination undergoes rigorous pressure testing, torque profiling, and seat leakage evaluation prior to shipment.
Optimize your plant's flow control loops. Contact the MTD Actuator Valve Industry application engineering group today to submit your process parameters and receive a custom-tailored, high-performance flow control solution.
