Engineering Precision: The Ultimate Guide to Electric Actuator Selection

In high-stakes industrial automation, an electric actuator is not merely a component; it is the critical nexus between digital control logic and physical fluid dynamics. Imagine a volatile chemical processing plant at 3 AM: a sudden pressure spike threatens a primary line. A laggy, poorly specified actuator stalls, causing an immediate $50,000 system failure and unscheduled downtime. Conversely, a precisely calibrated MTD Actuator Valve Industry intelligent actuator responds within milliseconds, modulating fluid flow with absolute accuracy, neutralizing the spike, and preserving operational continuity.

Selecting the correct electric actuator requires balancing rigorous engineering parameters with strategic macroeconomic outcomes. This technical guide outlines the framework required to select the optimal actuation system for your infrastructure.

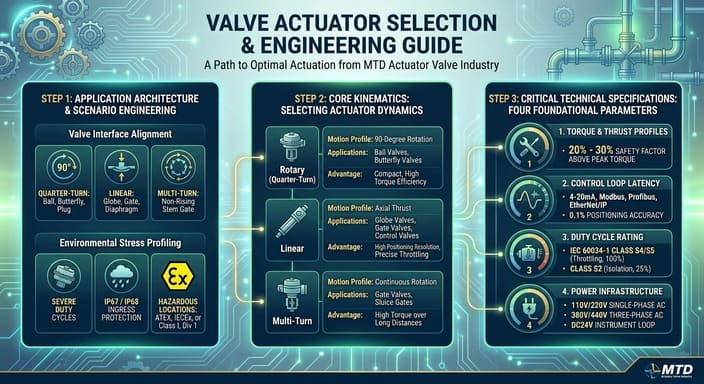

1. Application Architecture and Scenario Engineering

Before analyzing hardware specifications, engineers must map the precise operational environment and mechanical demands of the system.

Valve Interface Alignment

The mechanical motion of the valve dictates the core architecture of the actuator.

• Quarter-Turn Valves: Ball, butterfly, and plug valves require precise 90-degree rotation.

• Linear Valves: Globe, gate, and diaphragm valves demand exact axial force and travel displacement.

• Multi-Turn Valves: Non-rising stem gate valves require continuous rotational input over multiple revolutions.

Environmental Stress Profiling

Actuators frequently operate under extreme environmental conditions. Severe duty cycles require rugged enclosures with IP67 or IP68 ingress protection to safeguard internal electronics against moisture, chemical washdowns, and particulate contamination. For hazardous locations, explosion-proof certifications (ATEX, IECEx, or Class I, Div 1) are mandatory to prevent catastrophic ignition events.

2. Core Kinematics: Selecting Actuator Dynamics

Matching the actuator design to the mechanical load ensures long-term reliability and prevents premature motor burnout.

3. Critical Technical Specifications

To ensure seamless integration into existing distributed control systems (DCS) or programmable logic controllers (PLC), engineers must evaluate four foundational parameters.

• Torque and Thrust Profiles: The actuator must overcome both the static breakaway torque (seating/unseating torque) and the dynamic running torque of the valve under maximum differential pressure. MTD Actuator Valve Industry recommends sizing the actuator with a 20% to 30% safety factor above the valve's peak torque requirement to account for component aging and media packing.

• Control Loop Latency: For critical modulation tasks, look for actuators that accept continuous analog signals (4-20mA or 0-10V) or digital fieldbus networks (Modbus, Profibus, EtherNet/IP). Low-latency digital processors ensure 0.1% positioning accuracy, eliminating hunting and stabilizing the control loop.

• Duty Cycle Rating: Define the frequency of operation. Throttling control valves require a 100% continuous duty cycle rating (IEC 60034-1 Class S4/S5) to withstand non-stop micro-adjustments without overheating, whereas simple open/close isolation valves may only require a 25% duty cycle (Class S2).

• Power Infrastructure Integration: Match the motor voltage to the facility's available power grid, balancing single-phase AC (110V/220V), three-phase AC (380V/440V) for heavy-duty torque loads, or stabilized DC24V for low-voltage instrument loops.

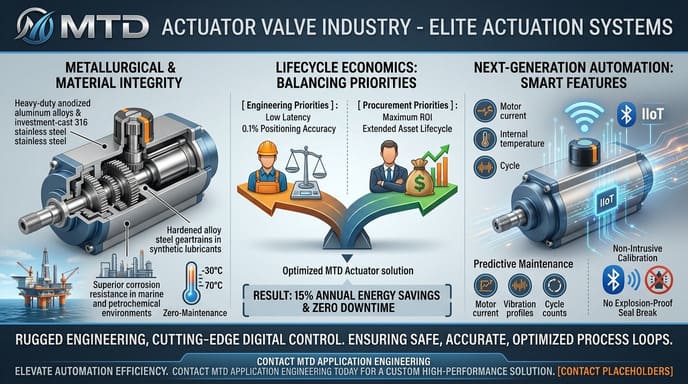

4. Metallurgical and Material Integrity

The longevity of an actuator depends heavily on its material construction. MTD Actuator Valve Industry engineering utilizes premium housing materials like heavy-duty anodized aluminum alloys or investment-cast 316 stainless steel to deliver superior corrosion resistance in marine and petrochemical environments. Internal geartrains engineered from hardened alloy steel run in synthetic lubricants, ensuring zero-maintenance operation across a temperature envelope spanning -30°C to 70°C.

5. Lifecycle Economics: Balancing Engineering and Procurement

A successful automation deployment addresses the distinct priorities of both plant engineers and procurement managers.

       [ Engineering Priorities ]                 [ Procurement Priorities ]
  Low Latency + 0.1% Positioning Accuracy    Maximum ROI + Extended Asset Lifecycle
                   \                                   /
                    \                                 /
                     [ Optimized MTD Actuator Valve Solution ]
                                     |
                Result: 15% Annual Energy Savings & Zero Downtime

The Engineer’s Focus: Performance and Integration

Engineers demand minimal latency, drop-in mechanical compatibility (ISO 5211 mounting pads), and comprehensive diagnostics. High positioning resolution reduces process variability, which directly enhances end-product quality and limits mechanical wear on downstream equipment.

The Procurement Manager’s Focus: TCO and ROI

Procurement must look beyond the initial purchase price to evaluate the Total Cost of Ownership (TCO). High-efficiency permanent magnet motors combined with smart power management modules deliver up to 15% savings in energy consumption. When factored over a decade-long operational life, the elimination of unscheduled maintenance interventions transforms the actuator from a capital expense into a high-ROI asset.

6. Next-Generation Automation: Smart Features

Modern industrial frameworks require components that can participate in Industrial Internet of Things (IIoT) ecosystems.

• Predictive Maintenance Diagnostics: Advanced MTD Actuator Valve Industry actuators continuously monitor motor current, internal temperature, vibration profiles, and cycle counts. This data allows operators to detect valve packing degradation before an unexpected failure occurs.

• Non-Intrusive Calibration: Utilizing Bluetooth or infrared interfaces allows maintenance personnel to calibrate limits and torque settings without breaking the explosion-proof seal of the enclosure, safeguarding internal components from ambient humidity during commissioning.

The MTD Actuator Valve Industry Advantage

When operational integrity cannot be compromised, global industries rely on MTD Actuator Valve Industry. As a premier developer of elite actuation systems, MTD Actuator Valve Industry combines rugged mechanical engineering with cutting-edge digital control logic. Every actuator is subjected to rigorous simulation and physical stress testing prior to deployment, ensuring your process loops remain safe, accurate, and optimized.

Elevate your plant’s automation efficiency. Contact the MTD Actuator Valve Industry application engineering team today to review your project specifications and secure a customized, high-performance actuation solution.
