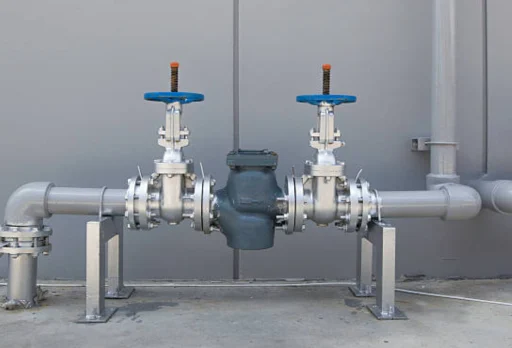

What is a Flange Connection?

A flange connection is a robust and standardized method of joining a valve to a pipeline system through an outer rim or flange, which is secured together by a circumferential system of bolts and nuts. Mechanically, it works by compressing a gasket between two similar flange faces to create a static seal. This assembly is governed by strict international standards, most notably ASME B16.5 in the United States and EN 1092 in Europe. These standards define the dimensions, tolerances, and material requirements for different types of industrial services.

Anatomically, a flange connection consists of three distinct components: the flange (which can be cast into the valve body or welded onto the pipeline), the gasket (the sacrificial sealing component), and the bolt hardware. Flange faces can be designed with special surface finishes, such as concentric or spiral serrations, to maximize the grip on the gasket material, thereby increasing the seal's resistance to internal pressure. Due to the distribution of sealing forces over a large surface area, flange connections are inherently capable of withstanding significant mechanical loads, such as bending moments and thermal expansion, without compromising the fluid boundary.

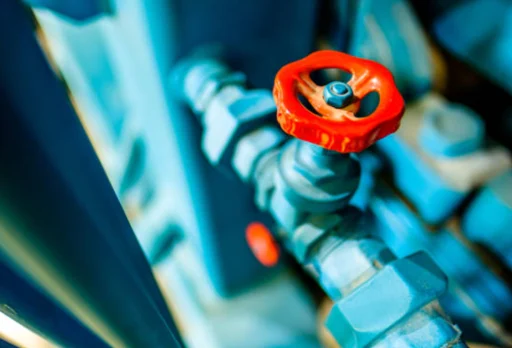

What is a Threaded Connection?

The oldest and simplest mechanical interlocking principle, the engagement of male and female threads, is used in threaded connections, also known as screwed connections. These threads are typically tapered, such as National Pipe Thread (NPT) or British Standard Pipe Taper (BSPT) in industrial valves. The sealing upon tightening is achieved through metal - to - metal interference and the use of auxiliary sealing materials like Polytetrafluoroethylene (PTFE) tape or special pipe dope, which seals the minute spaces between the thread crests and roots.

The frictional and compressive forces generated when torque is applied to the valve on the pipeline give the threaded joint its mechanical strength. Unlike flange assemblies, threaded joints use internal fasteners built into the pipe wall and valve body. This design is highly space - efficient, requiring no additional hardware, making it a favorite for small - scale systems and low - bore pipelines. However, the integrity of the seal depends significantly on the quality of the thread cutting and the installer's expertise. Excessive torque can lead to stress cracking, while insufficient torque can result in helical leakage.

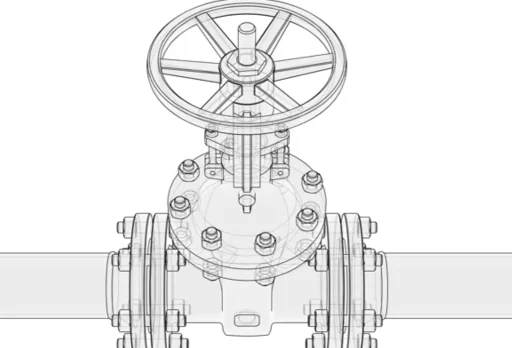

Technical Details: Flange vs Threaded Connections

Size and Pressure Rating Limitations

The differences between flange and threaded connections are most evident when considering variables such as the Nominal Pipe Size (NPS) and the internal system pressure of such pipelines. In engineering practice, 2 inches (DN50) serves as a clear demarcation. In pipeline systems with diameters greater than 2 inches, the mechanical forces required for thread sealing become prohibitively large. The torque needed to engage large - diameter threads may far exceed the structural capacity of the material or the capabilities of standard installation tools. Thus, flanges are used for large - scale industrial applications, as they offer excellent strength and can smoothly extend beyond 60 inches.

Furthermore, pressure ratings, as determined by ASME 150 to 2500 classes, favor flange designs under high - stress conditions. While there are specialized high - pressure threaded joints, standard NPT connections are typically limited to low - pressure classes. The thinning of the pipe wall due to threading creates a localized weak point. In contrast, flanges utilize the skeletal structure of the bolt array to reinforce the joint, enabling it to resist extreme hydrostatic pressures that would cause a threaded joint to jump or strip.

Sealing Reliability and Long - term Leakage Risk

Reliability refers to the characteristic of a connection to maintain its seal under dynamic conditions such as vibration, thermal cycling, and pressure surges. Threaded connections are highly susceptible to thermal expansion; the differential heating of the pipeline and the valve can cause the interference fit of the threads to loosen, resulting in what is known as seepage. Additionally, in systems subject to mechanical vibration, such as those around pumps or compressors, threaded joints may loosen over time, necessitating regular inspection and tightening. Besides mechanical loosening, threaded joints are also significantly prone to crevice corrosion. The small crevices between the male and female threads create stagnant zones where oxygen depletion occurs. This forms a differential aeration cell, leading to local acidification and rapid metal loss from the threads themselves. This corrosion is internal, unlike the flange faces which can be inspected, and can lead to sudden seizure or structural leakage that cannot be repaired without cutting the pipeline.

Flange connections, on the other hand, offer better long - term reliability due to the resilience of the gasket and the tension of the bolts. A correctly installed flange connection causes the bolts to act like springs, ensuring continuous pressure on the gasket for optimal performance, even during temperature variations. Moreover, flange connections are less prone to crevice corrosion compared to the tight and stagnant areas in the thread grooves. In critical service applications involving hazardous or expensive fluids, the redundancy and stability of flange connections are key risk - mitigation measures. However, the lifespan of flange seals is not indefinite. Over time, especially under high - temperature conditions, the resilience of the gasket material weakens, reducing the sealing force. To overcome this, engineers should select high - quality gaskets with low - relaxation properties and ensure accurate bolt - joint torque, as a slight decrease in compressive stress can compromise the fluid boundary.

Installation Speed and Maintenance Ease

The trade - off between installation and maintenance is a classic tug - of - war between short - term labor costs and long - term operational costs. True, threaded connections are easier to install in a new - build environment; technicians can easily apply sealant and tighten the valve without the need for complex alignment and a large number of fasteners. This makes threaded valves attractive for small - commercial hot and cold water piping systems and HVAC systems, where initial capital expenditure is a major factor.

However, when maintenance is taken into account, the equation changes significantly. Threaded valves are screwed into the pipeline for operation. If a threaded valve is installed in the middle of a pipeline, it often requires the disassembly of a large section of the pipeline or the use of a union joint, creating another potential leakage point. Flanged valves, in contrast, offer unparalleled ease of maintenance. Technicians can lift the valve vertically out of the pipeline for repair or replacement without affecting the adjacent pipes when removing the bolts. In high - throughput industrial plants where downtime costs thousands of dollars per hour, the maintenance efficiency of flange connections far outweighs the increase in material costs.

At a Glance: Pros and Cons Comparison Table

Strategic Selection: Which Connection is Right for Your Application?

When choosing a valve connection, a rigorous analysis of environmental constraints and fluid characteristics is essential. Different industries in the industrial environment have varying requirements for mechanical performance due to the nature of their businesses:

• Water Treatment and Desalination: Due to the large pipeline diameters, flange connections are common for handling and desalinating large volumes of ambient - temperature fluids at moderate pressures.

• Laboratories and Chemical Batching: Threaded connections are a rational small - space choice for skids where pipelines are typically 1/2 - inch stainless - steel pipes and the routing is often complex.

• Petrochemical and Oil & Gas: Due to the volatility and toxicity of the media, a zero - leakage philosophy is required. In such cases, safety regulations mandate the use of flanges (either Raised Face (RF) or Ring - Type Joint (RTJ) types) in any service involving flammable hydrocarbons.

• HVAC and Commercial Building Services: Threaded joints are economical in small - bore branch lines, but in centralized plant rooms, chillers, and high - rise headers, flange connections are required to control large static heads and pump - induced vibrations.

• Power Generation: In high - pressure feed - water cycles and steam lines, the thermal cycling strength of flange joints cannot be compromised. The bolt array provides high mechanical integrity, which threaded joints cannot withstand under severe thermo - dynamic stress.

• Industrial Steam and Maintenance: Flanges used in high - temperature applications require stability to avoid seepage as temperatures rise. Additionally, in systems that require regular cleaning or internal access, flange connections offer the modular access that threaded systems cannot provide.

Beyond Connections: Optimizing Valve Performance with MTD Actuator Valve

While the choice of connection type sets the mechanical baseline for a pipeline system, with the increasing demands for operational efficiency and safety, there is often a need to upgrade manual supervision to automated flow control. Integrating actuators, whether pneumatic or electric, can transform a static valve into a dynamic component within a larger intelligent network. However, this transformation intensifies the physical stress on the connection; the continuous torque, rapid cycling, and vibration inherent in automation require the connection to withstand these forces without damage. At this intersection of mechanical integrity and digital precision, the choice of manufacturer is as crucial as the choice of the connection itself.

As a leading provider of electric and pneumatic valves, MTD Actuator Valve recognizes that the interface between the valve body and the pipeline is the structural cornerstone of automation. For the global process industries, ranging from desalination and wastewater treatment to renewable energy and pharmaceuticals, MTD Actuator Valve offers more than just hardware; we provide an intelligent, integrated fluid - control ecosystem.

Our engineering philosophy is based on a rigorous 8 - dimensional analysis framework. Unlike general suppliers, we evaluate each project through media, temperature, pressure, connection standards, control modes, material requirements, and industry - specific nuances. This comprehensive approach ensures that our valves, which are certified by CE, RoHS, SIL, and FDA, offer the precision and lifespan required in high - risk environments. By synchronizing precise actuation with the mechanical stability of optimized connections, MTD Actuator Valve eliminates the risk of deviations caused by vibration and torque. Collaborating with our professional technical team ensures that the intelligence of your system is matched with a firm mechanical foundation.

Pro Tips: Checklist Before Placing an Order

To ensure a successful procurement process, we recommend checking the following technical specifications before finalizing your valve selection:

• Confirm Thread Standards: Are you using NPT (tapered) or BSPP (parallel) standards? Mixing them will immediately lead to failure.

• Check Flange Ratings: Ensure that the flange class (e.g., Class 150 vs Class 300) matches the pump's discharge pressure and the current pipeline specifications.

• Gasket and Material Compatibility: Besides the chemical resistance of the gasket, if the valve and pipeline materials are different, there is a potential for electrochemical corrosion. Flanges are the only option for protection using insulating kits.

• Consider Pressure Relaxation and Galling: Flanges in high - temperature conditions should use low - relaxation gaskets. For stainless - steel threads, anti - galling measures must be taken to avoid irreversible mechanical seizure (galling).

• Space and Tool Clearance: Provide sufficient "swing space" for pipe wrenches or "bolt clearance" for hydraulic torque wrenches, especially in modular skid designs.

• Automation and Structural Support: Have you considered the static and dynamic weight of the valve during actuation? Flanges provide a robust skeletal foundation for supporting heavy electric or pneumatic actuators without putting stress on the pipeline.

• Compliance and Traceability: Ensure that the connection requirements meet the certifications required for the project (e.g., CE, SIL, or FDA) and obtain Material Test Reports (MTR) for all pressure - containing components.

Conclusion

The comparative analysis of flange and threaded valve connections reveals that neither connection type is universally superior or inferior. Instead, each is an optimized solution for specific boundary conditions. In small - bore, low - pressure applications where quick assembly is paramount, threaded connections offer an economical, elegant, and space - saving utility. However, as the complexity and scale of the system increase, the mechanical and operational advantages of flange connections, such as pressure control, seal lifespan, and ease of maintenance, become invaluable in chemical processing environments. For those looking to develop high - performance automated systems, the structural stability of flange connections provides the necessary foundation for precision engineering. Ultimately, the most effective way to safeguard the safety and efficiency of industrial fluid control is to make a well - informed choice of connection.
