Gate valves are indispensable components in numerous industries, serving as mechanical conductors that skillfully direct fluid flow. Unlike globe valves, which operate on an “all - or - nothing” principle, gate valves thrive in the realm of modulation. Their internal workings involve a disc (comparable to a plug or ball) that moves perpendicular to a fixed seat within the valve body. This valve can gradually close the flow passage, providing operators with a means to control the velocity of liquids or gases passing through the system. From the steam swirls in power plants to the constant oil flow in refineries and the regulated water flow in sewage treatment plants, gate valves symbolize engineered control over the industrial lifeline. The applications of this valve are highly versatile.
Before considering various designs and materials, understanding the operating environment of the gate valve is crucial. The system's pressure and temperature are of utmost importance, as they determine the conditions in which the valve must operate effectively and safely. Just as a mountaineer requires equipment suitable for the altitude and climate of a climb, the design of a gate valve must be able to withstand the forces and thermal loads it will encounter during use. Neglecting these fundamental parameters can lead to disasters, affecting both equipment and personnel. The selected valve material and its pressure rating should exceed the expected maximum high pressure, and the temperature range of the valve components, including seals and packings, should match the entire operating temperature range. Thus, it is essential to know the expected pressure of the fluid.
Another significant criterion that depends on the fluid flow through the gate valve is material compatibility. Consider pouring acid into a container made of chalk; the outcome is evident. The internal parts of the valve must be able to withstand the corrosive or erosive nature of the medium. Choosing the wrong material can result in corrosion, leakage, and ultimately, valve failure. For instance, if the application involves aggressive chemicals, the construction material might be stainless steel or Hastelloy, while for water systems, carbon steel or brass may suffice. Certain material considerations are also important for fuel systems. Therefore, understanding the chemical and physical properties of the medium is necessary to select the most suitable and corrosion - resistant gate valve.
The primary advantage of gate valves is their ability to control fluid flow effectively. While gate valves are not ideal for on/off services, they are perfect for throttling, as they can efficiently control the speed and volume of fluid. However, the general flow control requirements in the application will determine the type of valve to be used. Factors to consider include the degree of control required, the possibility of cavitation (formation of bubbles in the liquid due to pressure drop) and flashing (rapid vaporization of the liquid as it passes through the valve). Gate valves come in various designs, especially regarding the disc, which is the part that regulates fluid flow. The good throttling ability of gate valves makes them suitable for precise flow control, even though noise may be generated due to turbulence. Thus, understanding these requirements is crucial for selecting a valve that is less prone to wear or damage.
Selecting the size of a gate valve is a critical factor, which depends on the pipeline size and flow rate. If the valve is too small, there will be significant pressure drop and flow restriction; if it is too large, it will be unstable and costly. Usually, the required flow coefficient and the allowable pressure drop across the valve are used in calculations to determine the optimal valve size. Besides size, the connection type is also crucial for easy integration with the building's pipeline system. The main connection types for gate valves are flanged, threaded, and welded connections. The connection type depends on the pipeline material, the operating conditions of the pipeline, and its maintenance. The flow coefficient is a key factor in making this decision.

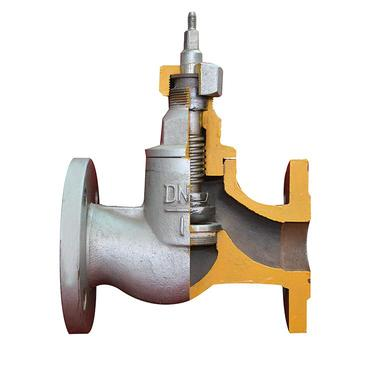

The straight - through globe valve features a simple straight - through design, where the fluid enters and exits horizontally. This is because flow regulation is achieved through the movement of the disc, which is connected perpendicularly to the valve stem against the seat, creating an S - shaped path. While this design is very common and effective, the fluid has to make two turns, resulting in a higher pressure drop compared to other designs. The fluid flow direction is typically straight - through, so this valve is suitable for general service applications where precise flow control is not the most critical, but reliable regulation is important, such as in water supply systems, steam systems, and other industrial processes.
The angle globe valve has its inlet and outlet perpendicular to each other, acting as both a valve and a pipeline elbow. It is similar to the straight - through type, but the disc is oriented perpendicular to the water flow. One of the main advantages of this design is that it requires fewer pipe fittings, making installation simpler and potentially less costly. Angle globe valves are best suited for systems where the flow direction needs to be changed by 90 degrees, such as the feed line to a tank or the discharge line of a pump, where the valve can be easily accessed for operation and maintenance.

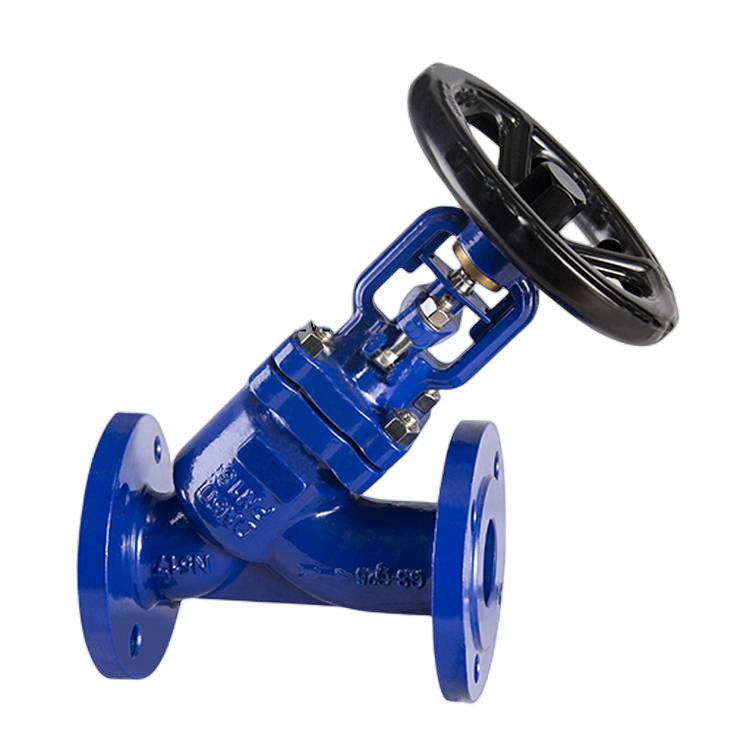

The Y - type globe valve is characterized by the position of its valve stem and bonnet, which is approximately 45 degrees to the main flow direction. Compared to the straight - through type, this design offers a more efficient flow path, resulting in a lower pressure drop. The operation remains the same, with the disc moving along the inclined valve stem to regulate the flow to the seat. Due to reduced turbulence and energy loss, Y - type globe valves have particular advantages in high - pressure and high - temperature services. They can also be used in applications where a lower pressure drop in the system is desired, such as in certain steam and condensate systems.
The manual globe control valve is the most basic type of operation, relying on an operator to turn a handwheel or lever, which in turn raises or lowers the valve stem and disc. These valves are simple in design and cost - effective, providing reliable flow regulation for applications that do not require remote control or automatic adjustment. Their advantage lies in their ease of use and maintenance, making them suitable for applications where adjustments are not frequently made, or where a local direct - control mechanism suffices, such as isolation tasks or occasional flow regulation in less critical processes. The required operating speed is determined by manual input.

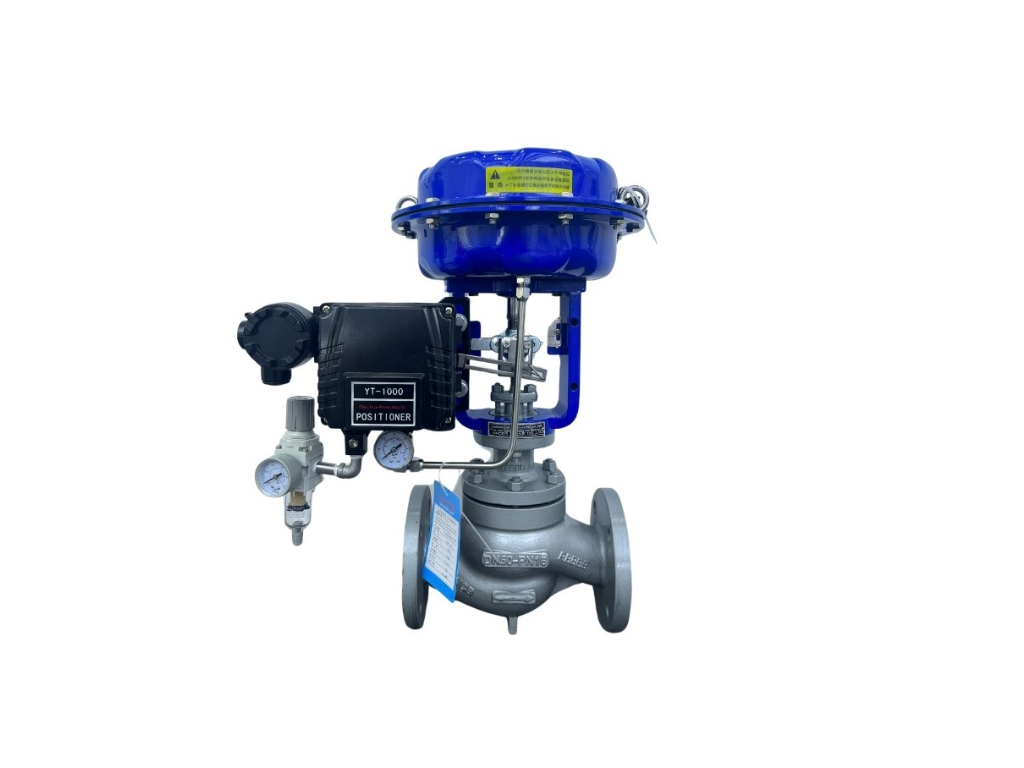

The pneumatic globe control valve utilizes compressed air to actuate the valve. The air pressure drives a piston or diaphragm connected to the valve stem, enabling rapid and precise positioning of the disc. One of the main advantages of pneumatic actuators is their fast response speed, making these valves ideal for automated control systems that require quick adjustments based on process variables. They are commonly found in applications that involve frequent throttling or on/off cycling, often integrated with PID controllers in chemical processing plants, refineries, and other automated industrial environments. This is a suitable actuation method for many dynamic processes.
The electric globe control valve uses an electric motor to provide the force needed to move the valve stem and disc. These actuators can offer precise and repeatable positioning, making them suitable for applications that demand accurate flow control. Electric actuators can be equipped with various control functions, including feedback signals and communication protocols, enabling precise integration with Distributed Control Systems (DCS) as well as Supervisory Control and Data Acquisition systems (SCADA). They are commonly used in water supply systems, power generation facilities, and other industries where accurate, often automated, flow regulation is crucial over an extended period, ensuring reliable performance and optimal operation.
Among gate valves, flanged valves are widely used, especially in large - diameter pipelines and high - pressure applications. Flanged means that both ends of the valve have protruding bosses, called flanges, which are drilled with holes. These flanges are then installed and tightened to the corresponding flanges at the ends of the pipeline using bolts and nuts. This connection method provides a robust and reliable joint that can easily withstand the forces generated by fluid pressure. Sometimes, to enhance the sealing ability and prevent leakage, a gasket, which may contain a metal ring, is installed between the two flanges before tightening the bolts. The metal insert enhances the mechanical properties of the gasket, making it more resistant to high pressures and leakage.
The threaded globe valve is another type of pipeline connection, distinct from others; it is characterized by having threaded ends. These threaded ends are directly screwed into the threaded ends of the connecting pipeline. This connection method is typically used for valves with small nominal sizes and relatively low pressure ratings. Due to the nature of threaded connections, it is less suitable for very large pipelines or extremely high pressures, as the threaded connection may not provide the required strength or sealing ability. They are easy to install, requiring only basic tools like wrenches to screw the valve into place. This easy installation usually results in a lower initial cost compared to flanged or welded connections, especially for smaller systems.
In terms of strength and leakage prevention, the welded globe valve is the most secure pipeline connection. In this connection method, the ends of the globe valve are directly welded to the ends of the connecting pipeline. This makes the valve a permanent and integral part of the pipeline, resulting in a very strong connection. Thus, welded connections are the best choice for applications involving high pressures and high temperatures, where a permanent and secure connection is required to ensure a tight fit and no leakage. However, welded connections also have some limitations to consider. Initially, welded connections are usually more expensive than flanged or threaded connections, as welding is a specialized activity that requires professional welders to join the pipeline connections according to industry standards.
Feature | Gate Valve | Ball Valve | Gate Valve (repeated in table for clarity) | Butterfly Valve |
|---|---|---|---|---|
Main Function | Throttling and flow regulation | On/off control, with some throttling capabilities in specific designs | On/off control | Throttling and flow regulation |
Flow Restriction | Tortuous flow path leads to increased pressure drop | Lower pressure drop when fully open | Very low pressure drop when fully open | Moderate pressure drop |
Throttling Ability | Excellent, designed for frequent throttling | Limited throttling ability, seat wear may occur when partially open | Poor throttling ability, designed for fully open or fully closed operation | Good throttling ability, especially in larger sizes |
Cost | Generally more expensive than ball or butterfly valves of the same size | Usually cheaper than gate valves of the same size | Usually cheaper than gate valves of the same size | Usually less expensive than gate valves in larger sizes |
Applications | High - pressure, high - temperature, frequent operation, precise flow control | On/off services, quick startup, slurries (depending on design) | On/off services, minimum flow obstruction when fully open | Large - diameter, medium - to - low - pressure applications, slurries (depending on design) |
The history of gate valves dates back to the Industrial Revolution when the need for flow control was recognized. The initial models were crude and simple, made of materials such as cast iron. With the advancement of metallurgy, new and better materials, such as different grades of alloy steel, were used to manufacture gate valves to withstand increasingly harsh operating conditions. Technological progress aimed to improve sealing, reduce wear, and enhance control precision. The advent of pneumatic and electric actuators marked a significant turning point, enabling remote operation and integration into automated process control systems.
In recent years, advancements in gate valve technology have mainly focused on improving existing designs and integrating smart components. For pneumatic gate valves, the types of actuators used have been improved, becoming more compact, efficient, and responsive. Similarly, electric actuators have made progress in motor technology, offering higher precision and lower energy consumption. Digital positioners and communication protocols can be used to provide sophisticated control and diagnostic functions. Regarding the future development of gate valve technology, intelligent and network - connected gate valves are expected to be the future trend. We can anticipate further improvements in materials that can withstand the harshest environments, and the integration of sensors and data analysis will contribute to maintenance and efficiency enhancement.
MTD Actuator Valve is a company specializing in flow control, more specifically, in actuated gate valves. Recognizing the importance of these valves in various processes, MTD Actuator Valve has designed its electric and pneumatic gate valves to be high - performance and reliable products. This is evident in the selection of high - quality materials and the various tests conducted on the products.
MTD Actuator Valve's electric gate valves are designed for precise positioning and compatibility with current control systems. These valves are equipped with robust actuators, enabling them to perform exceptionally well in harsh conditions. Similarly, MTD Actuator Valve's pneumatic gate valves operate quickly and smoothly, making them suitable for applications that require rapid action. Both its electric and pneumatic actuated gate valves are designed for long - term use with low wear and tear, eliminating the need for frequent replacements. Therefore, MTD Actuator Valve's electric gate valves are highly suitable for industries that require high - performance and reliable flow - control equipment.
For long - term and efficient use of the valve, the installation of a gate valve is crucial. It must be ensured that the valve meets the required pressure rating and is compatible with the process fluid. The pipeline should be free of any debris or foreign objects that could damage the internal parts of the valve. The correct position of the valve in the pipeline is essential to avoid putting stress on the valve body and the connecting pipeline. Sufficient reinforcement should be provided to avoid applying pressure or load to the valve. It is recommended to always strictly follow the manufacturer's instructions when installing the product.
Maintenance is the process of inspecting the gate valve and taking measures to prevent future failures. Some of the checks to be carried out during routine inspections include looking for any signs of leakage around the bonnet, packing, or any joints of the valve body. The valve body and actuator should also be observed for signs of wear or corrosion. It is advisable to lubricate the valve stem and actuator components as per the manufacturer's guidance to avoid sticking. The packing used to seal the valve stem may need occasional adjustment or replacement to prevent leakage. If any issues are detected during the valve's operation, such as difficulty in opening or closing the valve or incomplete closure, troubleshooting measures should be taken to determine the cause of the problem. Solving problems early can prevent them from worsening and affecting the valve's durability.
In conclusion, gate valves remain a valuable and widely used product in many industries where precise control of fluid flow is crucial. With their good throttling ability and relatively tight shut - off capability, they are extensively used in power generation, chemical processing, water supply, and many other applications. To select the right valve for a specific application, it is important to understand the various types of gate valves. With the advancement of flow - control technology, the use of pneumatic and electric gate valves has become a strategic approach for many industries to improve efficiency and automation. Therefore, partnering with a reliable supplier like MTD Actuator Valve is one of the best decisions you can make.
