The Definitive Guide to Motorized Valve Selection: Engineering Precision for Industrial Systems

Choosing the correct motorized valve is a critical architectural decision that dictates the efficiency, safety, and longevity of automated fluid networks. Motorized valves—specifically motorized ball valves and motorized butterfly valves—serve as the mechanical execution layer in modern industrial automation.

This technical brief provides the foundational framework required to evaluate, specify, and integrate high-performance motorized valves into complex industrial ecosystems, positioning your infrastructure for maximum uptime and precise flow management.

1. The Anatomy of Critical Performance: A 3:00 AM High-Risk Scenario

In industrial automation, hardware is the ultimate arbiter of system integrity. Consider a continuous chemical processing plant operating at 3:00 AM. A sudden upstream pressure spike causes a critical thermal excursion. In this micro-moment, a generic valve suffering from high control latency or torque degradation under pressure will fail to seat fully, resulting in a runaway reaction.

By contrast, a MTD Actuator Valve Industry motorized valve reacts within milliseconds. Utilizing high-torque, precision-aligned actuators, the system isolates the line instantly. This rapid intervention prevents a catastrophic $50,000 system blowout, protects sensitive downstream instrumentation, and eliminates catastrophic environmental remediation costs.

2. Comprehensive Application Mapping

Before choosing an asset, engineers must map the precise fluid dynamics and environmental stresses of the target operating envelope.

Fluid Dynamics and Media Behavior

• Media Typology: Refined gases, high-viscosity liquids, and abrasive slurries all exhibit unique shear behaviors. Abrasive fluids require hardened flows paths, whereas gaseous media demand zero-leakage, bubble-tight sealing.

• Volumetric Flow Profiles: Engineers must calculate the precise flow coefficient ($Cv$) to balance system pressure drop against fluid velocity, preventing internal cavitation and flashing.

• Ambient and Process Microclimates: High-humidity, corrosive chemical vapors, and extreme thermal cycling necessitate specialized external coatings and internal sealing elements.

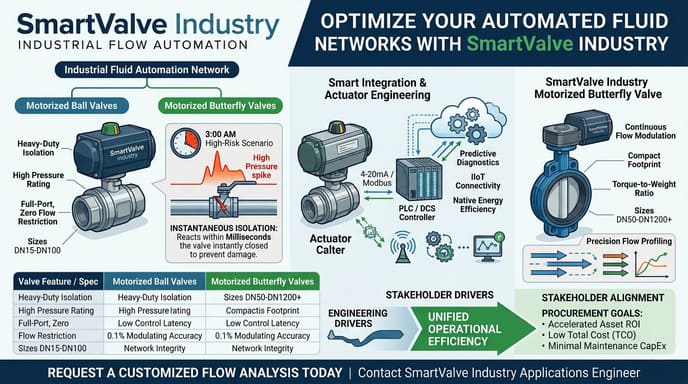

Architectural Breakdown: Valve Topologies

Different automated systems require distinct valve configurations to execute control loops effectively.

                  [Industrial Fluid Automation Network]
                                    |
         +--------------------------+--------------------------+
         |                                                     |
         v                                                     v
[Motorized Ball Valves]                             [Motorized Butterfly Valves]
  ├── On/Off Isolation                                ├── Modulating Flow Control
  ├── Zero Pressure Drop                              ├── Compact Footprint
  └── High-Pressure Rating                            └── Large-Diameter Lines

• Motorized Ball Valves: Engineered with a rotating spherical disc, these valves provide an unobstructed flow path when open, yielding minimal pressure drop. They excel in high-pressure, positive shut-off applications across water treatment, HVAC sub-stations, and chemical transport lines.

• Motorized Butterfly Valves: Utilizing a rotating disc centered within the pipe axis, these units offer an exceptional torque-to-weight ratio in large-diameter piping networks. They provide superior throttle modulation and are highly effective in water distribution, ventilation systems, and low-pressure bulk processing.

3. Engineering Specifications and Material Matrix

Material selection dictates the wear degradation curve and chemical compatibility of the valve assembly. Specifying the wrong substrate leads to premature stress corrosion cracking or galvanic degradation.

Core Metallurgical and Polymer Options

• Stainless Steel (Grade 316/316L): Offers premier resistance to pitting and crevice corrosion in highly acidic or saline environments.

• Carbon Steel (WCB/A105): Provides excellent mechanical strength and thermal resilience for high-pressure utility lines, though it requires external protective coatings.

• Engineered Thermoplastics (PVC/CPVC): Highly cost-effective and inert to aggressive chemical chlorination, suited for low-temperature utility applications.

• Industrial Bronze: The traditional standard for low-pressure potable water and marine cooling systems due to its natural biofouling resistance.

4. Actuator Engineering and Smart Integration

The actuator serves as the electronic brain of the motorized valve. Choosing the correct actuation profile ensures seamless integration with Distributed Control Systems (DCS) and Programmable Logic Controllers (PLC).

[PLC / DCS Controller] ---> (4-20mA / Modbus Signal) ---> [MTD Actuator Valve  Actuator] ---> [Real-Time Flow Correction]

Power and Control Infrastructure

• Voltage Standards: Actuators must be matched to site power topologies, including DC24V for localized instrument loops, or AC110V, AC220V, and AC380V for heavy industrial plant infrastructure.

• Control Protocols: * On/Off Control: Simple multi-wire configurations for basic open/close sequences.

  • Modulating Control: Employs advanced 4-20mA or 0-10V analog positioning, adjusting the valve orientation dynamically based on real-time sensor feedback loops.

• Torque Engineering: The actuator must be specified with a minimum 30% safety margin above the valve’s breakaway torque under maximum differential pressure to ensure reliable actuation.

Next-Generation Smart Features

Modern industrial networks leverage MTD Actuator Valve Industry intelligent actuators to unlock unprecedented visibility:

• Predictive Diagnostics: Embedded sensors monitor internal motor temperature, current draw, and duty cycles, generating predictive alerts before mechanical fatigue causes unexpected downtime.

• Edge Connectivity: Direct integration with Industrial Internet of Things (IIoT) protocols (e.g., Modbus TCP, Profinet) enables cloud-based asset tracking.

• Native Energy Efficiency: Low-power holding circuits minimize power consumption when stationary, driving down auxiliary power costs.

5. Stakeholder Alignment: Balancing Engineering and Procurement Logic

A successful hardware implementation requires bridging the gap between technical requirements and financial metrics.

       [ENGINEERING DRIVERS]                   [PROCUREMENT GOALS]
   ┌───────────────────────────┐           ┌───────────────────────────┐
   │ • Low Control Latency     │           │ • Accelerated Asset ROI   │
   │ • High Modulating Accuracy│  ◄═════►  │ • Low Total Cost (TCO)    │
   │ • IIoT Network Integrity  │           │ • Minimal Maintenance CapEx│
   └───────────────────────────┘           └───────────────────────────┘
                                 \       /
                                  v     v
                     [SmartValve Industry Lifecycle Optimization]

The Engineering Paradigm: Performance Integrity

Engineers require equipment that eliminates system vulnerabilities. They focus on 0.1% modulating accuracy to eliminate line hunting, seamless network communication profiles to prevent protocol translation errors, and built-in fail-safe options (such as mechanical spring returns or supercapacitor backups) that guarantee a safe asset state during a total facility power loss.

The Procurement Paradigm: Total Cost of Ownership (TCO)

Procurement managers must focus on long-term capital efficiency rather than initial purchase price. Selecting cheap, uncertified valves results in frequent line interventions, replacement parts costs, and lost production revenue.

A MTD Actuator Valve Industry installation delivers a highly optimized lifecycle return. Delivering up to 15% total energy savings via precision flow profiling and advanced low-draw electronics, the valve rapidly offsets its initial acquisition cost. Furthermore, a guaranteed 100,000-cycle baseline longevity extends depreciation timelines, drastically improving the operation's bottom-line profitability.

6. Regulatory Compliance and Mechanical Execution

Industrial installations demand strict adherence to global safety and quality certifications to protect life and property.

• International Benchmarks: Ensure all automated assemblies comply with ISO 9001 (Quality Assurance), API 609 / API 6D (Design Standards), ANSI (Flange Dimensions), and CE/UL (Electrical Safety and Actuator Shielding).

• Mechanical Connection Styles: Choose robust flanged connections for high-pressure large-bore pipes, space-saving wafer/lug butterfly configurations, or threaded/welded ends for high-integrity small-bore lines.

• Global Ecosystem Support: Partner with manufacturers that guarantee rapid availability of replacement parts, comprehensive mill test reports (MTRs), and accessible expert engineering consultation.

Elevate Your Process Control with MTD Actuator Valve Industry

Optimal fluid control requires high-performance hardware engineered to survive under pressure. MTD Actuator Valve Industry designs and manufactures world-class motorized ball and butterfly valves that deliver exceptional precision, structural longevity, and seamless automation integration for global processing plants.

Stop compromising on system reliability. Protect your downstream assets, optimize your facility's energy utilization, and secure an unassailable return on your automation investment.

Contact a MTD Actuator Valve Industry Applications Engineer Today to request a customized flow analysis and hardware quotation.
