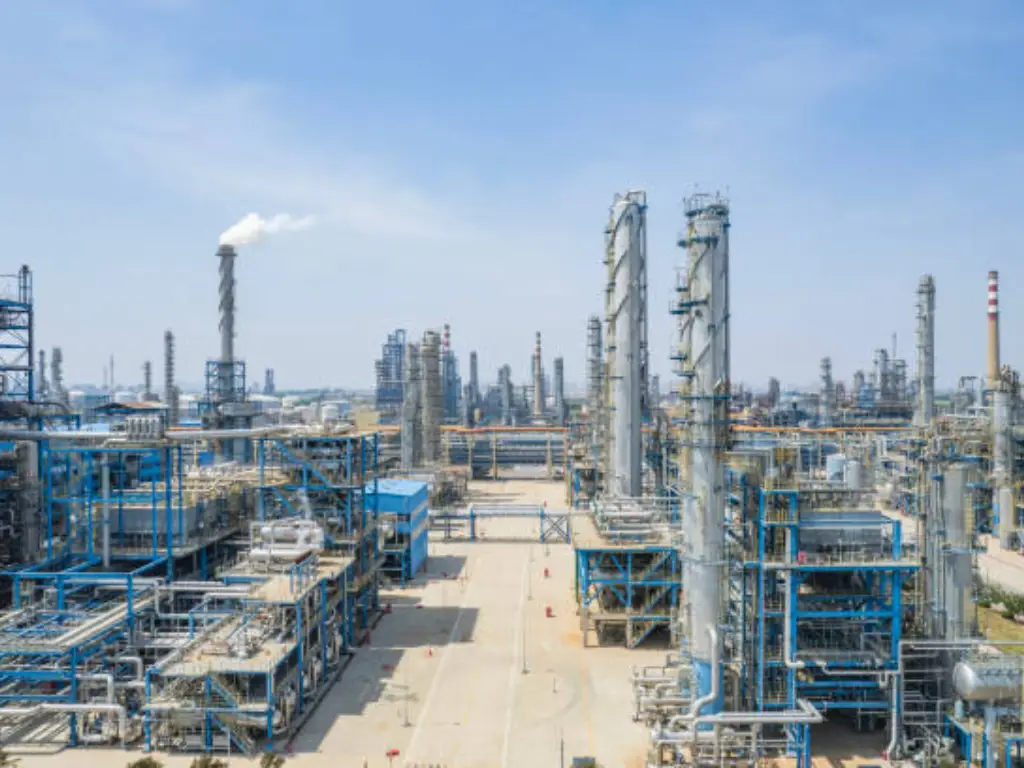

Chemical plant automation involves the deployment of technologies and systems within a chemical production facility to either assist or fully replace human intervention. The overarching goal is to monitor, control, and optimize chemical production processes. This encompasses a wide spectrum of activities, from basic on/off control mechanisms to advanced process optimization and safety interlock systems. The accurate regulation of key process parameters such as temperature, pressure, flow, and level is a fundamental process objective. Achieving this results in consistent product quality, enhanced production efficiency, reduced operating costs, and heightened safety for both personnel and equipment. Replacing manual processes and minimizing manual intervention are central to chemical plant automation. The automation systems serve as the “nervous system” and “brain” of the plant, constantly monitoring internal changes in real - time and issuing commands to adjust production levels.
One of the most significant advantages of automation in chemical plants is the substantial improvement in operational safety. Specialized automated systems can rapidly transition the plant to a safe state during hazardous situations, thereby preventing safety incidents and reducing accident risks. For example, SIL (Safety Integrity Level) certified automated valves can automatically shut off or regulate fluid flow during emergencies. These valves play a critical role in safety interlock systems, acting as a safeguard against potential disasters. Consider a scenario where a chemical reaction starts to go out of control due to a sudden increase in pressure. An SIL - certified automated valve, as part of the safety interlock system, can immediately detect this abnormal condition and shut off the flow of reactants, preventing a potentially catastrophic explosion.
Automation significantly enhances the effectiveness and efficiency of production processes, leading to greater uniformity. Automated systems can respond to changes more frequently and accurately than human operators. This minimizes human - induced variations in production and heuristically optimizes reaction conditions. As a result, production output increases, and the overall yield improves. Precise control of chemical reactions and the manufacturing process also leads to enhanced product quality uniformity and a reduced rejection rate. In a pharmaceutical manufacturing process, for instance, automation can precisely control the temperature, pressure, and flow of raw materials during the synthesis of a drug. This ensures that each batch of the drug has the exact same chemical composition, meeting strict quality standards and reducing the likelihood of product recalls.
Automated systems have a direct and positive impact on production costs. As automation increases, manual labor is replaced by machinery, leading to a decrease in labor expenditure. Additionally, optimal process control can reduce the consumption of raw materials and energy, as well as lower product waste rates. This not only results in cost savings but also contributes to energy savings. Effective automation also minimizes excessive wear and tear on machines and equipment, extending their lifespan and reducing maintenance costs. All these factors combined boost operational efficiency, providing a significant competitive edge. In a large - scale chemical production plant, automated systems can precisely measure and dispense raw materials, reducing waste. They can also adjust the energy input based on the real - time requirements of the production process, leading to substantial energy savings. Moreover, by minimizing the wear on equipment, the plant can avoid costly breakdowns and replacement parts, further reducing operational costs.
Automation endows chemical plants with increased flexibility and responsiveness. When market demands shift, automation systems can quickly adapt production schedules and process parameters, enabling the production of multiple different products in small batches. Remote monitoring and diagnostic features also enable faster problem - solving, reducing downtime. For example, if a particular chemical product experiences a sudden increase in demand, the automation system can rapidly adjust the production process to prioritize its manufacture. At the same time, if a piece of equipment starts to show signs of malfunction, the remote monitoring system can detect it early, and technicians can diagnose and fix the problem remotely, minimizing the impact on production.
Automating a chemical plant is a complex undertaking that relies on the synergy of several core technologies. These technologies form the framework of the automation system, enabling the monitoring, reasoning, and precise control of production processes. Understanding how to integrate and utilize these core technologies is essential for building and enhancing automation systems.
Technology Type | Acronym | Main Function | Role in Chemical Plants |
|---|---|---|---|
Distributed Control System | DCS | Distributed control, central management, process monitoring, alarm handling | Controls large - scale continuous or batch processes, providing plant - wide coordinated control. It ensures that all aspects of the production process, from raw material intake to product output, are managed in a synchronized manner. |
Programmable Logic Controller | PLC | Logic control, sequence control, data acquisition | Controls individual equipment or subsystems. It is often used for interlocking and startup/shutdown sequences. For example, in a chemical reactor startup, the PLC can ensure that all safety systems are in place and that the equipment is initialized in the correct order. |
Supervisory Control and Data Acquisition | SCADA | Remote monitoring, data acquisition, data storage, report generation | Monitors scattered equipment and systems, offering an overall operational view. It supports remote operation and data analysis, allowing operators to oversee the plant's operations from a central location and make informed decisions based on the collected data. |
Safety Instrumented System | SIS | Separate from the basic process control system, detects dangerous conditions and performs safety functions | Brings the process to a safe state in emergencies, reducing risk and complying with functional safety standards. In case of a fire or a chemical leak, the SIS can quickly activate safety measures such as shutting down equipment and releasing fire - suppressing agents. |
Fieldbus and Industrial Ethernet | Fieldbus/Industrial Ethernet | Connects field devices (sensors, actuators) with control systems for data transfer and communication | Simplifies wiring, improves data transfer efficiency and reliability, and supports distributed control. This technology enables seamless communication between different components of the automation system, ensuring that data from sensors reaches the control systems accurately and in a timely manner. |
Sensors and Transmitters | Sensors & Transmitters | Measure process parameters (temperature, pressure, flow, level, etc.) and convert analog signals to digital for transmission | Provide real - time process data, acting as the “eyes” of the automation system. They continuously monitor the state of the production process, allowing for timely adjustments. |
Actuators | Actuators | Receive control signals and drive final control elements (like valves, motors) to perform actions | Convert control system commands into physical actions, serving as the “hands and feet” of the automation system. For example, an actuator can open or close a valve based on the control signal received from the DCS or PLC. |
All these components work in harmony as a unified system, integrated through software and network frameworks. Data from sensors is transmitted via fieldbus or industrial ethernet to the DCS or PLC. The controller then processes this information using predefined logic and algorithms and adjusts field equipment, including key automated valves. Operators can monitor the plant status and make adjustments through the SCADA system, which offers a centralized overview. Meanwhile, SIS systems, separate from the core process control system, focus solely on ensuring maximum safety.
Automation is crucial for maintaining the flow, temperature, and pressure in reactors, distillation columns, heat exchangers, and other essential equipment. It continuously monitors and controls these processes to ensure smooth operations. In a distillation column, for example, automation can precisely control the temperature and flow rate to separate different chemical components effectively. This not only ensures the quality of the final products but also maximizes the efficiency of the separation process.
In the fine chemical and pharmaceutical sectors, automation systems are used for material addition, reaction interval timing, and temperature profile shaping. This tight control ensures batch - to - batch repeatability. In the production of a high - value pharmaceutical compound, the automation system can accurately measure and add the required raw materials at the right time and control the temperature profile throughout the reaction. This guarantees that each batch of the compound has the same chemical properties, meeting strict quality and regulatory requirements.
SIS systems play a vital role in detecting abnormal situations and automatically performing predefined safety actions such as pumping and valve closing to prevent situations from worsening. In a chemical plant where flammable gases are present, if a gas leak is detected, the SIS can immediately shut off the gas supply valves, activate ventilation systems, and trigger alarms to alert personnel.
Automation systems collect equipment utilization measurements. Analyzing this data enables the prediction of equipment malfunctions, allowing for planned servicing and minimizing reactive idle time. By continuously monitoring the operating conditions of equipment such as pumps and compressors, the automation system can detect early signs of wear and tear. This gives plant managers time to schedule maintenance before a breakdown occurs, reducing downtime and maintenance costs.
Utility control systems can multitask, overseeing not only critical processes but also less important ones like cooling water, electricity, and steam, optimizing operational costs. In a chemical plant, the energy management system can adjust the supply of cooling water based on the real - time temperature requirements of the production process. It can also manage the consumption of electricity and steam, ensuring that these resources are used efficiently.
Automation systems alert operators to abnormal situations. Smart alarm filtering helps operators respond promptly to critical issues, effectively managing production schedules and safely handling hazardous materials. When an abnormal condition is detected, such as a sudden increase in the concentration of a toxic chemical, the automation system can send an alarm to the operator. The smart alarm filtering system can prioritize the alarms based on their severity, ensuring that the operator addresses the most critical issues first.

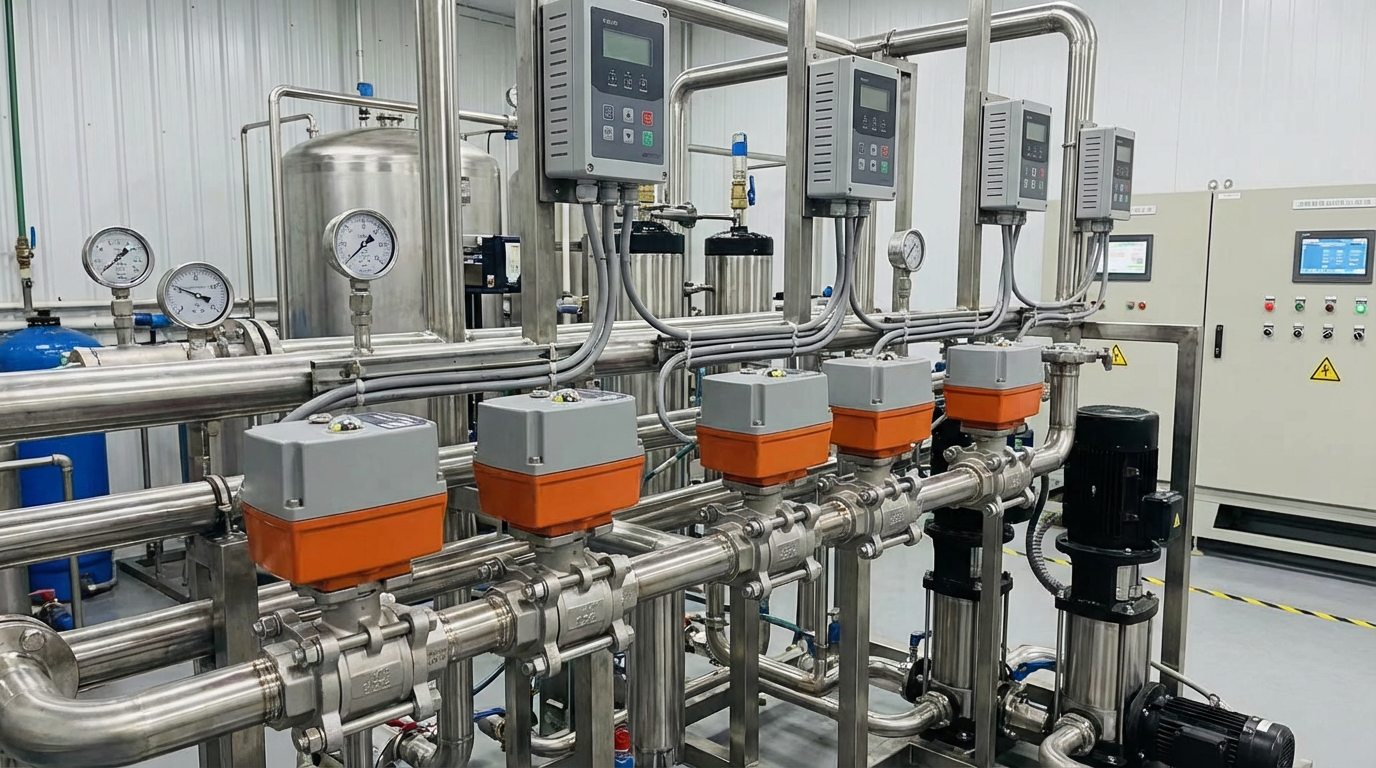

Valves are indispensable components for fluid flow control in any chemical automation system. They are the decisive factor for fluid flows, significantly influencing the accuracy and safety of the entire process. Even simple on/off actions require precise valve mechanics.
Automated valves are equipped with actuators, which can be pneumatic, electric, or hydraulic. The control system commands these actuators to modify the direction, rate, or pressure of the fluid. Control valves are particularly important as they can adjust fluid velocity equilibrium in response to changes in control signals, making them essential for closed - loop control. Safety or relief valves are crucial from a safety perspective, acting as the first line of defense by venting excess pressure when preset automatic thresholds are exceeded, safeguarding apparatus and piping.
The performance of valves is critical within any automation system. No matter how advanced the control system is, careless, slow, or inaccurate valves can render control ineffective and may even pose safety risks. Therefore, for a chemical plant's automation system to operate smoothly, precise automated valves that consider the medium, temperature, pressure, and process requirements are necessary. In a high - pressure chemical process, for example, a malfunctioning safety valve could lead to a dangerous buildup of pressure, potentially resulting in an explosion.
Integrating equipment and automation systems from different suppliers can be challenging due to their varying communication interfaces. Skilled system integration is required to ensure seamless information exchange between system components. Different DCS systems may use different communication protocols, and integrating them with sensors and actuators from other manufacturers can be complex. This requires a deep understanding of the technical specifications of each component and the ability to develop custom interfaces if necessary.
As automation systems become more closely connected to company networks, the threat of cybersecurity attacks increases. Strong defenses and contingency plans are needed to protect against control viruses, malware, and cyberattacks on control systems. A cyber - attack on a chemical plant's automation system could potentially disrupt production, compromise safety, and lead to environmental damage. To mitigate these risks, plants need to implement firewalls, intrusion detection systems, and regular security audits.
Automation integration transforms the workflows of operators and maintenance personnel. Staff need comprehensive training to operate, monitor, and maintain the systems, and organized multidisciplinary training should be provided. Operators need to understand how to use the new control interfaces, interpret data from the monitoring systems, and respond to alarms. Maintenance personnel need to be trained in troubleshooting and repairing the automated equipment. This may involve training in areas such as electrical engineering, software programming, and process control.
Automation projects typically require a high upfront financial investment. Ensuring system performance and reliability while controlling costs and accurately assessing return on investment is a major concern for decision - makers. The cost of purchasing and installing automation equipment, as well as the cost of training personnel, can be substantial. Decision - makers need to carefully evaluate the potential benefits of automation, such as increased production efficiency, reduced costs, and improved safety, against the initial investment and ongoing maintenance costs.
Like any other systems, automation systems require effective management in terms of skills and tools. Implementing maintenance strategies and maintaining critical spare parts inventories ensures easy retrieval and replacement of non - functional parts within a defined timeline, fostering continuous and consistent operation and reducing system faults. In a chemical plant, if a critical valve actuator fails, having a spare part readily available and trained personnel to replace it quickly can minimize downtime. Regular maintenance of the automation systems, including software updates and hardware inspections, is also essential to prevent system failures.
More sensors and smart devices will be deployed to collect large volumes of production data. Big data analytics will be used to extract valuable insights from this data, which can be applied to process optimization, failure prediction, and decision - making. In a chemical plant, IIoT - enabled sensors can collect data on everything from equipment performance to environmental conditions. Big data analytics can then analyze this data to identify patterns and trends, allowing plant managers to optimize production processes, predict equipment failures, and make informed decisions about resource allocation.
The use of algorithms will improve control optimization, equipment performance prediction, anomaly and event detection, intelligent alarm management, and overall system performance, enabling systems to learn and adapt their behaviors. AI - based systems can analyze real - time data from the production process and adjust control parameters to optimize production efficiency. Machine learning algorithms can be used to predict equipment failures based on historical data, allowing for proactive maintenance.
Constructing a virtual plant model that can simulate the plant's operation using real - time data. This model can optimize processes, assist in operator training, and evaluate risks, thereby predicting and optimizing operations. Digital transformation is driving the adoption of this technology. A digital twin of a chemical plant can be used to test new production scenarios, train operators in a virtual environment, and identify potential risks before they occur in the real plant.
Cloud computing offers robust data processing and storage capabilities, while edge computing brings device processing and control closer to the shop floor. This increases response time while enhancing data security. Cloud computing can be used to store and analyze large amounts of production data, while edge computing can be used to perform real - time control tasks at the equipment level. This combination can improve the overall performance and security of the automation system.
AR/VR technology will be used for field maintenance, guiding operations, and training staff, which will improve efficiency and safety. In field maintenance, an AR - enabled device can display instructions and diagrams directly on the equipment, making it easier for maintenance personnel to perform repairs. VR can be used to train operators in a realistic virtual environment, reducing the risk of accidents during training.
Selecting the correct automation solutions is crucial for a chemical plant. Having a reliable partner who truly provides value is of utmost importance. MTD Actuator Valve has been at the forefront of the automated valve market for over a decade. We offer high - quality services and great value through our one - stop automated valve services.
MTD Actuator Valve provides a wide range of automated valve products, including electric valves, pneumatic valves, ball valves, butterfly valves, solenoid valves, etc. Our products are of remarkable quality. With our extensive knowledge across diverse industries, we offer specialized and professional configurable valve options. We study customer requirements based on eight parameters: medium analysis, temperature analysis, medium pressure analysis, connection standard determination, control method (manual/electric/pneumatic), material requirements, medium opening/closing time, and installation position and space. This approach ensures accurate alignment with the customer’s requirements. Our products meet international certifications such as CE, RoHS, SIL, and FDA, and we are ISO9001 certified, ensuring reliable production and quality control in our large factory equipped with advanced machinery. We provide fast response and professional service, with quick quotes and efficient delivery times. Our professional after - sales support ensures that any issues are promptly addressed.
Choosing MTD Actuator Valve as your partner means getting professional customized solutions, quick reaction times, and trustworthy accuracy for your automated valves. This makes your chemical plant more productive, safe, and profitable.
Automating chemical plants is essential for enhancing business profitability. Competitiveness in the chemical industry extends beyond production and cost; it also encompasses safety, sustainability, and the future of the plant. Mastering basic automation technologies will lead to safer and more efficient chemical plants. Overcoming implementation challenges, leveraging the fundamentals of automation, and choosing the right partners are key to creating intelligent plants. Advancements in automation technology will strengthen the role of automation in the chemical industry, driving its growth and development.
