Views: 5 Author: Site Editor Publish Time: 2026-05-14 Origin: Site
An electric butterfly valve is a sophisticated piece of equipment formed by integrating an electric actuator with a butterfly valve body. The valve body houses a central rotating disc. As the disc pivots along with the valve stem, it has the ability to open, close, or regulate the fluid flow within a pipeline. The electric actuator, on the other hand, is the brain behind controlling and actuating the valve. It receives electrical signals, converts them into rotational force, and precisely positions the disc. This enables remote control and automatic operation, enhancing fluid control efficiency, safety, and reducing the risks and costs associated with manual handling. It's important to note that this valve type is distinct from ball valves, which utilize a sphere to govern flow. The connector on the actuator serves to link it to power and control systems, ensuring seamless operation.
The operating principle of an electric butterfly valve is relatively straightforward. When the electric actuator receives a command from a Programmable Logic Controller (PLC) or Distributed Control System (DCS), its internal motor springs into action. The motor's rotation is then transmitted to the valve stem via a gear system, which effectively converts the rotational motion into torque. The valve stem enables the attached disc to rotate through 90 degrees, thus earning its moniker as a quarter - turn valve. When the disc is parallel to the pipeline, the valve is fully open, allowing fluid to flow unimpeded. Conversely, when the disc is perpendicular to the pipeline, the valve is shut, halting the fluid flow. In all other positions, the valve controls the fluid flow. The exact position of the valve is typically monitored by limit switches and auxiliary limit switches within the actuator, which relay information back to the control system. Internal bearings ensure smooth and low - friction rotation of the disc and stem. Think of an electric butterfly valve as a skilled driver smoothly guiding a vehicle; it uses electricity to precisely control the flow of fluid.
On/Off Type: These valves function much like a light switch, capable of only being fully open or fully closed. They are commonly employed for blocking or diverting fluid, providing rapid on - off control. Their operation is simple and direct.
Modulating Type: Modulating electric butterfly valves can precisely adjust the disc's opening based on an analog input signal, such as a 4 - 20mA current or 0 - 10V voltage. This enables stepless regulation of fluid flow, making them ideal for accurately controlling flow, pressure, or temperature in complex industrial processes. They operate similar to a water tap, where you can adjust the water flow as required.
Wafer Type: This is the most prevalent and cost - effective type of butterfly valve. The valve body is sandwiched between two flanges and secured with pipeline flange bolts. Its compact and lightweight design makes it perfect for applications in tight spaces.
Flanged Type: Flanged butterfly valves feature flanges on either side that are bolted directly to the pipeline flanges. This structure ensures a stronger seal and a more stable connection, making it suitable for larger pipes and higher - pressure systems.
Lug Type: Lug - type butterfly valves are equipped with threaded lugs on their valve body, each with its own bolt hole. This allows for direct attachment to pipeline flanges. With this design, the valve can be removed from one side without disturbing the other, which is highly beneficial for maintenance purposes.
Welded Type: Usually in the form of socket weld or butt weld, welded - type valves offer extremely high sealing performance. They are well - suited for high - pressure, high - temperature, or leak - sensitive applications.
Threaded Type: Commonly found in smaller - sized valves, threaded - type valves connect to pipelines via threads. Their installation is relatively straightforward.
表格
Type Dimension | Specific Category | Key Features | Typical Applications |
|---|---|---|---|
Control Function | On/Off Type | Fully open or closed only, quick switching | Fluid blocking, diverting |
Modulating Type | Precise stepless flow, pressure, temperature control | Process control, automation systems | |
Body Structure | Wafer Type | Compact, economical, lightweight, clamped between flanges | Space - limited, medium - low pressure pipelines |
Flanged Type | Stable connection, strong sealing, direct bolt connection | Large diameter, high pressure, high stability requirements | |
Lug Type | Independent bolt holes, allows single - side maintenance | Frequent maintenance needs, pipelines that cannot be shut down easily | |
Connection Type | Welded Type | Very high sealing, high pressure, high temperature | Petrochemical, high - pressure steam |
Threaded Type | Small diameter, simple installation | Small equipment, laboratories |
The ability to achieve precise control and automation is a primary advantage of electric butterfly valves. The electric actuator can position the disc at any angle upon receiving electrical signals, enabling highly accurate fluid flow control. This is crucial for processes that demand strict parameter control, such as precise chemical dosing in water treatment or accurate temperature regulation in Heating, Ventilation, and Air Conditioning (HVAC) systems. Automated operation not only reduces the reliance on manual labor but also minimizes human error, enhancing production efficiency and process consistency.
These valves can be operated from a central control room, eliminating the need for operators to be physically present at the valve location. This is essential when dealing with hazardous media, high temperatures, high pressures, or hard - to - reach areas. It significantly enhances operator safety, similar to controlling heavy machinery from a safe distance. Electric butterfly valves make dangerous tasks safer and more manageable.
Most electric actuators cease consuming energy once they reach their target valve position (except for continuous - operation types). They consume less energy compared to pneumatic valves, which require a constant supply of air to operate. Additionally, accurate flow control improves system operation, leading to energy savings and contributing to the growing trend of green industrial growth. It functions like a well - regulated reservoir gate, providing water for irrigation without excessive waste.
Electric butterfly valves are typically designed to be compact, requiring less space for installation. Their system design often allows for straightforward maintenance, minimizing downtime and reducing long - term costs. Their durability means they don't need frequent replacement, ultimately lowering the overall cost of ownership.

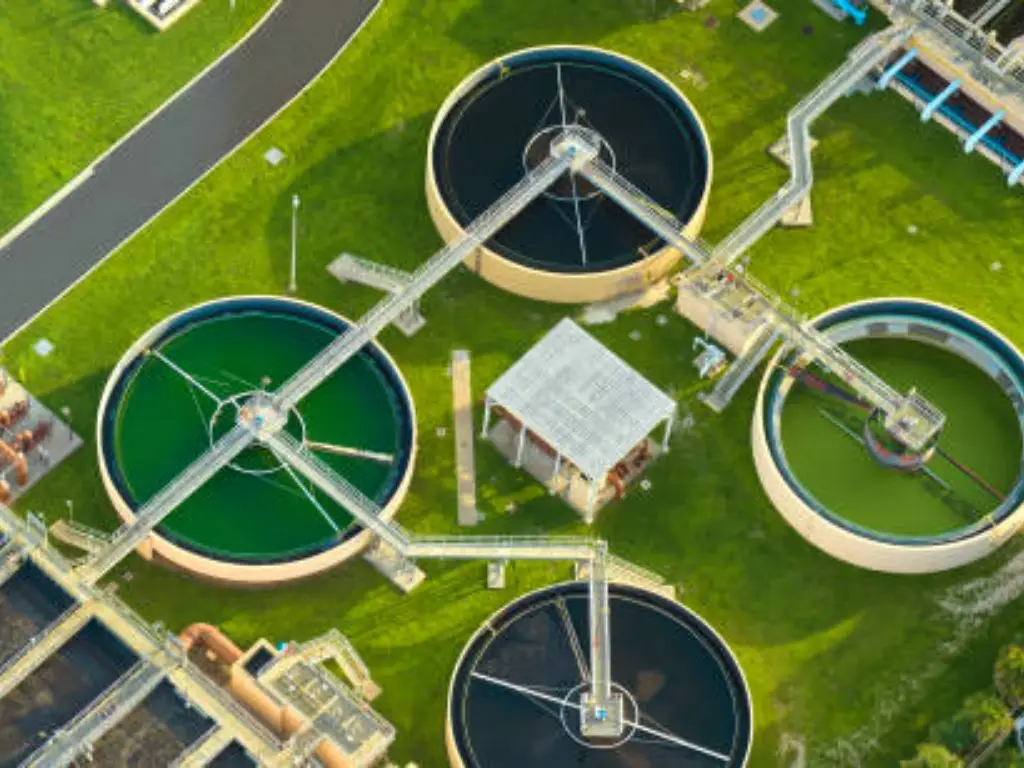

In water and wastewater treatment plants, electric butterfly valves play a vital role in controlling the flow of raw water, treated water, and sludge. This enables precise dosing, filtration, and discharge control, ensuring the efficient operation of the treatment process.
In large buildings and industrial facilities, these valves are used to adjust the flow of chilled water, hot water, or steam. This precise control of fluid flow helps maintain indoor temperature and humidity levels while optimizing energy efficiency.
These industries demand extreme precision in fluid handling. Electric butterfly valves are used to manage the flow of corrosive fluids, high - purity fluids, and gases in various chemical reactions, ensuring the quality and safety of the products.
In food processing, sanitary electric butterfly valves are employed to control the flow of liquids, slurries, and steam. This helps maintain product quality and adhere to strict hygiene standards.
Electric butterfly valves are extensively used in the cooling water systems, boiler feedwater systems, and exhaust gas treatment systems of thermal and nuclear power plants. They are capable of controlling large volumes of fluid, ensuring the smooth operation of power generation processes.
They are used to control the transport of slurries, tailings, cooling water, and various chemical solutions. Their ability to withstand harsh operating conditions makes them suitable for this industry.
In oil and gas extraction, transport, and processing, electric butterfly valves are used to control the flow of crude oil, natural gas, refined products, and associated media. They are particularly useful in areas where explosion - proof ratings are required.
Many automated machines and equipment incorporate electric butterfly valves in their fluid paths to ensure proper operation.
Begin by identifying the type of fluid media (water, oil, gas, slurry, corrosive media, etc.), as well as its temperature, pressure, viscosity, and whether it contains solid particles. These parameters will determine the necessary materials for the valve body, disc, and seal, as well as the required pressure rating. Common body materials include stainless steel and ductile iron, while seals may be made of materials like PTFE or graphite. The valve stem may also be crafted from specialized materials, such as graphite for certain applications. Additionally, consider the turbulence in the flow, as it can impact the valve's performance.
Decide whether you need simple on/off control or precise flow regulation. This will influence your choice between an on/off or modulating electric actuator. For modulating types, consider the type of control signal (e.g., analog signals).
Select the appropriate valve body construction based on the pipe connection method (flange, wafer, welded, etc.) and the available installation space. Compact wafer valves are well - suited for confined areas, while flanged types are more appropriate for larger diameters and higher pressures. Don't overlook the specific installation requirements.
Electric actuators come with different torque and speed ratings. Choose an actuator based on the valve size and operating conditions. Also, confirm the available power voltage (e.g., AC220V, DC24V). In hazardous areas requiring explosion protection, select an actuator with the appropriate explosion - proof rating.
Opt for a well - known brand that offers high - quality products, along with professional product selection advice, technical support, and comprehensive after - sales service.
Check if the valve complies with relevant international or regional standards (e.g., API, ISO, CE, RoHS, SIL, FDA) based on project or industry requirements. For example, in water applications, compliance with AWWA standards might be crucial, or CSA certifications for the Canadian market.
When it comes to reliable suppliers, MTD Actuator Valve stands out. We offer a wide range of automated valve solutions, including electric and pneumatic valves. Our team of experts can assess your needs by considering eight key elements: medium analysis, temperature, medium pressure analysis, medium opening/closing time, connection standards, control methods, material requirements, and installation position and space. We provide both standard products and custom solutions for various applications. Our products use top - quality imported sealing materials, enabling them to withstand wear, heat, and corrosion, ensuring long - lasting performance in challenging conditions. All our products are backed by international certifications, giving you peace of mind. After purchase, our engineering team offers professional assistance, including error analysis, solutions, and remote support, to ensure your problems are resolved promptly.
Regular Checks: Inspect the exterior of the actuator for leaks, corrosion, or any signs of damage. Examine the actuator cover and terminals for damage, corrosion, or looseness.
Lubrication: As per the manufacturer's instructions, lubricate the actuator gears and moving components, such as the valve stem. This helps minimize wear and friction.
Cleaning: Keep the outer surfaces of the valves and actuators clean to prevent the build - up of dust and dirt, which could interfere with heat dissipation or affect operation.
Operational Test: Conduct routine full open/close operation cycles. Ensure smooth valve movement without sticking. For modulating valves, verify their accuracy in regulation within the specified range.
Valve Does Not Open/Close:
Check Power: Ensure the power supply is operational and there are no voltage fluctuations.
Check Control Signal: Confirm that the control signal has been received by the actuator through testing.
Check Actuator: Inspect the actuator's internal motor or drive mechanism for damage. The motor may be burnt out, or internal gears may be jammed.
Check Valve Body: Verify that there is no foreign material obstructing the valve disc, which could cause jamming.
Valve Leakage:
Check Seals: The seals may be aged, worn, or damaged.
Check Valve Seat: There could be deformation or damage to the valve seat, resulting in improper sealing.
Check Connection Bolts: Loose flange connection bolts may lead to poor sealing.
Reduced Control Precision:
Calibrate Actuator: Modulating actuators may require recalibration to ensure proper correspondence with the control signal.
Check Sensors: Examine limit switches and position feedback devices to ensure their correct functionality and accurate system feedback.
Abnormal Noise:
Check Lubrication: Insufficient lubrication may be causing increased friction in moving parts, potentially within the bearings.
Check Fasteners: Loose valve and actuator fasteners and flanges may cause unsteady operation.
If you encounter complex problems that your team cannot handle, don't hesitate to contact MTD Actuator Valve for comprehensive technical assistance.
Electric butterfly valves are indispensable for fluid management, offering high precision and automation capabilities. They find applications in diverse industries such as water treatment, chemical processing, and HVAC, performing both simple and advanced control tasks. To select the best electric butterfly valve, it's essential to understand the working conditions, materials involved, and control requirements. Proper maintenance is key to ensuring the valve's longevity.
Electric butterfly valves are like the navigational aids that guide ships safely through obstacles, making industrial processes safer and more efficient.
