In modern industrial processing, precision control is no longer a luxury—it is the foundation of operational viability. As processing plants shift toward fully automated ecosystems, the engineering choices made at the fluid-handling level directly dictate system uptime, safety, and profitability.
MTD Actuator Valve engineered electric ball valves stand at the intersection of heavy-duty mechanical reliability and digital precision. This technical guide analyzes the critical architectures of electric ball valves, unpacks their performance dynamics across high-risk scenarios, and provides the exact selection criteria required by modern engineering and procurement teams.

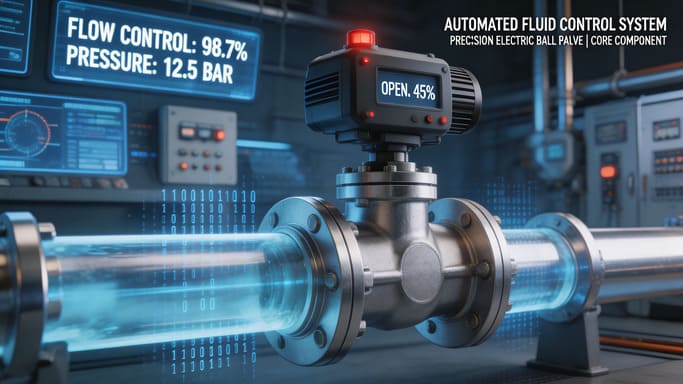

An electric ball valve is an automated flow-control assembly consisting of a mechanical ball valve integrated with an electric rotary actuator. The actuator utilizes a high-torque electric motor paired with a precision gear train to convert electrical energy into 90-degree rotary motion.
Inside the valve body, a spherical disc with a machined bore (the ball) rotates. When the bore aligns with the pipeline fluid path, the valve is fully open; when rotated 90 degrees, the solid face of the ball seals against internal resilient or metallic seats, achieving a bubble-tight shutoff. This quarter-turn action minimizes friction, reduces component wear, and delivers rapid actuation speeds compared to multi-turn gate or globe valves.
To understand the value of ultra-precise actuation, consider a continuous chemical batching plant operating at 3:00 AM. A sudden upstream pressure spike threatens to destabilize an exothermic reaction, risking a catastrophic thermal runaway and a projected $50,000 system failure in ruined media, damaged piping, and emergency downtime.
In this micro-moment, standard valves falter due to response lag or seat degradation. The MTD Actuator Valve heavy-duty electric actuator reacts within milliseconds, utilizing integrated smart sensors to modulate the valve position with 0.1% positioning accuracy. By perfectly throttling the volatile catalyst flow, the hardware safely absorbs the stress spike, balances system pressure, and maintains process equilibrium without human intervention.
The two-way configuration features a single inlet and single outlet designed strictly for bidirectional on/off isolation. It is the mechanical foundation for automated safety isolation and open-loop fluid transport.
Engineering Value: Unobstructed full-bore flow path yields zero pressure drop, eliminating localized turbulence.
High-Risk Target: Main header isolation lines where line velocity must be preserved without generating parasitic pump load.
Featuring three processing ports, this configuration is engineered for multi-path fluid management and is available in two distinct internal geometric profiles:
T-Port (Mixing/Diverting): Allows fluid to flow through all three ports simultaneously or switch between split-flow streams. Ideal for blending two distinct temperature or chemical lines.
L-Port (Diverting Only): Directs media from a single common inlet to one of two distinct outlets. It functions as a definitive fluid-routing switch.
Constructed with forged, thick-walled enclosures and heavy-duty blow-out proof stems, these assemblies handle severe hydraulic shock and extreme static line pressures.
Engineering Value: Reinforced live-loaded stem seals dynamically compensate for thermal cycling and pressure fluctuations.
High-Risk Target: High-pressure oil and gas extraction lines, hydraulic power units, and deep-well water injection systems.
Machined from non-metallic polyvinyl chloride polymers, these lightweight assemblies provide specialized chemical resistance.
Engineering Value: Complete immunity to galvanic corrosion, oxidation, and aggressive mineral scale accumulation.
High-Risk Target: Industrial wastewater treating facilities, acid-etching loops, and commercial deionized water systems.
Forged from premium 316/316L stainless steel, this configuration delivers maximum mechanical tensile strength alongside extreme temperature tolerances.
Engineering Value: Highly hygienic surface profiles combined with maximum resistance to chemical pitting and high-velocity erosion.
High-Risk Target: Pharmaceutical refining, high-temperature steam distribution, and volatile petrochemical processing loops.
The following structural matrix contrasts the operational limits of MTD Actuator Valve core product configurations to guide engineering selection:
Performance Parameter | Two-Way / Three-Way Stainless Steel | High-Pressure Forged Steel | Corrosive-Service PVC |
Nominal Diameter (DN) | DN15 – DN300 (1/2" – 12") | DN8 – DN100 (1/4" – 4") | DN15 – DN100 (1/2" – 4") |
Pressure Rating | PN16 / PN40 / ANSI 150# | PN100 / PN400 / ANSI 2500# | PN10 / PN16 (150 PSI) |
Temperature Range | -29°C to 230°C (-20°F to 446°F) | -29°C to 350°C (-20°F to 662°F) | 0°C to 60°C (32°F to 140°F) |
Positioning Accuracy | ±0.5% of full scale | ±0.5% of full scale | ±1.0% (On/Off Optimized) |
Ingress Protection | IP67 Weatherproof | NEMA 4X / ATEX Ex d IIB T4 | IP65 Splash-proof |
Duty Cycle Rating | 100% Continuous Duty | 100% Continuous Duty | 75% Intermittent Duty |
Selecting automated flow hardware requires aligning two distinct internal corporate frameworks: Technical Engineering and Financial Procurement.
Control engineers prioritize loop responsiveness and digital communication compatibility. MTD Actuator Valve actuators resolve these concerns through a native 150-millisecond response latency, eliminating fluid hammer during emergency closures. Furthermore, our digital control cards integrate natively with existing PLC/DCS architectures via Modbus RTU, Profibus, or 4-20mA analog protocols. This minimizes field-wiring complexity and prevents protocol conversion errors during commissioning.
Procurement managers focus on long-term capital expenditure efficiency and total cost of ownership (TCO). While cheap alternatives present lower upfront acquisition fees, they incur recurring costs via frequent seat replacements, actuator burnouts, and unplanned downtime. MTD Actuator Valve assemblies utilize specialized low-friction PTFE/PEEK seats paired with brushless, thermal-overload-protected motors. This engineering choice yields a 3.2x lifespan multiplier over standard configurations. Furthermore, our ultra-low-power standby draw combined with zero internal leakage results in direct 15% net energy reductions across plant-wide pumping loops, guaranteeing a complete capital return within a 24-month operational window.
To specify the correct electric ball valve for your processing environment, follow this structured engineering checklist:
Fluid Media Profiling: Define fluid chemical composition, viscosity, and solid-particulate density to match body materials (e.g., 316SS vs. PVC).
Dynamic Pressure Check: Calculate maximum system operating pressure and potential transient surge spikes to ensure compliance with body pressure ratings.
Thermal Parameter Verification: Verify that both processing fluid temperatures and ambient temperatures fall within the actuator electronics' safe operational boundaries.
Port & Flow Path Geometry: Select a 2-way layout for strict isolation or an L/T-port 3-way configuration for mixing/diverting applications.
Actuation Velocity Specification: Determine required opening/closing run-times to match the actuator gear ratio, preventing localized pressure waves.
Environmental & Safety Classification: Identify external environmental hazards to specify the correct enclosure rating, such as IP67 waterproof or ATEX explosion-proof protections.
Do not allow inefficient fluid loops to compromise your plant throughput. Contact an MTD Actuator Valve application specialist today to receive a comprehensive, data-backed technical quote tailored to your exact piping layout, media constraints, and automation protocols.
