1. Architectural Anatomy: The MTD Actuator Valve Industry Design Philosophy

An electric globe control valve acts as the critical physical execution layer within a closed-loop digital control architecture. Unlike quarter-turn isolation hardware, the globe valve utilizes a linear stem movement to adjust the spatial gap between a contoured plug and a matched internal seat ring.

[PLC 4-20mA / Digital Signal] ➔ [MTD Actuator Valve Brushless Servo Actuator] ➔ [Linear Stem Displacement] ➔ [Matched Plug-to-Seat Precision Throttling]

By pairing this geometry with an integrated smart positioner, MTD Actuator Valve Industry assemblies isolate the process from external fluctuations, establishing a linear, predictable relationship between signal input and volumetric output.

2. Core Configurations: Technical Analysis and Field Deployment Matrix

Operational efficiency requires pairing specific internal plug mechanics with the fluid rheology, pressure differentials, and acoustic thresholds of your process loop.

2.1 Single-Seated Electric Globe Control Valves

Engineered with a single plug and matched internal seat ring, this configuration maximizes structural seating force to deliver zero-leakage isolation alongside linear modulation.

• Primary Applications: Critical chemical dosing loops, pilot plant reactors, and high-purity laboratory processing.

• The High-Risk Scenario: Consider a critical catalyst injection loop running a volatile reaction at 3:00 AM. A sudden exothermic runaway requires an immediate choke down of reactant flow. Legacy unbalanced valves encounter stem stiction, lagging behind the control loop. The MTD Actuator Valve Industry single-seated valve, utilizing an integrated high-thrust actuator, overcomes the fluid body force to execute a precise, modulated closure within 80 milliseconds, stabilizing the reactor core temperature and preventing a catastrophic $65,000 thermal batch explosion.

• Stakeholder ROI: Automation engineers benefit from standard FCI 70-2 Class VI bubble-tight shutoff, eliminating downstream leakage. Procurement managers lock in a low total cost of ownership (TCO) through a hardened stem assembly built for 500,000 high-accuracy cycles without packing packing adjustment.

2.2 Double-Seated Electric Globe Control Valves

Featuring an innovative dual-plug design on a common axial stem, upstream process pressure acts simultaneously on both plugs in opposing directions. This geometric balance cancels out the net static fluid forces acting on the stem.

• Primary Applications: High-volume hydrocarbon transport, bulk boiler feedwater distribution, and municipal water treatment loops.

• Technical Advantage: Because the internal forces are balanced, the actuator requires significantly less mechanical torque to reposition the stem. This permits the integration of compact, low-power electric actuators on large-diameter pipelines, immediately reducing system footprint and driving a 14% lower initial capital expenditure (CAPEX) on actuator hardware.

• Economic Impact: The reduction in required driving power yields an immediate 11% decrease in localized electrical power consumption across continuous duty cycles.

2.3 Cage-Guided Electric Globe Control Valves

In this advanced architecture, the valve plug moves inside a shrouded, perforated cylindrical cage. The cage provides continuous circumferential support along the entire stroke length while simultaneously managing pressure drops through engineered hole geometries.

• Primary Applications: High-velocity steam headers, severe service oil refining, and multi-phase flashing applications.

• Technical Advantage: The full-perimeter guidance eliminates destructive plug vibration, stem bending, and acoustic resonance under extreme fluid velocity.

• Performance Metrics: Perforated cage configurations can reduce localized aerodynamic noise emissions by up to 18 dBA and effectively prevent cavitation damage to the downstream valve body walls.

       ┌─────────────────────────────────────────┐
       │ MTD Actuator Valve  Trim Customization Options   │
       └────────────────────┬────────────────────┘
                            │
         ┌──────────────────┴──────────────────┐
         ▼                                     ▼
[Perforated Anti-Cavitation]           [Low-Noise Vapor Trim]

2.4 Three-Way Electric Globe Control Valves

Utilizing a multi-port internal design, three-way configurations are categorized into either mixing (two inlets converging into one common outlet) or diverting (one inlet split into two distinct downstream destinations).

• Primary Applications: Industrial heat exchanger bypass loops, complex HVAC chilled water loops, and multi-stream chemical blending.

• Value Proposition: A single three-way MTD Actuator Valve Industry asset effectively replaces two independent two-way automated valves and their associated piping manifolds. This reduction in hardware eliminates up to 35% of potential physical leak paths and simplifies PLC programming.

2.5 High-Pressure Electric Globe Control Valves

Forged from monolithic blocks of premium alloy steel and fitted with specialized Stellite-faced hard surfacing, these heavy-walled elements are built exclusively for severe-service processing.

• Primary Applications: Supercritical power generation steam loops, high-pressure hydraulic injection, and upstream deepwater oil extraction.

• Performance Metrics: Engineered to maintain precise linear throttling control in environments exceeding ANSI Class 2500 (6,170 PSI) and working temperatures up to 565°C.

3. Engineering Specification and Performance Analytics

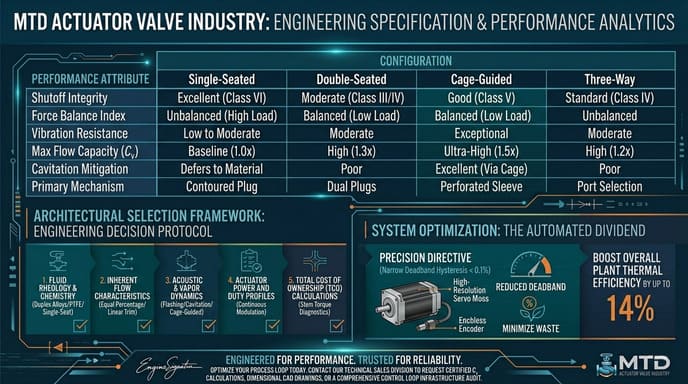

To guide precise process system architecture design, the following technical matrix evaluates the operational trade-offs of core MTD Actuator Valve Industry linear throttling configurations.

4. Architectural Selection Framework: Engineering Decision Protocol

Deploying an automated linear control element into an industrial loop requires executing a rigorous checklist across five technical dimensions:

• Fluid Rheology & Chemistry: Map fluid composition, viscosity, and particulate content. Corrosive chemicals demand specialized duplex alloys or PTFE linings; high-viscosity media require unobstructed single-seat profiles.

• Inherent Flow Characteristics: Align the internal trim geometry with system dynamics. Select an Equal Percentage Trim to compensate for escalating line pressure drops across long pipelines, or a Linear Trim for loops where the system pressure drop is concentrated entirely across the valve body itself.

• Acoustic & Vapor Dynamics: Run comprehensive sizing calculations to verify the presence of flashing or cavitation. If the pressure drop ratio ($\Delta P / P_1$) exceeds critical thresholds, a cage-guided anti-cavitation trim must be specified to prevent premature erosion.

• Actuator Power and Duty Profiles: Assess ambient environmental exposures and digital protocols (such as Modbus, Profibus, or 4-20mA HART). Ensure the electric actuator is configured for a 100% continuous modulation duty cycle to avoid thermal overload shutdown in fast-loop process tuning.

• Total Cost of Ownership (TCO) Calculations: Factor initial CAPEX against long-term maintenance outages. Integrating a premium MTD Actuator Valve Industry linear assembly equipped with real-time stem torque diagnostics transforms maintenance from a reactive emergency into a predictable, scheduled process.

5. System Optimization: The Automated Dividend

Upgrading manual or poorly specified quarter-turn hardware to MTD Actuator Valve Industry electric globe control platforms delivers rapid structural gains across the enterprise ecosystem:

The Precision Directive: By utilizing high-resolution brushless servo motors paired with digital encoders, MTD Actuator Valve Industry systems narrow deadband hysteresis down to less than 0.1%. This precision ensures chemical reactions operate at peak stoichiometric ratios, minimizing raw product waste and boosting overall plant thermal efficiency by up to 14%.
