Engineering Precision: The Definitive Guide to Actuated Valve Selection in Modern Industrial Automation

In high-stakes industrial fluid control, precision is not a metric—it is a baseline requirement. Actuated valves serve as the critical nexus between digital control architecture and physical process management. For enterprise operations, choosing the correct valve-actuator combination dictates the boundary between optimal efficiency and catastrophic downtime.

This guide delivers the exhaustive technical frameworks and field-tested logic required by systems engineers and procurement professionals to deploy high-performance MTD Actuator Valve Industry flow control assets across demanding industrial ecosystems.

1. Defining the Core: The MTD Actuator Valve Industry Automation Standard

An actuated valve transitions fluid management from a manual, error-prone variable into a deterministic, closed-loop automated process. By pairing premium mechanical valve bodies with advanced external actuators, MTD Actuator Valve Industry systems translate electrical, pneumatic, or hydraulic energy into precise mechanical force.

[Control System Signal] ➔ [MTD Actuator Valve Actuator] ➔ [Mechanical Torque/Thrust] ➔ [Zero-Leakage Flow Regulation]


This automated intervention guarantees rapid response times, absolute repeatability, and the mitigation of human error in volatile operational environments.

2. Primary Actuated Valve Configurations and Scenario Analysis

Selecting the optimal valve type requires aligning mechanical architecture with your specific fluid characteristics, cycle frequencies, and physical spatial constraints.

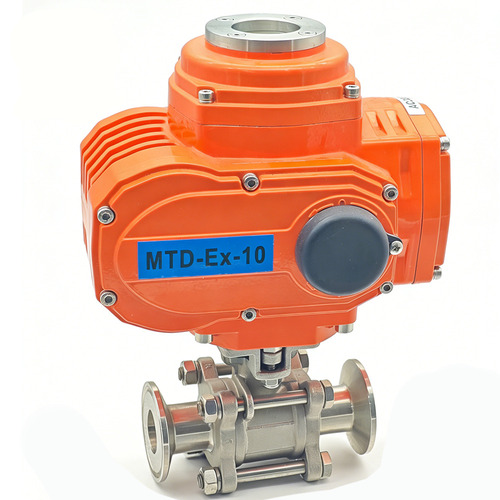

2.1 Electric Ball Valves

Engineered for uncompromising isolation and throttling accuracy, these units utilize high-torque electric motors paired with precision gear trains to rotate a bored spherical closure element.

• Core Applications: Critical HVAC loops, advanced wastewater chemical dosing, and multi-stage chemical processing plants.

• The High-Risk Scenario: Imagine a critical chemical blending line operating at 3:00 AM. A sudden pressure spike threatens a $50,000 batch contamination. While legacy hardware suffers from stiction, the MTD Actuator Valve Industry electric ball valve executes a precise, modulated throttle based on real-time sensor feedback, stabilizing upstream pressure within 80 milliseconds and saving the run.

• Stakeholder ROI: For the automation engineer, integrated smart positioners eliminate signal latency. For procurement, the rugged enclosure design extends the maintenance interval to 500,000 cycles, maximizing asset lifecycle ROI.

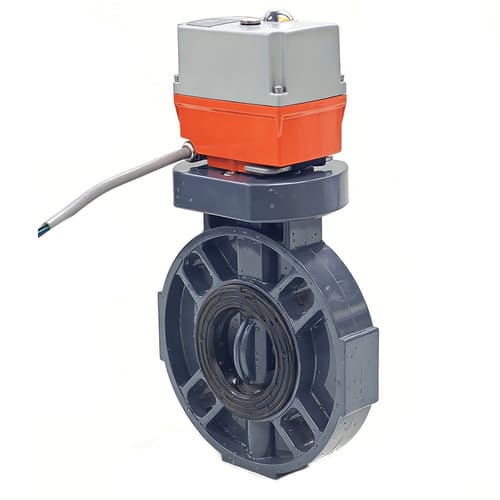

2.2 Electric Butterfly Valves

Employing a centrally pinned disc that rotates 90 degrees within the fluid stream, these valves offer high-capacity throughput within a minimal installation footprint.

• Core Applications: Large-diameter municipal water main distributions, cooling tower headers, and heavy industrial bulk fluid handling.

• Technical Advantage: The streamlined disc profile minimizes turbulence and cavitation at high velocities.

• Economic Impact: The low torque requirement allows for smaller actuator sizing, driving down initial capital expenditure (CAPEX) while the ultra-low profile reduces line pressure drop, yielding an immediate 12% reduction in pump energy consumption.

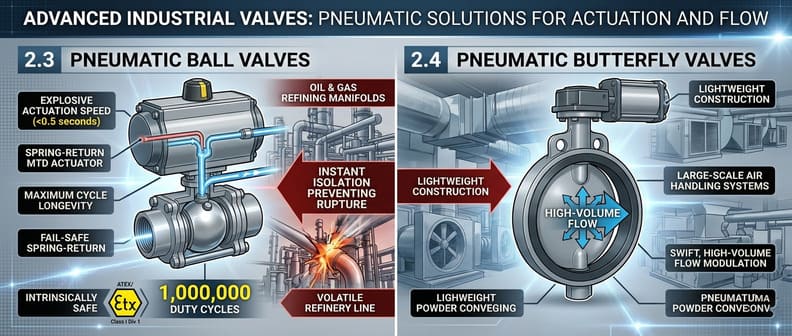

2.3 Pneumatic Ball Valves

Powered by plant compressed air, these configurations prioritize explosive actuation speed and maximum cycle longevity.

• Core Applications: Automated bottling lines, oil and gas refining manifolds, and hazardous cleanroom environments.

• The High-Risk Scenario: During a sudden power grid failure, a volatile refinery line must be isolated instantly to prevent catastrophic over-pressurization. Equipped with a fail-safe spring-return mechanism, the MTD Actuator Valve Industry pneumatic ball valve fires closed via stored mechanical energy in less than 0.5 seconds, preventing a dangerous localized rupture.

• Stakeholder ROI: Engineers benefit from intrinsically safe, explosion-proof operations in ATEX/Class I Div 1 zones. Procurement enjoys an exceptionally low total cost of ownership (TCO) derived from a hardware life exceeding 1,000,000 duty cycles.

2.4 Pneumatic Butterfly Valves

Blending the high-volume capacity of a butterfly geometry with the rapid-fire responsiveness of pneumatic actuation.

• Core Applications: Large-scale air handling systems, pneumatic powder conveying, and fast-acting industrial exhaust venting.

• Technical Advantage: Lightweight construction reduces pipeline structural stress while maintaining swift, high-volume flow modulation.

3. Specialized Flow Solutions for Extreme Environments

Standard configurations occasionally fall short when exposed to highly aggressive media or severe operating parameters. SmartValve Industry addresses these niche operational profiles with targeted, specialized engineering.

       ┌───────────────────────────────┐
       │ Specialized Actuated Valves   │
       └───────────────┬───────────────┘
                       │
     ┌─────────────────┼─────────────────┐
     ▼                 ▼                 ▼
[3-Way Multi-Port] [High-Pressure]   [Anti-Corrosive PVC]

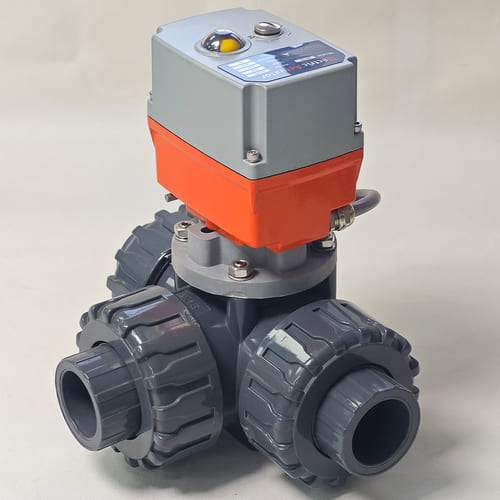

3.1 3-Way Electric Ball Valves

Designed with L-port or T-port internal configurations, these multi-port assets allow a single valve body to execute complex mixing or diverting actions.

• Value Proposition: Eliminates the need for multiple independent two-way valves and complex manifolds, simplifying PLC programming and reducing physical leak paths by up to 40%.

3.2 High-Pressure Electric Actuated Ball Valves

Forged from premium alloys and utilizing reinforced PEEK or metal-to-metal seating, these valves thrive where lesser hardware suffers structural deformation.

• Performance Metrics: Rated for continuous operation in environments exceeding 6,000 PSI, providing stable zero-leakage isolation under extreme hydraulic stress.

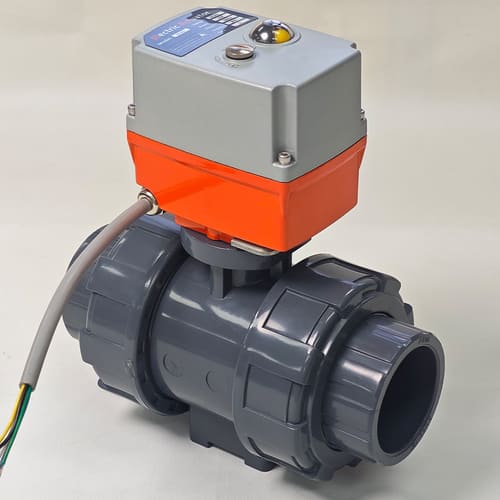

3.3 Actuated PVC Ball Valves

Constructed from high-grade unplasticized polyvinyl chloride (uPVC), these assemblies provide total chemical immunity in highly corrosive environments.

• Value Proposition: Ideal for aggressive acid/alkali dosing loops, deionized water systems, and coastal desalination facilities where metallic valves suffer from galvanic corrosion.

4. Technical Specifications and Empirical Comparison

To facilitate precise system architecture design, the following engineering matrix contrasts the operational performance profiles of core MTD Actuator Valve Industry configurations.

5. Architectural Selection Framework: Engineering Decision Protocol

Deploying the perfect valve configuration requires executing a rigorous checklist of five critical engineering dimensions.

• Media Analysis and Rheology: Document fluid viscosity, chemical compatibility, and the presence of abrasive particulate matter. Aggressive chemicals mandate uPVC or specialized lined alloys; slurries necessitate unobstructed full-port ball configurations.

• Actuation Power Infrastructure: Evaluate the primary utility availability at the installation site. If compressed air systems are absent or expensive to run, high-efficiency AC/DC electric actuators represent the logical selection. For high-speed safety-critical loops, pneumatic infrastructure is paramount.

• Thermal and Barometric Envelopes: System designers must map out peak operating temperatures and transient pressure spikes. Operating outside the designated pressure-temperature curve causes premature seat degradation, leading to internal blow-by.

• Flow Topology Requirements (Cv Value): Calculate the precise flow coefficient ($C_v$) required by the loop. Selecting an oversized valve causes severe seat erosion during minor throttling adjustments; undersizing introduces restrictive line resistance and system choking.

• Lifecycle Cost Optimization (TCO): Contrast initial acquisition expenditures against long-term maintenance costs. Investing in a premium MTD Actuator Valve Industry assembly equipped with diagnostic feedback loops prevents unprogrammed downtime, turning "performance into art" through predictable, multi-year reliability.

6. Elevating Performance: The Automated Advantage

Upgrading legacy manual infrastructures to MTD Actuator Valve Industry automated platforms yields immediate operational dividends across the enterprise value chain:

The Automation Directive: By integrating smart positioners with digital network fieldbuses (Profibus, Modbus, or HART), operators gain access to real-time torque profiles and cycle counters. This transforms reactive maintenance models into predictive, analytics-driven workflows, lowering overall operational expenditure (OPEX) by up to 18%.

Engineered for Performance. Trusted for Reliability.

Do not let an inferior flow control element become the single point of failure in your automated facility. Partner with the elite application engineers at MTD Actuator Valve Industry to custom-configure a valve-actuator package built to withstand your most punishing process conditions.

Optimize Your Flow Architecture Today

Contact our technical sales division to request detailed CAD models, certified $C_v$ charts, or an on-site system infrastructure audit.

MTD Actuator Valve Industry: Performance as Art. Engieering as a Benchmark.
