What is a MTD V-type ball valve?

Views: 219     Author: Site Editor     Publish Time: 2023-03-10      Origin: Site

Introduction V-type ball valves are commonly used in many industries where the precise regulation of fluid flow is required. This essay will discuss the different aspects of V-type ball valves, including their definition, working principle, features and advantages, applicable scenarios, and how to choose a suitable valve.



What is a MTD V-type ball valve?

A V-type ball valve, also known as a V-port ball valve, is a type of ball valve that has a V-shaped ball orifice instead of a round one. The V-shaped orifice allows for precise flow control and regulation, making it suitable for applications that require accurate control of flow rates and pressure drops.

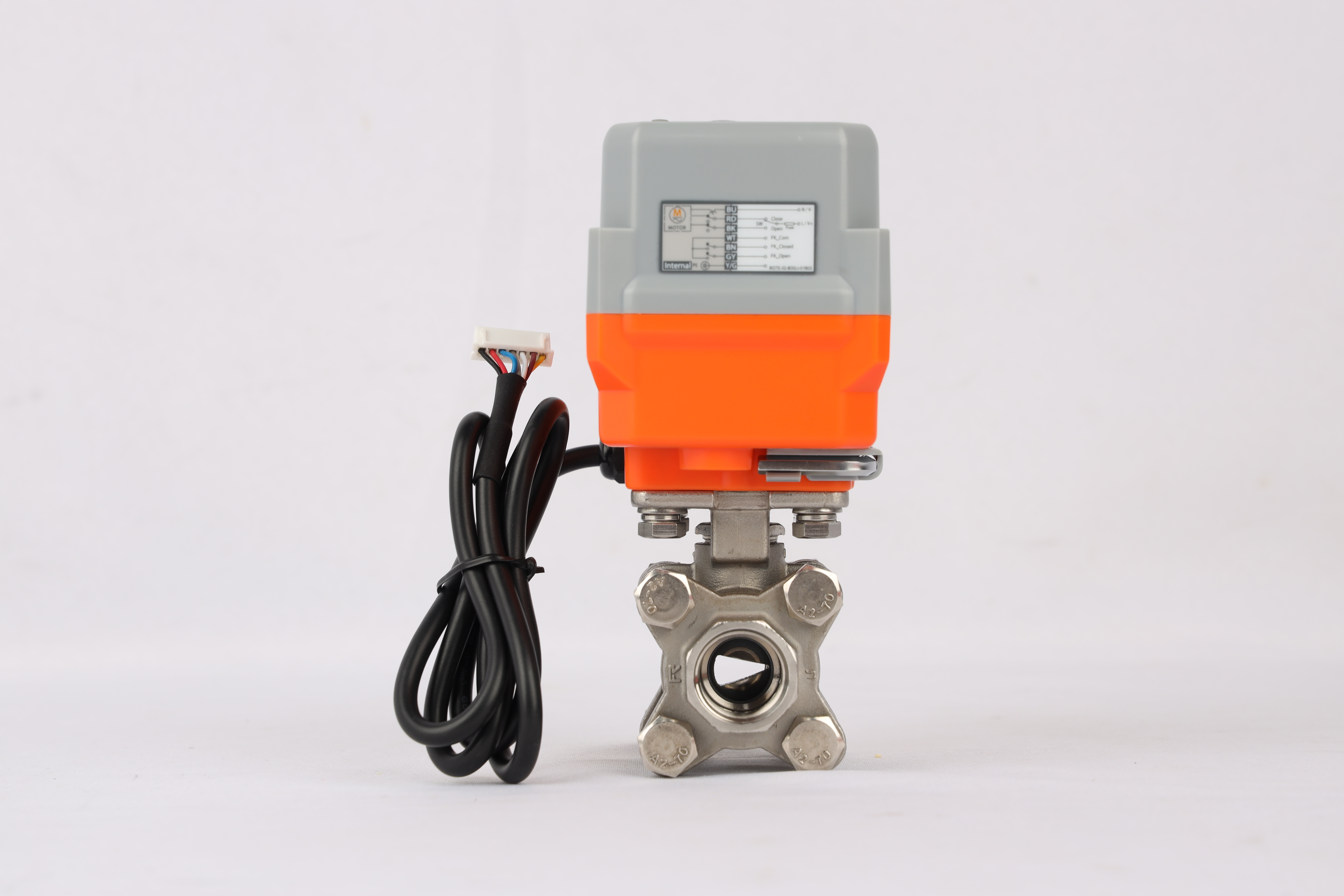

SS V-valve Actuator

 MTD SS V-valve Actuator



The V-shaped ball orifice is typically designed with a 15, 30, or 60-degree angle, which creates a linear flow characteristic that is ideal for throttling applications. The valve operates by rotating the ball 90 degrees from its fully open to fully closed position, which allows for quick and easy shut-off.



V-type ball valves are commonly used in industries such as chemical, petrochemical, food and beverage, and pharmaceuticals, where precise flow control is critical. They are also used in applications that involve slurries, viscous fluids, and high-temperature fluids.



What is the working principle of the V-type ball valve?

The working principle of a V-type ball valve is similar to that of a regular ball valve. It consists of a ball-shaped disc with a V-shaped orifice, which is rotated by an actuator to control the flow of fluid through the valve. When the valve is in the open position, the fluid flows through the V-shaped orifice, which causes the flow to be directed towards the center of the valve, creating a uniform and stable flow pattern.



To close the valve, the actuator rotates the ball 90 degrees, which causes the V-shaped orifice to align with the valve body, effectively blocking the flow of fluid. The V-shaped orifice also allows for precise flow control and regulation, making it suitable for applications that require accurate control of flow rates and pressure drops.

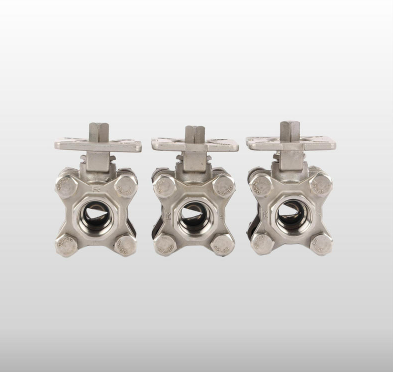

V-valve Actuator



In addition to the V-shaped orifice, some V-type ball valves are also equipped with a contoured ball, which creates an adjustable flow characteristic. As the V-shaped orifice is opened, the contoured ball moves, creating a variation in the flow rate that can be adjusted to suit the specific requirements of the application.



Features and advantages of V-type ball valve

V-type ball valves are a type of ball valve that have a V-shaped orifice instead of a round one. They are widely used in various industries, including chemical, petrochemical, food and beverage, and pharmaceuticals. Here are some of the features and advantages of V-type ball valves:



Precise flow control: The V-shaped orifice of the valve provides precise control of the flow and pressure drop, making it suitable for applications that require accurate control of flow rates.



High flow rate: The V-type ball valve has a large flow area, which allows for high flow rates and low pressure drops.



Low operating torque: The V-type ball valve has a low operating torque, which makes it easy to operate and reduces the wear and tear on the valve.



High sealing performance: The V-type ball valve has a tight shutoff, which ensures a high sealing performance and prevents leakage.



Adjustable flow characteristic: Some V-type ball valves are equipped with a contoured ball, which creates an adjustable flow characteristic that can be tailored to the specific requirements of the application.



Wide range of applications: V-type ball valves can be used in a variety of applications, including slurries, viscous fluids, and high-temperature fluids.

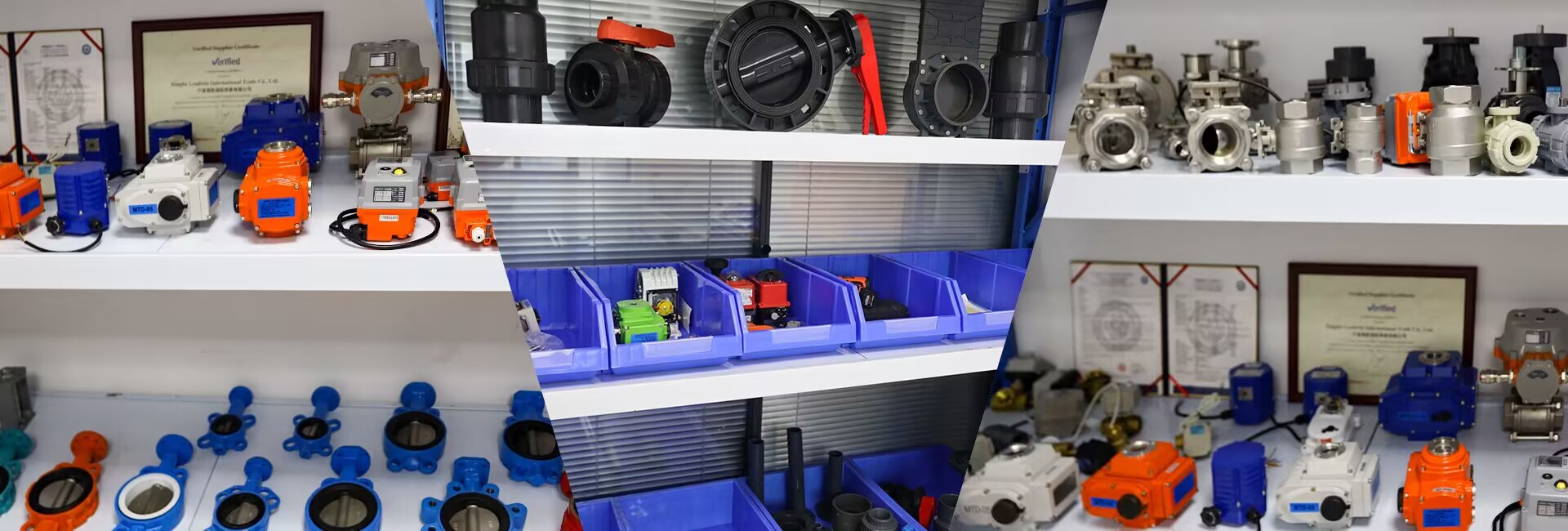

V-valve Actuator



Applicable scenarios of V-type ball valves

V-type ball valves are widely used in various industries due to their precise flow control, high flow rates, low operating torque, and excellent sealing performance. Here are some of the applicable scenarios of V-type ball valves:



Chemical industry: V-type ball valves are commonly used in chemical processing plants to control the flow of corrosive and hazardous chemicals.



Petrochemical industry: V-type ball valves are used in the handling of petroleum products, such as crude oil, gasoline, and diesel fuel.



Food and beverage industry: V-type ball valves are used in processing and bottling plants to control the flow of liquids, such as juices, syrups, and beer.



Pharmaceutical industry: V-type ball valves are used in the handling of pharmaceutical products, such as syrups, ointments, and antibiotics.



Water treatment industry: V-type ball valves are used in water treatment plants to control the flow of water and other fluids.



HVAC industry: V-type ball valves are used in heating, ventilation, and air conditioning systems to control the flow of water and other fluids.



Pulp and paper industry: V-type ball valves are used in the handling of pulp and paper products, such as wood chips, pulp slurry, and paper stock.



Overall, V-type ball valves are suitable for applications that require precise flow control, high flow rates, and tight shutoff. They are ideal for handling corrosive, abrasive, and hazardous fluids and can be used in a wide range of industrial applications.



V-valve Actuator (2)



How to choose a suitable V-type ball valve?

Choosing a suitable V-type ball valve requires consideration of several factors, including the application requirements, fluid properties, and valve specifications. Here are some key factors to consider when choosing a V-type ball valve:



Application requirements: Consider the specific application requirements, such as the flow rate, pressure drop, temperature, and fluid viscosity. These factors will help determine the size and material of the valve.



Fluid properties: Consider the properties of the fluid being handled, such as its corrosiveness, abrasiveness, and viscosity. This will help determine the material of the valve, such as stainless steel, carbon steel, or plastic.



Valve specifications: Consider the valve specifications, such as the valve size, end connection type, and operating pressure and temperature range. Make sure the valve meets the specific requirements of the application.



Flow characteristic: Consider the required flow characteristic, such as linear or equal percentage. This will help determine if a contoured ball is required for the valve.



Valve actuation: Consider the method of valve actuation, such as manual or automated. This will help determine the type of actuator required for the valve.



Manufacturer reputation: Consider the reputation of the valve manufacturer and their track record of producing high-quality valves that meet industry standards.



By considering these factors, you can choose a suitable V-type ball valve that meets the specific requirements of your application and provides reliable and efficient performance.
