In the exacting realm of industrial flow control, the choice of a flow - control component is not a matter of aesthetics but a meticulous engineering optimization. The butterfly valve, a quarter - turn rotating valve used to stop, regulate, and initiate fluid flow, is a common choice. Among its variants, the wafer - style and lug - style butterfly valves are key decision points for piping designers and plant engineers. Despite the availability of other valves like ball and gate valves, the butterfly design's compactness and ability to regulate fluid flow with minimal pressure drop make it favored. However, this choice significantly impacts system safety, maintenance procedures, and long - term operational costs. In complex industrial setups, a wrong decision can lead to critical leakage risks and unexpected system failures, undermining the facility's overall performance and financial sustainability.
This analysis provides a detailed technical comparison of these two designs, covering their structural mechanics, application - specific benefits, and the strategic need for automated control systems to boost reliability.
A wafer - style butterfly valve is engineered to seal against bi - directional pressure differences, preventing backflow in unidirectional flow systems. Characterized by its thin, compact shape, it lacks threaded attachment points on its body. Instead, it is designed to be “sandwiched” between two pipe flanges.
The primary function of the wafer valve is to offer a lightweight and cost - effective flow isolation solution. It features a set of centering holes, typically two or four, used solely for positioning the valve body within the pipe flanges during installation. Since the valve body isn't directly clamped to the piping, the entire assembly relies on the compressive force of long bolts that pass through the flanges and the valve body simultaneously.
Conversely, a lug - style butterfly valve has metal protrusions or lugs on the valve body's circumference. These lugs have tapped, threaded holes that match the bolt pattern of the mating flanges. Unlike the wafer design, which is compressed in place, the lug valve is attached to each flange separately with two sets of shorter bolts (one set on each side).
This mechanical independence allows the lug valve to function as an independent pipeline element. Since the bolts are threaded into the valve body, disconnecting one side of the piping doesn't affect the other side's structural integrity or sealing ability. This design distinction transforms the lug valve from a simple isolation device into a crucial safety and maintenance component in complex industrial systems.

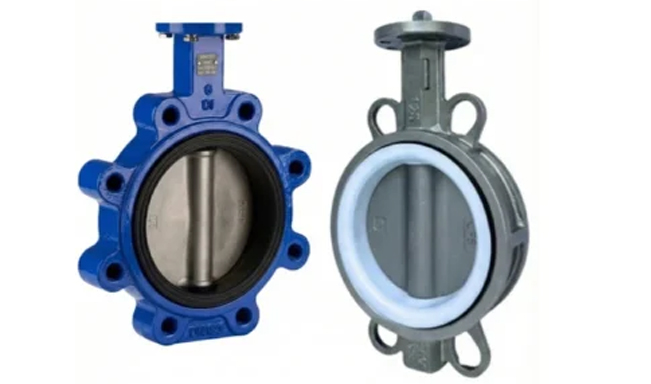

Feature | Wafer Butterfly Valve | Lug Butterfly Valve |
|---|---|---|
Structure | Clamped between flanges like a “sandwich.” | Body features threaded holes for independent securing. |
Bolting | Fewer bolts required, but they must be very long. | Bolt count is double that of the wafer style, but they are shorter. |
End - of - Line | Strictly prohibited (Safety Risk). | Fully compatible (Supports downstream removal). |
Pressure | Low to moderate; limited by bolt stretch. | Higher pressure rating; excels in surge conditions. |
Weight | Lightweight (approx. 20–30% lighter). | Heavier due to additional body mass and lugs. |
Initial Cost (CAPEX) | $ (Lowest initial investment) | $$ (Premium for machining and material) |
Maintenance | Requires total system shutdown. | Supports local isolation and uptime. |
Actuation | Optimized for manual or lightweight units. | Preferred for high - torque automated systems. |
Typical Applications | HVAC, water distribution, irrigation, and swimming pool filtration systems. | Oil and gas, chemical processing, pharmaceutical, and power generation. |
The structural mechanics of these two valves differ significantly in how they handle axial loads and internal pressure.
The wafer valve operates on the principle of external compression. Picture a wafer valve as a thin book held between two palms; when the pressure from the palms is released, the book drops. In a piping system, the pipe flanges act as the palms, and long all - thread bolts provide the compressive force. While this design is material - efficient, it subjects the long bolts to substantial thermal expansion and contraction. Over time, these temperature variations can cause slight changes in bolt tension, potentially weakening the seal if not monitored.
The lug valve uses a threaded engagement approach. Axial loads are more localized and safely distributed by directly threading bolts into the valve body. This eliminates the need for extremely long bolts, reducing the risk of thermal bolt stretch. Additionally, the lug design offers a stiffer connection, making it better suited for systems with high - frequency vibration or mechanical stress. The threaded lugs effectively integrate the valve into the piping structure rather than it being an external element placed between the pipes.
The ability to perform end - of - line service is a crucial differentiator in valve engineering. This occurs when a valve is installed at the end of a pipe run, and the downstream piping is removed, leaving the valve exposed to the atmosphere on one side while maintaining back - pressure on the other.
End - of - line service should not involve a wafer - style valve. Since it relies on the compression of two flanges to stay in place, removing the downstream flange would eliminate the valve's clamping force. The valve could either burst immediately or be forced out of the line under pressure, posing a significant risk to personnel and equipment safety.
The lug - style valve is designed to meet end - of - line service requirements. As it is attached separately to the upstream flange, the downstream piping can be disconnected for maintenance, cleaning, or modification without disturbing the valve, maintaining system pressure. This is essential in refineries, chemical processing plants, and other environments where system - wide shutdowns are not feasible for minor downstream repairs.
The Total Cost of Ownership (TCO) of any piping system is largely influenced by maintenance efficiency. The construction and maintenance of these valves have distinct economic and operational profiles.
The installation of a wafer valve is relatively quick and easy due to its light weight and low profile. However, achieving an ideal fit between the two flanges can be challenging. Uneven tightening of the long bolts can prevent the valve disc from seating properly and cause premature wear of the elastomer liner. Moreover, since a wafer valve requires the entire section of the pipe to be depressurized and emptied before removal, it imposes a binary maintenance schedule on the system: either the entire system is operational or completely offline.
A lug valve represents a strategic investment in system availability. While its installation is more complex, it allows for equipment isolation without a complete shutdown. Because it enables independent bolting, individual equipment such as pumps or tanks can be isolated without purging the entire plant. In high - stakes manufacturing, using a lug valve to avoid a twelve - hour system drain - down can save a company tens of thousands of dollars in lost production time. This makes the lug valve a strategic choice for critical process - flow paths.
Quantitatively evaluating these valves reveals a clear trade - off between structural economy and mechanical performance.
The wafer butterfly valve, with its minimal, thin - body profile, significantly reduces material mass and initial acquisition costs. This makes it ideal for weight - sensitive or budget - constrained applications like HVAC and low - pressure utility lines. However, its pressure rating is generally limited to moderate levels. Its streamlined design requires a few long bolts and strictly prohibits end - of - line service.
Conversely, the lug - style valve is the technical standard for high - pressure industrial processes and hazardous chemical transport. Its heavier mass, with integrated threaded lugs, enables independent bolting and full end - of - line compatibility. Although the lug design incurs higher costs due to complex machining and requires a double set of shorter bolts, it offers superior structural integrity during pressure surges. In summary, while the wafer valve prioritizes economy and simplicity, the lug valve is a robust choice for environments where reliability is crucial.
The choice of application depends on media complexity, system pressure, and process criticality.
Wafer valves are commonly used in water supply systems, swimming pool filtration, irrigation, and low - pressure HVAC systems. Their simplicity and low cost make them suitable for systems with non - hazardous media and relatively constant pressure. In these cases, the inability to perform end - of - line service is not a major drawback, as these systems are often shut down completely during certain seasons.
Lug valves are the workhorses of the oil and gas industry, pharmaceutical manufacturing, and power generation. The ability to isolate a pump or tank for maintenance while the rest of the facility continues to operate is not just a convenience but a necessity in these sectors. Additionally, the lugged connection is essential for environmental protection in systems handling volatile or toxic chemicals. Lug valves are also used in large - scale water treatment plants, where large water volumes and the potential for water hammer effects require a valve body that can withstand high mechanical stress without moving between the flanges
Selecting the right valve requires a multi - axial analysis of the piping environment.
When on a tight budget and with a basic system architecture, the wafer valve can save on component costs and shipping/handling due to its light weight. Its thin profile is often the only option in small skid designs where the face - to - face dimension is crucial.
If your system requires regular cleaning of individual parts or the ability to change a pump without emptying the tank, the lug valve is the only responsible choice. Choosing a wafer valve when end - of - line isolation is needed is an engineering error that endangers site safety.
The lug valve provides a stronger mechanical interface in high - vibration environments, such as around large compressors, or systems with high - pressure spikes. The threaded connection ensures the valve remains centered and closed even when the piping is subjected to external forces.

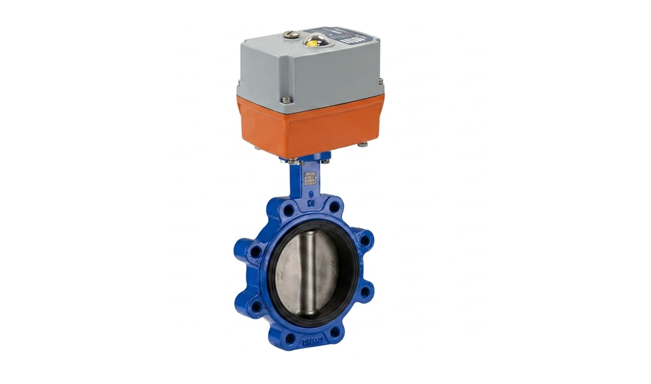

An often - overlooked aspect is the valve's operation method. Manual levers are simple, but as processes shift to automated control, the valve body becomes the foundation of the process. Automation, the cognitive center of the industrial setup, needs a stable base. Lug valves, being rigid and bolted down, offer a far more stable base for high - torque electric or pneumatic actuators. This stability eliminates valve wander during high - frequency cycling, which can cause premature seal wear in wafer - style installations.
While the wafer - vs - lug debate focuses on physical connections, the modern industrial landscape is evolving towards automated control. Traditional manual operation, reliable in simple scenarios, introduces the variable of human error. In high - frequency operations, manual valves can be a bottleneck; a technician's handwheel - turning speed is limited, and seal repeatability is inconsistent.

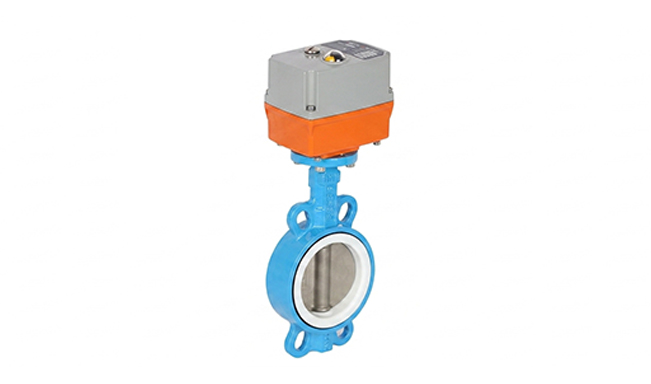

Upgrading to automated control addresses these limitations. Integrating pneumatic or electric actuators onto the butterfly valve body enables remote monitoring, emergency fail - safe shutdowns, and precise throttling beyond manual capabilities. Automation ensures flow adjustments are made with mathematical precision, reducing the risk of water hammer or pressure surges caused by rapid manual closing. This transition is not a luxury but a modern standard for reducing TCO and preventing minor operational oversights from escalating into system - wide failures.
MTD Actuator Valve is committed to providing intelligent fluid - control solutions for the global process industry, specializing in critical sectors such as water treatment, oil and gas, food and pharmaceuticals, and new energy. Our commitment extends beyond valve supply; we act as a strategic link between traditional engineering and modern automation.
Our core strength lies in a professional team of over 10 engineers, each with an average of 10+ years of industry experience. This technical expertise enables us to conduct a strict 8 - dimensional analysis, assessing media, temperature, pressure, connection standards, control methods, and material compatibility, to create solutions tailored to your operational environment. We prioritize “right - fit” solutions over standard sales, ensuring maximum cost - effectiveness and reliability.
Furthermore, our commitment to quality is backed by a robust set of international certifications, including ISO 9001, CE, RoHS, SIL, and FDA. Whether achieving high - performance product functionality or delivering comprehensive technical support, MTD Actuator Valve ensures your system meets the most stringent global safety protocols, making us the ultimate partner for sustainable industrial performance.
The choice between a wafer and a lug butterfly valve is fundamental and impacts the entire life of a piping system. The wafer valve offers a lightweight, simple isolation solution, while the lug valve provides structural independence and safety for critical maintenance and high - pressure applications. However, valve hardware selection is just the beginning. To maximize a facility's performance, it's essential to consider the strategic advantages of automation. By choosing the right valve body and pairing it with MTD Actuator Valve's advanced automated control solutions, engineers can ensure their systems are not only mechanically robust but also operationally efficient, guaranteeing high - precision and reliable flow control for the future.
