Mitigating Lifecycle Risk: 7 Steps for Selecting an Automatic Actuator Manufacturer

Industrial fluid automation leaves zero margin for error. Automatic actuators serve as the critical muscle layer controlling high-pressure valves, meaning a single hardware mismatch can cause cascading system failures. For control engineers optimizing system latency and procurement managers protecting long-term return on investment (ROI), choosing the right manufacturing partner is a high-stakes operational decision.

This technical guide establishes an objective evaluation framework to isolate elite manufacturing capabilities from commoditized suppliers, positioning MTD Actuator Valve as the benchmark for mission-critical flow control.

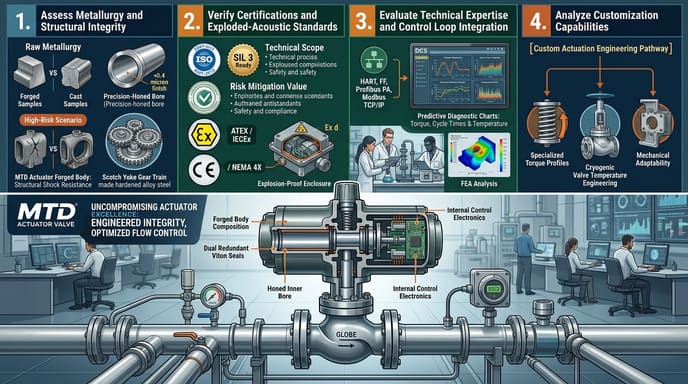

1. Assess Metallurgy and Structural Integrity

Product evaluation must look beyond surface aesthetics to analyze structural composition and machining precision. High-performance actuators face continuous mechanical stress, corrosive ambients, and extreme thermal cycling.

• Material Durability: Premium actuators must utilize grade 316 stainless steel or heavy-duty, epoxy-coated ductile iron housings to resist atmospheric and chemical corrosion. Internal gearing should feature hardened alloy steels or aluminum bronze to prevent premature tooth wear under high-torque operations.

• Design and Construction: Look for an enclosed Scotch yoke or precision rack-and-pinion design. The internal bore must be honed to a mirror finish (less than 0.4 microns roughness) to minimize seal friction, reduce stick-slip phenomena, and extend the operating life past millions of cycles.

• Sealing Systems: Ensure the use of dual-redundant Viton or PTFE chevron packing seals. This design maintains bubble-tight integrity and eliminates fugitive emissions even during rapid pressure transits.

High-Risk Scenario: Imagine a petrochemical refinery at 3:00 AM operating under peak throughput. A sudden upstream surge spike challenges the system. A low-grade actuator housing cast from porous alloy can crack under the transient pressure, causing a major chemical release and a catastrophic $50,000-per-hour unscheduled shutdown. Actuators engineered by MTD Actuator Valve utilize monolithic forged bodies to absorb these structural shocks effortlessly, containing the pressure and preserving plant safety.

2. Verify Certifications and Exploded-Acoustic Standards

Certifications are independent, legally binding verifications of a manufacturer’s design safety and quality management consistency.

• ISO 9001:2015: Validates that the factory operates under a rigorous, repeatable quality management system where every processing step is logged and traceable.

• SIL 3 (Safety Integrity Level): Essential for emergency shutdown (ESD) applications. A SIL 3 certification verifies an exceptionally low probability of failure on demand.

• ATEX / IECEx: Non-negotiable for hazardous environments. Actuators must be certified explosion-proof to ensure internal electrical arcing cannot ignite the surrounding volatile atmosphere.

3. Evaluate Technical Expertise and Control Loop Integration

An elite manufacturer must function as an extension of your own engineering team. Seamless integration into modern distributed control systems (DCS) requires deep electrical and digital protocol expertise.

• Bus Network Integration: The manufacturer must natively support advanced digital protocols including HART, Foundation Fieldbus, Profibus PA, and Modbus TCP/IP. This allows for the extraction of rich diagnostic data without adding complex external hardware.

• Predictive Diagnostics: Elite actuators feature embedded sensors that continuously monitor parameters like torque profiles, cycle times, and temperature deviations. This data feeds directly into predictive maintenance algorithms, alerting teams long before a component fails.

• Engineering Depth: Prioritize manufacturers possessing over two decades of dedicated flow-control R&D, supported by fully accredited flow labs and finite element analysis (FEA) design capabilities.

4. Analyze Customization Capabilities for Specialized Process Constraints

Standard off-the-shelf actuators rarely fit complex or retrofitted industrial spaces. True manufacturing competence is defined by the ability to engineer custom solutions for specific process anomalies.

[Custom Actuation Engineering Pathway]
  │
  ├──► Specialized Torque Profiles (Custom spring rates for fast-acting fail-safes)
  │
  ├──► Severe Temperature Engineering (Extended bonnets for cryogenic/superheated media)
  │
  └──► Mechanical Adaptability (Custom ISO 5211 mounting pads & drive sleeves)

• Tailored Torque Profiles: Look for the ability to customize spring configurations in spring-return actuators. This delivers precise torque curves that match the unique dynamic seating requirements of your valves.

• Extreme Thermal Isolation: For cryogenic or superheated fluid systems, the manufacturer must offer extended bonnets and customized thermal barriers to shield the actuator's electronic control modules from damaging temperatures.

5. Audit Technical Support Speed and Lifecycle Services

The true cost of an actuator is deeply tied to the quality of support available after installation. Unresponsive customer service can quickly turn minor field adjustments into costly operational delays.

• Real-Time Engineering Support: Partner with manufacturers that offer 24/7 global field support, giving you direct access to senior automation engineers who can troubleshoot complex control loop issues over the phone or on-site.

• Asset Management and Spare Parts: Ensure the manufacturer guarantees spare parts availability (such as seal kits, positioner boards, and gear assemblies) for a minimum of 10 to 15 years post-production. This strategy prevents premature asset obsolescence.

6. Quantify Total Cost of Ownership (TCO) vs. Purchase Price

Procurement managers are often tempted by low initial purchase prices, but cheap actuators routinely incur massive costs over their operational lifespan through high air consumption, frequent recalibrations, and unexpected failures.

Total Cost of Ownership (TCO) Formula:
TCO = Capex + Opex (Energy/Air Consumption) + Maintenance (Seals/Calibrations) + Risk Cost (Downtime)

• Energy Efficiency Operations: High-efficiency pneumatic actuators reduce instrument air consumption by up to 20%. For a plant running hundreds of loops, this translates directly into thousands of dollars saved annually in compressor electricity costs.

• Precision and Yield Optimization: MTD Actuator Valve smart positioners deliver a deadband specification of less than 0.1%. This tight control reduces process variability, directly improving product yield and saving significant energy costs over traditional, less precise alternatives.

7. Audit Supply Chain Resilience and Lead-Time Reliability

A delayed actuator installation can stall multi-million dollar capital expansion projects. You must thoroughly audit a manufacturer's logistics network and supply chain dependencies.

• Vertical Integration: Manufacturers that control their own casting, machining, assembly, and testing lines are much less vulnerable to global supply chain disruptions.

• Definitive Testing Lead Times: Every single actuator must undergo automated hydrostatic, pneumatic, and torque-signature testing before shipment, with full test certificates provided automatically.

Conclusion: The MTD Actuator Valve Standard

Selecting an automatic actuator manufacturer is an investment in your plant's operational safety and efficiency. By applying these seven criteria, engineering and procurement teams can confidently choose a partner that minimizes risk and optimizes long-term asset performance.

MTD Actuator Valve designs and manufactures world-class, high-precision automatic actuators. By uniting advanced metallurgy with cutting-edge digital fieldbus diagnostics, we help facilities around the world eliminate unplanned downtime and achieve true process optimization.

Optimize Your Flow Control Infrastructure Today

Don't let subpar actuation cut into your plant's profitability. Contact our application engineering team today to request a comprehensive technical consultation, or download our complete Actuator Performance Specification Sheets to see how we can optimize your systems.
