The Architecture of Failure: Fail Open vs. Fail Closed Valve Logic

In the exacting architecture of industrial fluid dynamics, entropy is the only absolute. Systems will inevitably experience interruptions—power grid fluctuations, compressed air depletion, or IIoT signal degradation. When the energy governing a system decays, the machinery does not simply pause; it defaults to a physical state of rest.

For the process engineer, the critical inquiry is not if a failure will occur, but how the system behaves in its absence. This is the domain of Fail-Safe logic. The automated valve, the primary control node in fluid dynamics, acts as the system’s emergency brake. When engaged, does it halt the flow to prevent a catastrophic spill, or does it release the flow to avert a pressure explosion?

The Micro-Moment of Truth: 40 Milliseconds to Control

Imagine a high-pressure chemical reactor in an ESG-mandated processing facility. The primary PLC loses network connectivity. The plant goes dark. In that exact 40-millisecond window, the physics of the valve take over. If the cooling water valve is Fail Closed, the coolant stops. The reactor core temperature spikes. Thermal runaway is imminent. But if engineered as Fail Open, the valve instantly maximizes cooling. The temperature stabilizes. The asset is saved. This is the micro-moment where precision design meets operational destiny.

There is no universal answer. Choosing between Fail Open (FO) and Fail Closed (FC) is a rigorous risk management exercise balancing human safety, asset protection, and economic efficiency. This guide breaks down the mechanics, the rationale, and the critical selection criteria for valve failure modes.

The Physics of Loss: What Causes a Valve to Fail?

To master failure modes, we must first classify the failure. In automated pneumatic and electric actuators, “failure” rarely means a snapped stem or a fractured body. It signifies the loss of the motive force required to maintain the valve in its active position.

The primary catalysts for this loss of control include:

• Loss of Power Supply: The electrical feed to solenoid valves or motorized actuators is severed, leaving the magnetic coil or motor dead.

• Loss of Air Pressure: In pneumatic systems, a compressor malfunction, a kinked supply line, or a ruptured air hose eliminates the pneumatic force holding the valve in its non-native position.

• Signal Interruption: A severed PLC wire or an Industry 4.0 control loop fault leaves the actuator without digital instructions, even if physical power remains active.

Once these energy sources vanish, active control ceases. At this precise point of energy loss, the valve must decide independently: withdraw to an open position, or seal shut. This autonomous response is predetermined by the Fail-Safe configuration specified during the design phase.

Fail Open (FO): The Anatomy of Passive Relief

A Fail Open (FO) valve, technically designated as Air-to-Close (ATC), is defined by its default mechanical state: it is fully open when external power is removed. The structural feature enabling this logic is a heavy-duty internal spring, precisely calibrated to physically force the valve stem outward.

During normal operation, the system supplies compressed air (or electricity) to the actuator chamber to close the valve. This energy opposes the spring’s tension, compressing it to maintain the closed position. When the energy supply is discontinued, the counteracting force vanishes. The spring immediately extends, and the valve reverts to its original, open state.

The Strategic Role of FO

The primary function of a Fail Open valve is to serve as a pressure relief or cooling guarantee. It is heavily utilized in thermodynamic systems and Intelligent Building Management Systems (IBMS) where heat or pressure buildup poses a greater threat than the flow itself.

• Thermal Protection: In the cooling jacket of a chemical reactor, an FO valve ensures water continues to circulate during a blackout, preventing overheating.

• Pressure Relief: In steam lines, FO valves vent excess pressure to safe zones, preventing pipe rupture when control systems fail.

The Economic Trade-off: While FO provides passive safety against physical disasters, it sacrifices containment. If the fluid is costly, toxic, or flammable, an FO valve will discharge it downstream until manual intervention occurs, potentially resulting in material wastage or ESG-related environmental cleanup expenses.

Fail Closed (FC): The Imperative of Containment

Conversely, a Fail Closed (FC) valve, or Air-to-Open (ATO), operates on the inverse principle. Its default condition is fully sealed. The internal spring is engineered to apply constant force against the valve seat, holding it closed. Compressed air is only required to force the valve open against this spring force. When the air supply is cut, the stored mechanical energy in the spring instantly drives the valve back into the closed position, forming an immediate seal.

The Strategic Role of FC

Containment is the fundamental objective of a Fail Closed valve. It isolates hazards when control is lost, making it the standard specification for hazardous materials, fuel supplies, and toxic chemical feeds.

• Combustion Safety: In a burner management system, an FC valve ensures the fuel supply is cut instantly if the flame controller fails, preventing raw gas accumulation.

• ESG & Spill Prevention: In chemical dosing or wastewater effluent lines, FC valves prevent the flooding of tanks or the release of untreated waste into the environment during a power loss.

The Economic Trade-off: The key benefit is immediate isolation, drastically reducing the risk of spills and fire hazards. The drawback is the potential for thermal or pressure hazards. An FC valve incorrectly specified on a cooling water line could cut off the sole source of cooling during an emergency, leading to catastrophic equipment failure.

The Mechanics: How Actuators Drive Fail-Safe Actions

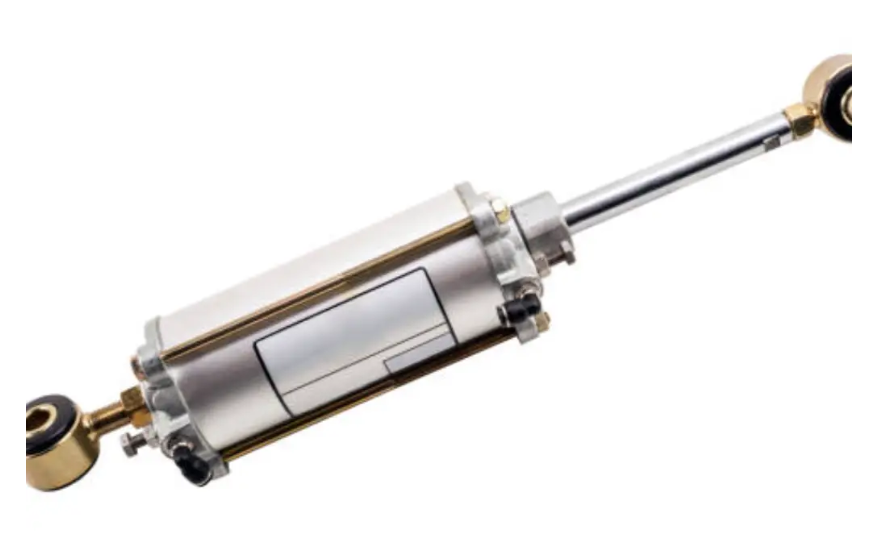

Understanding automated safety requires mastering the concept of stored potential energy. The Spring Return (Single Acting) Actuator is the industry standard for these systems.

Unlike standard double-acting actuators that require air to move in both directions, a fail-safe actuator houses a series of heavy-duty industrial springs. It is a continuous physical equilibrium between two forces: Compressed Air and The Spring.

1. Normal Operation (Charging the Safety): Compressed air is introduced into the actuator at a pressure sufficient to force the internal pistons, physically compressing the springs. The valve remains in its working position as long as air pressure is maintained.

2. Fail-Safe Action (Releasing the Safety): When the air supply is disconnected, the restraining force is removed. The springs immediately expand to their natural state. This rapid expansion releases massive mechanical energy, pushing the pistons back to their initial position and driving the valve to its safety position.

Why this is uncompromisingly reliable: It relies entirely on the fundamental laws of physics. It requires no sensors, no electricity, and no human intervention. The spring will always attempt to expand, ensuring the valve defaults to safety.

Fail Last (FL): Engineering Stability in Industry 4.0

Beyond the binary choice of Open or Closed, a third strategic option exists: Fail Last (FL), or Fail in Place. This configuration commands the valve to remain in its exact position at the moment of power loss, rather than snapping to a new state.

Mechanically, this is achieved by pairing a Double-Acting actuator with a specialized Air Lock Valve. When the device detects a drop in supply pressure, it instantly closes the exhaust ports, trapping the remaining compressed air in the actuator cylinder to hydraulically freeze the piston.

When to Specify Fail Last

• Water Hammer Prevention: In large-diameter liquid pipelines (typically over 20 inches), the abrupt slam of a spring-return valve would cause a violent “Water Hammer,” potentially tearing pipes apart.

• Process Stability: In sensitive chemical blending or IBMS climate control loops, a full-open or full-close event might upset thermal equilibrium or ruin a batch’s stoichiometric ratio.

The Limitation: FL prioritizes stability over isolation. However, it is a temporary measure. The trapped air seal is not as absolute as a mechanical spring; over several hours, air will leak, and the valve will drift. It is an intervention tool to buy time for a controlled manual shutdown, not a permanent walk-away safety measure.

The Three-Step Safety Matrix: A Hierarchical Approach

Selecting the appropriate failure mode is not a guessing game; it is a rigorous risk evaluation. Engineers should utilize a hierarchical Three-Step Safety Test to arrive at the optimal specification. This model ranks consequences from the most devastating to the least critical.

Key Consideration 1: Safety (Personnel & Environment)

Human life and environmental integrity are the absolute priorities. Hardware is replaceable; lives and ecosystems are not. If a valve malfunction could lead to injury, death, or a toxic release, safety dictates the decision regardless of cost.

• Example: A valve regulating toxic Chlorine must Fail Closed for immediate containment. Conversely, a fire suppression sprinkler valve must Fail Open to ensure water flows even if control cables melt.

Key Consideration 2: Asset Protection (Equipment)

Once personnel safety is secured, the focus shifts to protecting costly infrastructure. The goal is to choose the position that minimizes physical damage to machinery during a blackout.

• Example: A cooling water line supplying a high-temperature reactor jacket must Fail Open. Closing the valve would cause the multimillion-dollar reactor core to melt from residual thermal inertia.

Key Consideration 3: Process (Material Continuity)

Finally, when personnel and equipment are safe, the emphasis shifts to economic efficiency and process continuity. The aim is to prevent the wastage of raw materials or the spoilage of a product batch.

• Example: A valve dosing a costly catalyst into a mixing tank should Fail Closed. Failing open would dump expensive chemicals uncontrollably, ruining the batch and destroying profit margins.

Summary of the Decision Matrix

Application Matrix: Selecting by Medium and Environment

The logic of fail-safe is intrinsically tied to the physical characteristics of the medium. Below is a detailed guide to selecting the correct mode based on medium type and operational context.

The Economic Impact: Translating Specs to ROI

For procurement leaders and financial stakeholders, the economics of operational efficiency are paramount. While safety dictates the primary selection, engineers must also consider the profound impact this decision has on energy consumption, installation footprint, and project budget.

Operational Impact (Energy & Size)

Specifying a Fail-Safe (Spring Return) actuator imposes a physical tax on your pneumatic system. Unlike a standard double-acting unit, a Spring Return actuator must generate sufficient force to overcome the heavy safety spring while turning the valve.

• To achieve this, the actuator cylinder must be physically larger—typically 30% to 50% larger than a non-fail-safe unit.

• This results in higher air consumption per cycle, increased electrical power draw for plant compressors, and requires engineers to allocate a larger physical footprint in dense pipe racks.

Financial Reality (Insurance vs. Price)

Safety commands a premium. The additional size and complex spring cartridges make Spring Return actuators generally cost 20-40% more than standard units. However, procurement must view this not as an added cost, but as an insurance premium.

The cost of the actuator must be weighed against the Total Cost of Ownership (TCO) and the Cost of Failure. Saving a few hundred dollars on a substandard actuator is a false economy when a single power failure can result in a $50,000 ruined chemical batch, a $2M equipment replacement, or severe ESG regulatory fines. Precision in dimensioning ensures reliability without over-dimensioning the unit and wasting capital.

Silent Failures: Troubleshooting the Fail-Safe

Even the most robust fail-safe system is only as reliable as its maintenance. Because these valves often sit idle for months, waiting for an emergency that hopefully never occurs, they are susceptible to silent degradation. In the context of Industry 4.0, integrating predictive maintenance sensors can mitigate these risks, but understanding the physical weak points is essential.

• Static Friction (“Stiction”): The ultimate enemy of safety valves. Rubber seals can physically bond to the metal body during extended stationary periods. If this friction exceeds the spring’s force, the valve will hang during an emergency. Solution: Implement regular Partial Stroke Testing (PST) via your digital control system to break the friction bond without disrupting the process.

• Spring Fatigue: Physical components degrade. A spring can lose the tension required to fully close the valve against high line pressure after years of compression cycles, leading to “leakage-through-closed.” Solution: Verify actuator torque output during annual turnarounds and replace weakened spring cartridges.

• Exhaust Vent Blockage: A blocked exhaust vent paralyzes fail-safe action. For the spring to stretch, the air in the chamber must be expelled rapidly. If the vent is blocked by ice, dirt, or insect nests, the air traps, forming a hydraulic lock. Solution: Ensure instrument air is clean and dry, and fit simple breather vents to exhaust ports.

The MTD Actuator Valve Standard: Precision Manufacturing

The engineering choice of specifying Fail Closed is merely theoretical until it is stress-tested by reality. A low-cost actuator may list identical torque values on a datasheet, but this illusion shatters under pressure. In fail-safe logic, manufacturing quality is not a luxury; it is the structural foundation of safety.

The engineering philosophy at MTD Actuator Valve is rooted in transforming technical requirements into uncompromising reality. We recognize that in a fail-safe scenario, a valve is first a safety device, and second a flow control device.

• Advanced Materials: Our actuators utilize high-quality, imported seals specifically engineered for high wear resistance and extreme temperatures, eliminating the stiction and internal leakage that plague lower-grade alternatives.

• Rigorous Validation: MTD Actuator Valve employs a strict Double Check protocol. We conduct destructive testing on actuators to verify mechanical life and perform 100% leakage tests on all valve bodies. This guarantees that a Fail Closed command produces a proven, bubble-tight seal.

• Engineered Certainty: Supported by ISO9001, CE, and SIL certifications, our engineering team utilizes a proprietary 8-Dimension Analysis. We evaluate variables like medium viscosity, pressure drops, and thermal dynamics to ensure your Fail Open or Fail Closed choice is an engineered certainty, not a guess.

Verification: Confirming the Fail Position

Verifying the actual fail position is a critical safety checkpoint. You cannot rely on assumptions; you must ensure the physical hardware aligns perfectly with the process safety logic.

P&ID Diagram Symbols

During the design stage, safety logic is specified on the Piping and Instrumentation Diagram (P&ID). Standard indicators on the valve stem line include:

• FC (Fail Closed): An arrow pointing toward the valve body.

• FO (Fail Open): An arrow pointing away from the valve body.

• FL (Fail Last): Two parallel lines intersecting the stem.

Visual Identification in the Field

When drawings are unavailable, determine the logic by inspecting the actuator:

• Nameplate: Look for the “Action” code. SR-CW (Spring Return Clockwise) typically means the spring closes the valve (Fail Closed). SR-CCW implies the spring opens it (Fail Open).

• Solenoid Check: A 3/2-Way Solenoid (single air line) indicates a Fail-Safe unit. A 5/2-Way usually indicates Double Acting (No Fail-Safe).

• Examine the Breather: A Fail-Safe actuator typically has an air line on one port, with a Breather Vent/Silencer on the other. Air lines on both ports indicate a standard Double Acting unit.

The “Air Cut” Test: The Ultimate Proof

Physics does not lie; labels can be misprinted. Functional simulation is the only definitive method.

1. The Procedure: Move the valve to its normal operating position (e.g., Open). Physically disconnect the air supply tube or close the isolation valve. Do not simply cut the electrical signal.

2. The Result: If it closes instantly, it is Fail Closed. If it opens, it is Fail Open. If it holds position without expelling air, it is Fail Last or non-fail-safe.

3. Safety Precaution: Keep hands and tools clear of the valve linkage. Spring-return actuators discharge massive torque instantaneously upon air loss.

Conclusion

The choice between a Fail Open and Fail Closed valve is the silent sentinel of the industrial process. It is a decision made in the quiet of an engineering office that will ultimately dictate the fate of a plant during a chaotic emergency. No single option is inherently superior; only the option that perfectly aligns with the specific physics and risks of your system.

Whether it is a super-heated reactor relying on a Fail Open cooling valve, or a toxic gas line secured by a Fail Closed isolation valve, the reasoning must be rigorous, and the equipment must be flawless. The ultimate objective is to ensure that when the power dies and the lights go out, the system fails in the only way that matters: safely.
