Fluid control is the silent architecture of modern industry. It is profoundly simple, yet incredibly powerful. From the sprawling pipelines of the energy sector to the intricate climate networks of intelligent buildings, the precise manipulation of media dictates operational success. Manual intervention is a relic of the past. Today, automation demands the absolute precision of the motorized valve.
These are not mere switches. They are the intelligent endpoints of your control network, translating digital commands into physical reality.
Consider a high-capacity data center cooling loop operating at peak summer load. A sudden, unforeseen pressure spike threatens the primary heat exchangers. In a legacy system relying on slow-pneumatic or manual isolation, the valve hesitates. The result is a thermal cascade, catastrophic hardware failure, and an estimated $2.4M in downtime losses.
Now, introduce a MTD Actuator Valve motorized control valve. Upon detecting the anomaly via the DCS, the actuator executes a <500ms fail-safe auto-return, instantly isolating the loop. The pressure dissipates. The hardware remains protected. Crisis averted. Capital preserved. This is the micro-moment where engineering precision meets absolute financial security.
A motorized valve utilizes advanced electric actuators to position a valve mechanism—fully open, fully closed, or at any precise intermediate point. Unlike their pneumatic counterparts, which require complex compressed air infrastructure, motorized valves convert electrical energy directly into mechanical torque.
This direct conversion offers a distinct advantage: seamless integration. By utilizing standard electrical power and digital communication protocols, these valves integrate natively with Programmable Logic Controllers (PLCs) and Distributed Control Systems (DCSs), forming the physical layer of your Industry 4.0 infrastructure.
Selecting the correct valve body is an exercise in matching mechanical geometry to fluid dynamics. MTD Actuator Valve engineers each typology to deliver specific operational advantages.
Valve Typology | Actuator Profile | Core Mechanical Features | Primary Economic & Operational Impact |
|---|---|---|---|
Motorized Ball Valve | Quarter-turn | Compact footprint, zero-leakage sealing, minimal flow resistance. | Ideal for rapid shut-off. Delivers 99.9% uptime in critical isolation scenarios. |
Motorized Butterfly Valve | Quarter-turn | Lightweight construction, scalable to massive diameters, low-pressure drop. | Optimizes CAPEX for large-scale water and HVAC applications. |
Motorized Globe Valve | Multi-turn / Linear | Elevated back pressure, exceptional throttling capability. | Provides the precise modulation required for complex process control. |
Motorized Gate Valve | Multi-turn | Unobstructed full-bore flow, low switching frequency. | Minimizes pumping energy costs in continuous, steady-state pipelines. |
Motorized Control Valve | Smart Multi-turn | V-port or cage-guided trim, integrated position feedback. | The ultimate tool for modulating flow, pressure, and temperature with <1% accuracy. |
The modern motorized valve does not operate in isolation. It is a connected node within a broader digital ecosystem.

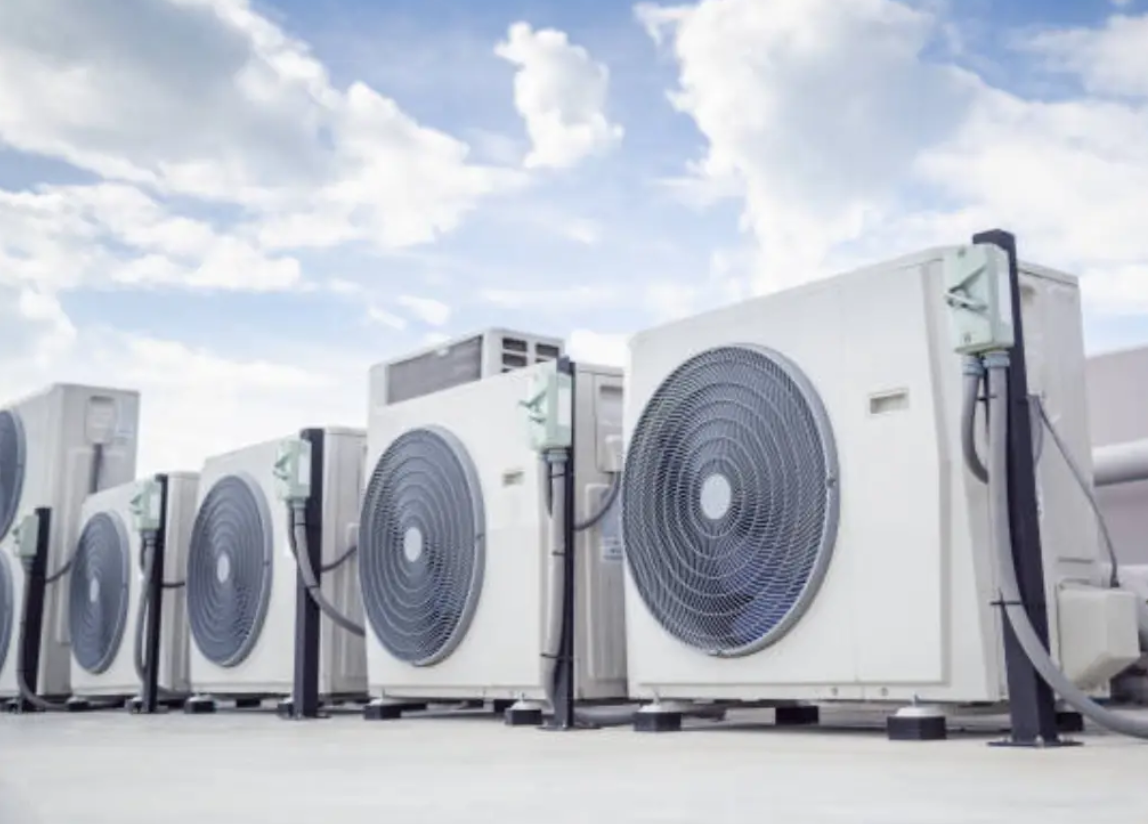

In commercial real estate, motorized valves are the physical executors of the IBMS. By supporting protocols like BACnet and Modbus, MTD Actuator Valve actuators allow building managers to dynamically balance HVAC zones. This eliminates overcooling and overheating, directly translating to a 30% reduction in HVAC energy consumption.
Environmental, Social, and Governance (ESG) criteria demand rigorous resource management. In municipal water treatment and desalination, our motorized valves provide exact chemical dosing and flow diversion. By preventing over-dosing and eliminating fugitive emissions through advanced sealing technologies, facilities can reduce chemical waste by up to 22%, directly advancing their sustainability metrics.
True Industry 4.0 requires bidirectional data flow. MTD Actuator Valve smart actuators do not just receive commands; they transmit diagnostic data. Torque profiles, cycle counts, and motor temperature are streamed to the cloud, enabling predictive maintenance and shifting your operational model from reactive to proactive.
For procurement leaders, the evaluation of motorized valves must extend beyond the initial purchase price. The true metric is Total Cost of Ownership (TCO).
While the initial CAPEX for a motorized valve exceeds that of a manual alternative, the operational economics are overwhelmingly favorable. By eliminating the need for manual labor in remote or hazardous areas, facilities realize an immediate 40% reduction in operational OPEX. Furthermore, the precise modulation capabilities of our control valves optimize process efficiency, yielding an average 15% improvement in overall energy efficiency. When factoring in the elimination of compressed air infrastructure required by pneumatic alternatives, the ROI is typically realized in under 18 months.
Choosing the optimal valve requires a rigorous, multi-dimensional analysis. MTD Actuator Valve utilizes an eight-point engineering methodology to ensure absolute specification accuracy.
The foundation of selection is the media itself. Engineers must define the fluid composition, corrosiveness, viscosity, operating temperature, and maximum pressure. These parameters dictate the metallurgy—whether standard carbon steel, 316L stainless steel, or specialized alloys—and the elastomeric seal requirements.
Determine the required flow coefficient (Cv) and the acceptable pressure drop. Select the appropriate body style (ball, butterfly, globe) and connection methodology (flanged, threaded, wafer, or butt-weld) based on pipe stress and maintenance accessibility.
Define the control philosophy. Is simple on/off isolation sufficient, or does the process require analog modulation (4-20mA or 0-10V)? Specify the voltage requirements (AC or DC), the necessary torque output, and the critical need for fail-safe mechanisms (spring-return or battery backup) upon power loss.
Assess the ambient installation environment. High humidity, corrosive atmospheres, or extreme temperatures demand specific IP ratings (e.g., IP67 or IP68) and ATEX/IECEx certifications for explosive environments. Ensure all materials comply with industry-specific certifications, including FDA, CE, RoHS, and SIL.
A meticulously engineered valve will underperform if installed incorrectly. Adherence to lifecycle best practices is non-negotiable.
System Purging: Flush the pipeline thoroughly prior to installation. Debris is the primary adversary of valve seating surfaces.
Stress Mitigation: Ensure pipe alignment is perfect. Mechanical pipe stress will distort the valve body, leading to premature actuator failure.
Electrical Integrity: Strictly adhere to the wiring schematic. Ensure robust grounding to protect the actuator’s sensitive microprocessors from voltage transients.
Routine maintenance is evolving. Instead of scheduled teardowns, MTD Actuator Valve smart actuators facilitate condition-based monitoring.
Telemetry Analysis: Monitor actuator torque signatures. A gradual increase in operating torque indicates potential stem binding or seal degradation.
Thermal Monitoring: Track motor temperatures to prevent thermal overload and extend motor lifespan.
Automated Diagnostics: Utilize the actuator’s self-diagnostic features to identify limit switch drift or communication faults before they trigger a process alarm.
The trajectory of motorized valve technology is defined by miniaturization, intelligence, and sustainability. Future iterations will feature even more compact, modular actuator designs, drastically reducing installation footprints. We are pioneering the integration of advanced, self-lubricating composite materials that eliminate the need for chemical greases, further supporting global ESG initiatives. As edge computing becomes ubiquitous, the motorized valve will evolve from a simple endpoint into an autonomous decision-maker, capable of local, real-time fluid optimization without waiting for central server commands.
Fluid control is not merely a mechanical necessity; it is a strategic advantage. By selecting the right motorized valve, you are investing in operational resilience, energy efficiency, and absolute process safety.
Partner with MTD Actuator Valve. Our team of expert engineers is ready to analyze your process parameters and deliver a tailored, high-performance fluid control solution.
Request a comprehensive technical consultation and optimize your system’s architecture today.
