Guide to Choosing the Perfect Diaphragm Valve for Your Application - MTD Actuator Valve

Step 1: Understand the Basics of Diaphragm Valves

Before selecting a diaphragm valve, it's crucial to be familiar with its fundamental characteristics and operation.

• Design and Operation: Diaphragm valves utilize a flexible diaphragm that can move up and down to regulate fluid flow. When the diaphragm is lifted, fluid passes through; when it is lowered, the fluid is blocked. This simple yet effective mechanism provides precise control over fluid movement.

• Applications: They are ideal for handling corrosive, viscous, and abrasive fluids, as well as for sanitary applications where sterile conditions are required. For instance, in the pharmaceutical industry, where strict hygiene standards are paramount, diaphragm valves ensure that the production environment remains contamination - free.

• Advantages: Diaphragm valves offer excellent sealing properties, are easy to maintain, and are available in a variety of materials to suit different applications. Their ability to provide a tight seal helps prevent leaks, which is especially important when dealing with hazardous or valuable fluids.

Step 2: Define Application Requirements

The first step is to assess the specific needs of your application.

• Fluid Type: Determine the type of fluid (liquid, gas, or slurry) and its characteristics, such as corrosiveness, viscosity, and abrasiveness. For example, if dealing with highly corrosive chemicals, a diaphragm valve made of corrosion - resistant materials will be essential.

• Flow Rate: Calculate the required flow velocity to ensure the valve can handle the expected volume of fluid. In a large - scale water treatment plant, accurate flow rate calculation is crucial for efficient operation.

• Pressure Conditions: Evaluate the working pressure range and select a valve with an appropriate pressure rating. A valve with an insufficient pressure rating may fail under high - pressure conditions, leading to leaks or even system failure.

• Temperature Range: Consider the temperature range to which the valve will be exposed and choose materials accordingly. In high - temperature applications, such as in some chemical processing plants, materials with high - temperature resistance are necessary.

• Hygiene Requirements: For applications in the pharmaceutical or food - and - beverage industries, ensure the valve meets strict hygiene standards. This may involve features like smooth surfaces that are easy to clean and materials that are non - toxic and resistant to bacterial growth.

Step 3: Select the Right Valve Type

Diaphragm valves come in various types, each suitable for different applications.

• Weir - Type Diaphragm Valves: These are suitable for low - pressure and clean applications. Their smooth and well - defined body contours minimize the likelihood of liquid entrapment. In a laboratory setting where low - pressure and clean fluid handling is required, a weir - type diaphragm valve can be an excellent choice.

• Straight - Through (Full - Port) Diaphragm Valves: Ideal for applications that require unobstructed flow and the handling of viscous or particulate - laden fluids. In a food - processing plant where thick sauces or slurries need to be transported, a straight - through diaphragm valve ensures smooth flow without clogging.

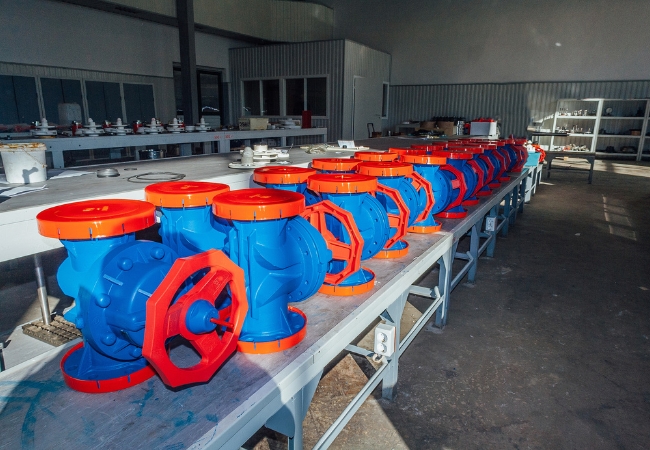

Step 4: Evaluate Material Options

The choice of materials is vital for ensuring durability and fluid compatibility.

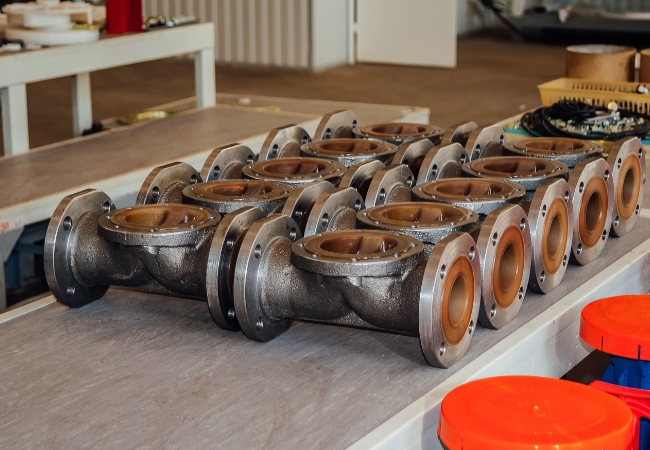

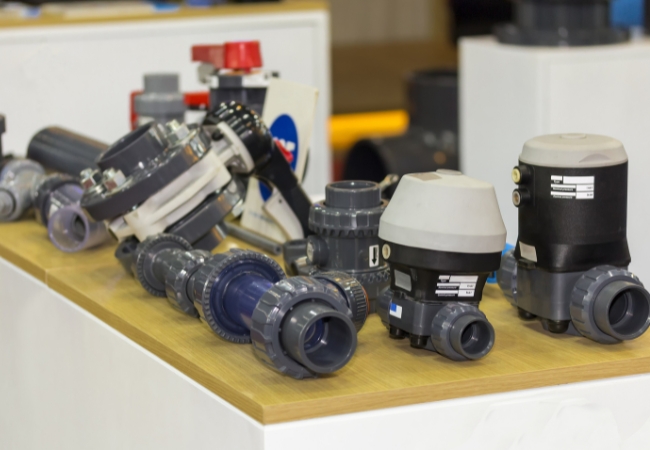

• Body Materials: Common materials include stainless steel, cast iron, plastics, and various alloys. Stainless steel is highly favored for its corrosion resistance and hygienic properties. In the food - and - beverage industry, stainless - steel - bodied diaphragm valves are often used due to their ease of cleaning and resistance to food - related corrosion.

• Diaphragm Materials: Options include EPDM, PTFE, nitrile, and FKM. Select based on fluid compatibility, temperature tolerance, and mechanical strength. For example, PTFE diaphragms are known for their excellent chemical resistance and can be suitable for handling aggressive chemicals.

Step 5: Assess End - Connection Options

Diaphragm valves are available with various end - connections to meet different installation requirements.

• Threaded Connections: These are easy to install and are suitable for smaller valves. In a small - scale plumbing system, threaded - connection diaphragm valves can be quickly and easily installed.

• Flanged Connections: They provide a strong seal and are ideal for large - scale, high - pressure applications. In an industrial pipeline system handling high - pressure fluids, flanged - connection diaphragm valves ensure a secure and leak - free connection.

• Tri - Clamp Connections: Commonly used in sanitary applications, they facilitate easy cleaning and maintenance. In a pharmaceutical manufacturing facility, tri - clamp connections allow for quick disassembly and cleaning of the valve to maintain a sterile environment.

Step 6: Determine Valve Size and Flow Characteristics

Proper sizing ensures optimal performance and reliability.

• Valve Size: Select the valve size based on the pipeline diameter, flow velocity, and pressure drop. A valve that is too small may cause excessive pressure drop and restrict flow, while a valve that is too large may lead to inefficient operation.

• Flow Characteristics: Consider the valve's flow coefficient (Cv) to ensure it meets the required flow - control demands. A high Cv value indicates that the valve can pass a large volume of fluid with relatively low pressure drop, which may be necessary in applications with high - flow requirements.

Step 7: Verify Compliance with Standards

Ensure the diaphragm valve meets relevant industry quality and safety standards.

• Compliance: Check for compliance with standards such as API, ANSI, ASTM, and FDA (for food and pharmaceutical applications). Compliance with these standards ensures that the valve meets certain quality and safety benchmarks.

• Certifications: Look for valves certified by reputable organizations to guarantee adherence to industry standards. A valve with proper certifications provides peace of mind and indicates that it has undergone rigorous testing.

Conclusion

Choosing the right diaphragm valve demands careful consideration of application requirements, valve type, materials, end - connections, size, and compliance with industry standards. By following this step - by - step guide, you can confidently select the ideal diaphragm valve to meet your specific needs, ensuring the best performance and reliability of your fluid control system. Throughout the selection process, consult industry experts and trusted suppliers, like MTD Actuator Valve, for further guidance and support. If you're interested in diaphragm valves, feel free to reach out with any inquiries.
