Views: 3 Author: Site Editor Publish Time: 2026-05-21 Origin: Site
Valves, as a linchpin of fluid control systems, are indispensable in industry, construction, and production. Their function to regulate, control, and halt fluid flow has a direct bearing on the stability, efficiency, and safety of engineering systems. In industrial settings, for instance, valves manage the flow of raw materials, while in construction, they control water and gas distribution, ensuring smooth operations across various sectors.
The material chosen for a valve significantly influences its performance, dictating properties like corrosion resistance, wear resistance, and strength. Opting for the right material can prolong a valve's lifespan, cut down on maintenance costs, and guarantee reliable system operation under diverse environmental conditions. In a coastal industrial plant, for example, a valve made of corrosion - resistant material will withstand the salty air better, reducing the frequency of replacements and system disruptions.
This article delves into various valve materials, both metallic (stainless steel, brass, and cast iron) and non - metallic (plastics, ceramics, and rubber), exploring their properties and applications. It offers detailed guidance on picking the most suitable material for your project, enabling you to make well - informed and dependable material choices.
Stainless steel is renowned for its outstanding corrosion resistance, making it the go - to choice for industrial environments where high - level corrosion protection is a must. Its excellent high - temperature resistance also makes it suitable for high - temperature fluid control systems, such as those in the petrochemical and power industries. In the chemical industry, stainless - steel valves can handle corrosive chemicals without succumbing to degradation. In food processing, their hygienic properties ensure compliance with strict food safety standards, and in medical equipment, they maintain a sterile and corrosion - free environment.
Brass, with its good thermal conductivity, is well - suited for applications that demand rapid heat transfer, like air - conditioning and heating systems. Its relatively low cost makes it an economical option, particularly in low - and medium - pressure applications. In water supply systems, brass valves are commonly used to control water flow. In air - conditioning and refrigeration units, its thermal properties contribute to efficient heat exchange. It also finds application in some chemical industry segments where its corrosion resistance and cost - effectiveness are advantageous.
Cast iron's high strength and good wear resistance make it ideal for industrial applications with large flow rates and high pressure differences. In water treatment plants, cast - iron valves can endure the constant flow of water and potential abrasion from suspended particles. In the petrochemical industry, they can withstand the high - pressure flow of hydrocarbons. In heating systems, their durability and stability ensure long - term, reliable operation.

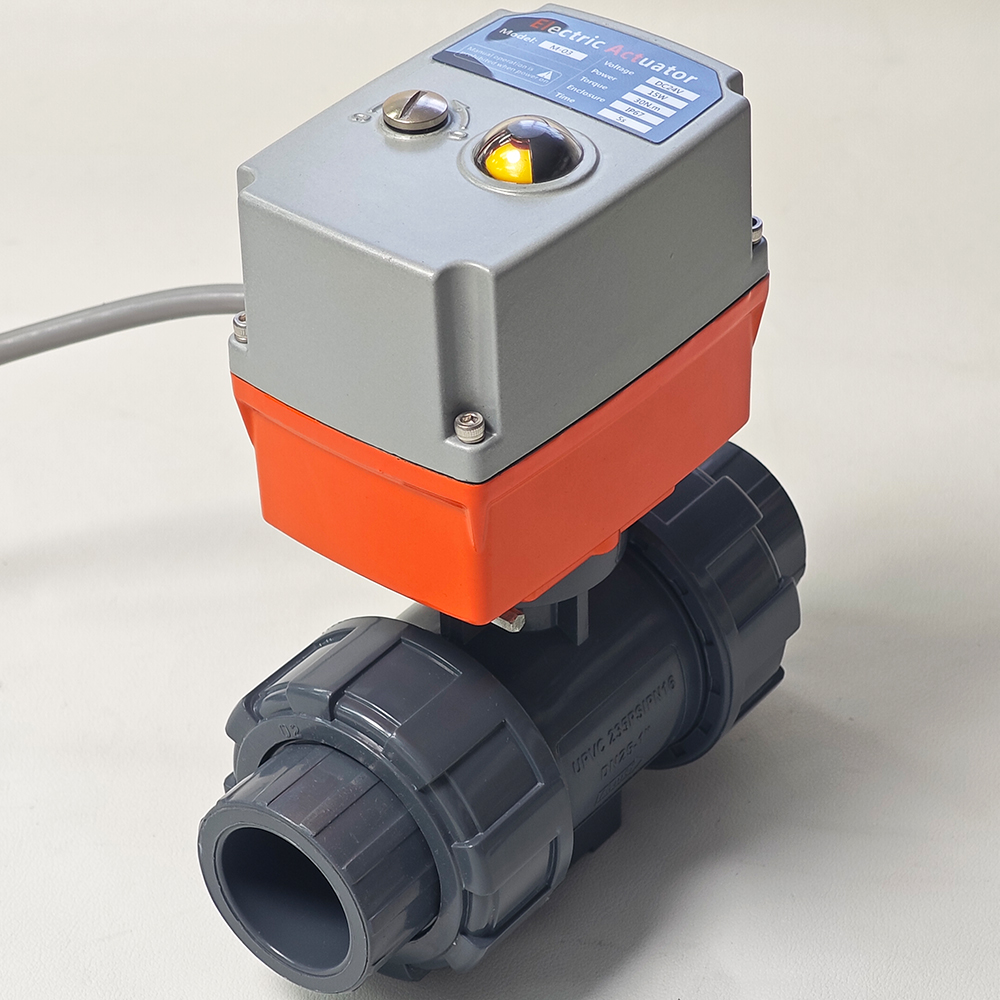

Plastic valves are lightweight and easy to process, and they exhibit good tolerance to corrosive media, making them suitable for the chemical industry and water treatment. However, due to temperature limitations, they are not suitable for high - temperature and high - pressure environments. Nevertheless, in many general industrial scenarios, they perform admirably. For example, in small - scale chemical laboratories or low - pressure water treatment systems, plastic valves can provide a cost - effective and corrosion - resistant solution.
Ceramic valves, being super - hard materials, possess strong wear resistance, making them perfect for environments with severe wear, such as pulverized coal conveying systems. Their excellent corrosion resistance also allows them to operate stably for extended periods in industries like chemical processing and mining. In a chemical plant dealing with abrasive and corrosive substances, ceramic valves can maintain their integrity and functionality over time.
Rubber valves are highly regarded for their excellent sealing performance, making them suitable for applications with strict leakage requirements, such as the food and pharmaceutical industries. Rubber's good elasticity and tolerance to corrosive media also make it a popular choice in water treatment and sewage treatment. In food production, rubber valves prevent product contamination, and in sewage treatment plants, they ensure that no leaks occur, safeguarding the environment.
When selecting a valve material, it's crucial to consider the fluid's chemical composition, temperature, and pressure. These factors determine the material's ability to resist the medium. For example, a highly acidic fluid may require a valve material with exceptional acid - resistance properties.
The ambient environmental conditions, including humidity, climate, and external pressure, also play a significant role. A material that is stable in a dry environment may not be suitable for a humid or high - pressure one. For instance, in a tropical climate with high humidity, a material resistant to rust and moisture - related degradation should be chosen.
Different valve materials have varying degrees of suitability for different fluid types. Factors such as the fluid's pH, viscosity, etc., need to be taken into account. A highly viscous fluid may require a valve material that can handle the increased resistance without impeding flow.
For fluids with high flow rates or high pressures, the valve material must be able to withstand these conditions. In a high - pressure gas pipeline, the valve material should have sufficient strength to prevent leakage or rupture.
It's essential to balance the cost and performance of materials. While high - performance materials may offer superior properties, they may also come with a higher price tag. It's important to choose a material that provides the best performance within your budget constraints. For a cost - sensitive project, a less expensive material with adequate performance may be the right choice.
Material durability and maintenance requirements also factor into the long - term operating costs. A material that requires frequent maintenance or has a short lifespan may end up being more expensive in the long run. For example, a valve made of a durable material with low maintenance needs may have a higher initial cost but lower overall costs over its lifetime.
In high - wear environments, selecting a material with good wear resistance is crucial to extend the valve's lifespan. In a mining operation where the valve is exposed to abrasive materials, a wear - resistant material like ceramic or certain alloys can reduce the need for frequent replacements.
The selected material must remain stable within the operating temperature range of the valve. Temperature fluctuations can cause some materials to expand, contract, or degrade, leading to performance issues. For high - temperature applications, materials like stainless steel or certain ceramics are preferred due to their heat - resistant properties.
The advancement of nanotechnology holds great promise for valve manufacturing. New nanomaterials could enhance valve strength, corrosion resistance, and thermal conductivity. For example, nanocoatings applied to valve surfaces could provide an extra layer of protection against wear and corrosion.
Combining different materials to create composites is another emerging trend. These composites can possess multiple desirable properties, catering to a broader range of engineering needs. For instance, a composite material made of a metal and a polymer could offer both the strength of the metal and the corrosion resistance of the polymer.
Future valve designs will likely focus more on eco - friendliness. This could involve using renewable and degradable materials to minimize the environmental impact. For example, bio - based plastics or recycled metals could be used in valve construction.
The new generation of valves will place greater emphasis on energy efficiency. Through optimized design and material selection, valves can reduce energy consumption. For example, materials with low flow resistance can be used to minimize the energy required to pump fluids through the valve.
Smart materials with self - healing capabilities could revolutionize valve design. Future valves might be able to automatically repair minor damage, thereby extending their service life. This could significantly reduce maintenance costs and downtime.
Integrating sensors and intelligent control technology into valves would enable them to automatically sense and adapt to environmental changes. For example, a valve could adjust its opening based on changes in fluid pressure or temperature, optimizing system performance.
The development of 3D printing technology is set to transform valve manufacturing. It can enhance production efficiency and flexibility, allowing for the rapid prototyping and production of complex valve designs. This technology could also reduce material waste.
By embracing the Industry 4.0 concept, valve manufacturing processes can be digitally monitored and automated. This improves production quality and traceability, ensuring that each valve meets strict quality standards and its production history can be easily tracked.
Selecting the right valve material is pivotal for the performance and reliability of an engineering system. A comprehensive evaluation of the engineering environment, fluid properties, economic aspects, and operational requirements is essential for making the right choice.
Looking ahead, the valve industry will witness more innovations with the advent of new materials, growing environmental consciousness, and the application of intelligent technology. Engineers should stay abreast of these trends and leverage new materials and technologies to ensure optimal valve performance in an evolving engineering landscape.
By having a deeper understanding of material properties, we can more precisely guide engineering material selections, ensuring that valves perform at their best in various applications.
