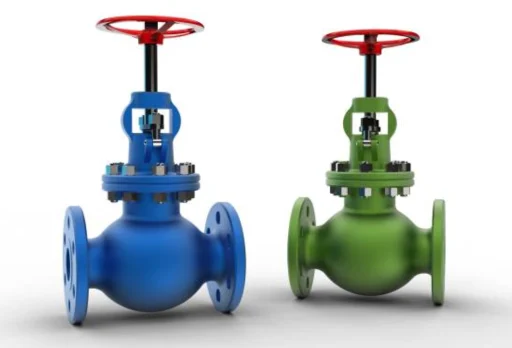

What is a Globe Valve?

A globe valve is a linear - motion power - driven device primarily employed to prevent, open, and regulate fluid flow. Named after its spherical - shaped body, modern designs have been adapted to suit diverse industrial processes. Its internal components consist of a movable plug (or disk) and a fixed ring seat within a more - or - less spherical housing. The fluid in a globe valve follows an “S” - shaped path, necessitating a change in flow direction, which endows it with excellent throttling capabilities. This valve offers highly predictable and repeatable flow control by precisely adjusting the distance between the plug and the seat, making it the industry standard for precision control in high - pressure applications.

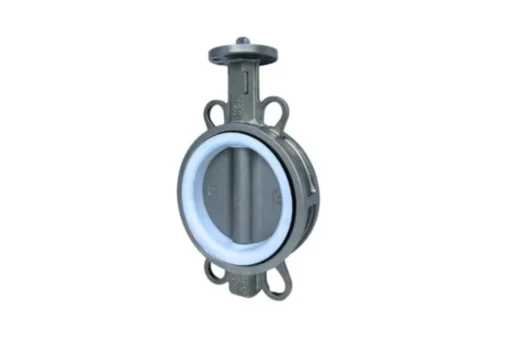

What is a Butterfly Valve?

The butterfly valve is a quarter - turn, rotary - motion valve, characterized by a circular disc positioned in the middle of the pipe. This disc is attached to a rod that extends outside the valve body to an actuator or handle. When the disc rotates to the closed position, it fully blocks the passage, and in the fully open position, the passage is nearly unobstructed. Its compact wafer or lug shape allows for installation in confined spaces where other valve types would be inconvenient. Modern industrial butterfly valves are valued for their simple design, lightweight construction, and rapid operation.

Mechanical Design Differences: Linear vs. Rotary Motion

Globe Valve's Linear Motion

The mechanical design of the globe valve is based on a linear motion system. The stem pushes the plug vertically towards or away from the seat to operate the valve. This movement is typically achieved through a multi - turn threaded stem, providing a high mechanical advantage. This design enables the operator or actuator to make minute adjustments to the flow orifice, acting like a meticulous gatekeeper, precisely regulating each unit of flow. However, this accuracy comes at the cost of speed; the linear distance the valve must travel to open or close is significantly longer compared to rotary - type valves. Additionally, the valve ends need to be robust enough to withstand the forces of linear thrust.

Butterfly Valve's Rotary Motion

Conversely, the butterfly valve operates on the principle of rotation. A ninety - degree rotation of the disc allows for a swift transition between full shut - off and full flow, meeting the demands of rapid operation in time - sensitive chemical reactions. In most low - pressure applications, this rotary movement requires less torque compared to the lifting force needed to actuate a large globe valve plug. Mechanically, the butterfly valve is much smaller. Since the disc remains in the flow path when open, the face - to - face dimension of the valve body is small, making the butterfly valve approximately 70 percent lighter than a globe valve of the same nominal diameter. In an industrial piping system, the butterfly valve functions like a fast - acting muscle in the circulatory system, designed for high - volume efficiency rather than microscopic adjustment.

Stem Sealing Differences

Furthermore, the stem - sealing mechanisms of these two valves differ. Globe valves typically feature a rising stem, which may experience wear after thousands of cycles, though current bellows seals have mitigated the risk of leakage. In contrast, butterfly valves operate with a rotating stem. In high - performance triple - offset designs, the stem has virtually zero friction against the seat until the final moment of closure, significantly extending the service life of the sealing surfaces.

Performance Showdown: Pressure Drop and Throttling Capabilities

Pressure Drop and Long - term Energy Efficiency

Any disruption to fluid flow results in a loss of kinetic energy, manifested as a pressure drop (ΔP). In a globe valve, the fluid must turn 90 degrees to enter the seat area and another 90 degrees to exit. The frictional resistance encountered during these turns, as dictated by the laws of physics, causes a pressure drop. While this turbulence enables precise throttling, it also represents a permanent energy loss in the system. Over a decade of operation, the electricity required to overcome the resistance of multiple globe valves can be substantial.

On the other hand, the butterfly valve has a high Flow Coefficient (Cv). In the fully open position, the flow is only obstructed by the thin profile of the disc, resulting in a significantly reduced pressure drop. This makes the butterfly valve an ideal choice for large - scale water distribution or cooling systems, where energy conservation is a crucial Key Performance Indicator (KPI). Its energy profile is particularly well - suited for high - volume, low - pressure applications.

Sealing Integrity: Bubble - tight vs. Triple Offset

Historically, the globe valve had a reputation for achieving bubble - tight shut - off. The plug is pressed firmly onto the seat, creating a robust seal capable of withstanding high differential pressures without leakage. This made the globe valve the preferred choice for critical isolation in steam lines or volatile chemical processing.

However, the development of the Triple Offset Butterfly Valve (TOV) has narrowed this gap. The disc in a TOV slides into the seat using a geometry where the stem is not centered on the disc and seat, preventing the disc and stem from rubbing or sliding against each other as in traditional concentric butterfly valves. Modern butterfly valves can now achieve the same high leakage classes (such as API 598 or ANSI Class VI) as globe valves, even in high - temperature or high - pressure applications that were once the exclusive domain of linear valves.

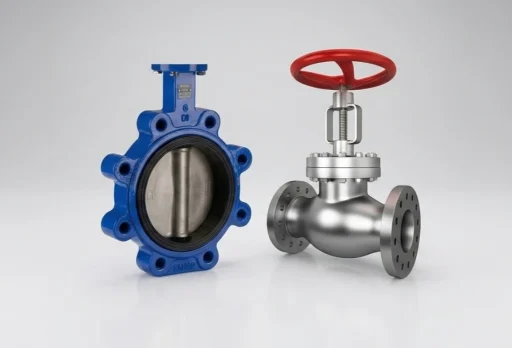

Comprehensive Comparison: Globe Valve vs. Butterfly Valve

Cost and Maintenance Comparison: Initial Investment vs. Life - Cycle Expenses

Initial Investment (CAPEX)

For smaller pipe sizes (less than DN50 or 2 inches), the cost difference between a globe valve and a butterfly valve is negligible. However, as the nominal pipe size (NPS) increases, the cost - efficiency of the butterfly valve becomes more apparent. A globe valve in sizes DN150 (6 inches) and larger is prohibitively heavy and expensive due to the large amount of cast or forged metal required for its body. For instance, a 12 - inch globe valve could be ten times heavier than a 12 - inch butterfly valve, not only increasing the valve cost but also escalating the costs of piping supports, hangers, and installation labor.

Maintenance and Operating Expenses (OPEX)

Globe valves have a distinct advantage in terms of in - line repairability. Most globe valves are designed in such a way that the bonnet can be removed, and the seat and plug can be lapped or replaced without removing the entire valve body from the pipeline. This is particularly time - saving in plants where the piping is welded.

Butterfly valves, while simpler in construction, may require the entire valve to be removed from the line if the seat (especially a soft seat) is damaged. However, due to the reduced number of moving components and lower friction (in triple - offset designs), the frequency of maintenance procedures is often reduced. The choice between the two then depends on whether a facility prefers an easy - to - fix (globe) or hard - to - break (butterfly) option.

Best Application Scenarios: Where Each Valve Shines

Globe Valves

• Precision Throttling: Ideal for applications where flow needs to be controlled within a specific percentage, such as in boiler feed water systems.

• High - Pressure Steam: Well - suited for steam headers due to their strong shut - off capabilities and ability to handle high differential pressures.

• Frequent Cycling: Systems where the valve is opened and closed numerous times per day benefit from the rugged seat design of the globe valve, which can withstand the abrasion of frequent contact.

Butterfly Valves

• Large Bore Pipelines: In water treatment, desalination, and large - scale cooling loops where space and weight are constraints, butterfly valves are the go - to choice.

• Slurries and Viscous Media: The straight - through flow of a butterfly valve prevents the accumulation of solids that could block the “S” - path of a globe valve, making it suitable for handling slurries and viscous substances.

• Vacuum Service: Some high - performance butterfly valve designs maintain excellent integrity in a vacuum environment.

Selection Guide: Questions to Ask Before Your Purchase

Before finalizing a valve specification that will determine the operational balance of the system, engineers should consider the following five important questions:

• Control Necessity: If the application requires flow modulation within a 1% error margin, a globe valve is essential. If the objective is mostly open or mostly closed operation, a butterfly valve suffices.

• Permissible Pressure Drop: Is the system over - pumped, or is energy efficiency a primary concern? If high Cv requirements are present, the butterfly valve is the better option.

• Space and Weight Limitation: The mass of a 10 - inch globe valve can pose structural challenges in offshore platforms or skid - mounted units. Consider the available space and weight constraints.

• Media Characteristics: Globe valves can trap debris in their internal cavities. If the media is “dirty” with suspended solids, a butterfly valve, which allows free passage of such solids, is more appropriate.

• Automation Requirements: Although both valves can be automated, the torque and mounting of actuators vary significantly. Consider the automation needs of the process.

From Manual to Automated: Optimizing Control with Advanced Actuation

In the era of Industry 4.0, a valve's effectiveness is closely tied to its control system. Replacing manual handwheels with automated actuation is a crucial step in enhancing plant safety and throughput. While the globe valve offers the “mechanical resolution” for fine control, it requires an actuator with high - force linear thrust. The butterfly valve, on the other hand, needs a rotary actuator, either pneumatic or electric, capable of providing high torque, especially at the point of seat break - out.

Automation is not a luxury but a necessity to prevent water hammer, control surge pressures, and ensure valves fail to an acceptable position in the event of a power failure. Integrating a high - quality valve with a precision - matched actuator is the key to realizing the theoretical performance of the valve design in the field.

Why Choose MTD Actuator Valve for Your Flow Automation Needs

At MTD Actuator Valve, we view the valve and its actuator as a single, high - performance system, rather than separate components. Since our establishment in 2010, we have amassed over 15 years of specialized automation expertise, serving the world's most critical fluid environments. This ensures your project is based on certainty, not speculation.

Here's why process leaders choose MTD Actuator Valve for their automation needs:

• Sector - Proven Reliability: We provide intelligent fluid solutions across water treatment, petrochemicals, and renewable energy sectors. Leveraging over 15 years of field - tested data, we solve complex flow challenges.

• Rigorous Quality Assurance: Our technicians conduct extensive pressure, leakage, and lifecycle tests, with a qualification rate exceeding 95%. Every unit leaving our facility exceeds safety standards.

• Bespoke Technical Flexibility: From specialized material metallurgy to customized configurations in pressure and control modes, we adapt our valves to your specific media and environmental constraints.

• Integrated Engineering Support: Our expert team eliminates the “compatibility gap” by offering factory - calibrated assemblies and end - to - end technical guidance, ensuring seamless integration into your existing infrastructure.

Conclusion

The debate between globe and butterfly valves does not have a one - size - fits - all winner; the choice depends on the specific situation. The globe valve reigns supreme in terms of accuracy and high - pressure integrity, while the butterfly valve excels in efficiency, economy, and space - saving design. A successful engineer is one who accurately identifies the main limitations of their system, whether it's energy loss, installation weight, or throttling accuracy, and selects the valve architecture that minimizes trade - offs. By understanding these technical trade - offs and harnessing the power of advanced automation, you can be confident in the resilience and cost - effectiveness of your infrastructure over the long term.
