In the modern industrial landscape, selecting the correct size and specifications of a butterfly valve is not merely a paperwork requirement but one of the cornerstones of process reliability and hydraulic balance. As systems evolve towards greater complexity and tighter tolerances, the butterfly valve has transformed from a simple isolation device into a sophisticated flow - control and regulation tool, capable of delivering optimal performance under diverse flow demands.
This guide serves as an analytical tool for engineers who need to navigate the intricate interplay between standardized geometric parameters and the unique requirements of specific pipeline topologies. We will discuss the structural basis of sizing standards, the transition from manual to automatic modes, and the methods required to achieve accurate on - site verification. This presentation aims to provide the necessary technical clarity, ensuring smooth system integration and long - term operational integrity by harmonizing international standards with on - site needs.
The importance of butterfly valve sizes extends far beyond the physical space they occupy. Size precision is a primary limiting factor in the fields of fluid mechanics and structural engineering, upon which the safety, durability, and efficiency of high - pressure pipeline systems are built. When an engineer orders a valve, they are, in effect, defining a critical node within a complex network; any deviation from the expected geometry can trigger a cascade of structural and economic failures.
Structurally, the most unforgivable parameter is the face - to - face dimension. In inflexible pipeline systems, the spacing between flanges is pre - determined. If a replacement valve is a few millimeters thinner than the original specification, the axial stress required to push the valve into place could compromise the integrity of the pipeline supports or even the flanges themselves. Conversely, if the valve is too thin, additional gaskets or shims may need to be installed, adding new potential leakage points to the system.
Economically, the consequences of size deviation are staggering. In the case of a planned plant turnaround, discovering that a valve's size is non - compliant could lead to hot - work or emergency production of valve components. These delays not only increase labor costs but also result in lost production time, the opportunity cost of which is likely to exceed the cost of the valve itself. Moreover, size is the structural DNA of a pipeline project, and any alteration to this code during the procurement phase could render parts of the entire hydraulic network dysfunctional.
Finally, there is the long - term maintenance cycle. Standardized sizes ensure interchangeability, meaning that equipment can be replaced with products from other manufacturers without redesigning the infrastructure. In today's increasingly volatile supply chain, the ability to replace a valve according to standardized dimensions is a key risk - mitigation strategy for operations.
The core standards for butterfly valve sizes are the ultimate geometric reference points within the strict structure of a hydraulic network, ensuring optimal performance and making the physical footprint of components a predictable variable rather than a trade secret. Knowledge of these standards is knowledge of the “axial and radial constraints” that enable the global supply chain to operate without mechanical friction. These agreements are not mere size recommendations; they are the codification of the precise spatial coordinates and correct measurements that a valve must occupy to achieve the state of “universal interchangeability”.
These dimensions are stipulated by the pillars of the American Petroleum Institute (API) and the European Committee for Standardization (CEN). In this regard, API 609 is the most authoritative standard, which defines the Face - to - Face (L) patterns for various functional categories.
Class A (Concentric) Sizes: These valves are named in short - and long - pattern types. The standard requires an inclined type, meaning these valves can be installed in the narrowest of manifolds.
Class B (High - Performance) Sizes: In this case, the standard takes into account the volume requirements of an eccentric geometry. These valves conform to the larger dimensions specified in ASME B16.10, where the structural length is increased to accommodate the complex sealing systems required for higher pressure ratings.
The EN 558 and ISO 5752 standards provide the basic series (BS) system for the international metric geometric blueprint. The numbering of each series is a mathematical directive: a wafer valve of basic series 20 should have the same longitudinal footprint, regardless of the manufacturer. By adhering to these sizing standards, engineers can minimize technical issues in projects, subjecting the process of translating a CAD concept into an actual installation to the control of mathematical certainty rather than on - site improvisation.
While the core standards provide the legal framework, the global sizing reference tables are the mathematical reality in the field. Navigating these tables is a technical exercise involving the harmonization of two different engineering philosophies: the imperial (NPS/Inches) and metric (DN/mm) systems for different - sized butterfly valves. This international interchangeability is the result of the arduous task of codifying international agreements, primarily API 609 and EN 558.
The dimensions within this analytical framework are essentially structural responses to pressure ratings. As the pressure rating increases between Class 150 and Class 300, the increase in the bolt - circle diameter (BCD) and flange thickness is non - linear, especially to reduce hoop stress and seat loading. For design engineers, the face - to - face dimension (L) is a fixed anchor within the pipeline topology; it is the non - negotiable axial footprint that determines the distance between flanges.
To achieve an exact physical match, it is necessary to look beyond the nominal size and examine the BCD, the hypothetical circle that epitomizes mechanical integrity. A difference of even 2 millimeters can turn a valve into an expensive paperweight, a silent predator of precision, often discovered only at the final stage of production when parts are lifted by crane.
Standard Size Reference Table for Class 150 Wafer Butterfly Valves:
Size (NPS) | Size (DN) | Face - to - Face (L) | Bolt - Circle (BCD) | Bolt Holes (n - Φ) |
|---|---|---|---|---|
2″ | 50 mm | 43 mm | 120.7 mm | 4 - 19 mm |
3″ | 80 mm | 46 mm | 152.4 mm | 4 - 19 mm |
4″ | 100 mm | 52 mm | 190.5 mm | 8 - 19 mm |
6″ | 150 mm | 56 mm | 241.3 mm | 8 - 22 mm |
8″ | 200 mm | 60 mm | 298.5 mm | 8 - 22 mm |
12″ | 300 mm | 78 mm | 431.8 mm | 12 - 25 mm |
Data compiled from API 609 and ASME B16.10 specifications for reference only.
The size of a butterfly valve is determined by the body style and the complexity of its internal design. To maximize the density of pipe racks and ease of installation, it is essential to understand the spatial trade - offs between these styles.
Wafer Valves: These are the slimmest sentinels in the pipeline world, squeezed between two pipeline flanges. Their primary size characteristic is their thinness, especially for smaller sizes; the valve body has no bolt holes of its own and is centered on the bolts of the surrounding flanges. This design reduces material consumption and weight, making it the choice for systems where space and cost are critical factors. However, due to the lack of independent bolt holes, it cannot be used for end - of - line services, and removing the downstream pipeline will leave the valve unsupported.
Lug Valves: On the other hand, these valves have threaded inserts (lugs) around their circumference. They are slightly more robust in size compared to wafer valves as they must accommodate the threaded holes that mate with the pipeline flanges. This allows the valve to be clamped to each flange, enabling end - of - line services, i.e., the downstream pipeline can be removed, and the valve can remain in place under pressure.
Double - Flanged Valves: These valves have their own flanges that are bolted to the pipeline flanges. They are typically used for large - bore applications or buried services. Compared to wafer or lug - type valves, they have a longer face - to - face dimension and require a larger clearance within the pipeline. This is the most stable structural type, often used in high - pressure water transmission pipelines.
The external dimensions of a valve also depend on its internal geometry. The most common are Concentric (Center - Line) Butterfly Valves: The valve stem passes through the middle of the disc, resulting in a simple structure. These valves have a common rubber - lined seat mechanism, which is not very thick and is suitable for flow regulation.
Eccentric Designs such as double - offset and triple - offset valves require a more robust valve body. Since the valve stem is not centered on the disc and seat, the valve body should be thick enough to support the complex rotation curve of the disc. A triple - offset valve, for example, has a conical sealing geometry and thus requires a long - pattern valve body to allow the disc to rotate fully without contacting the connected pipeline. Changing from a concentric to an eccentric design is an effective way to transform a valve into a “Class B” size profile, which may double the required face - to - face distance.
Although standards provide a reference point, the choice of materials and certain construction techniques can cause size deviations that engineers need to consider. There is a common misconception that all butterfly valves are sized identically; in fact, the chemical composition of the valve and its lining can alter its physical dimensions.
For example, PTFE or PFA is often used to line butterfly valves in chemical processing and for handling highly corrosive chemicals. This lining is not a simple inner coating; it often wraps around the valve surface and acts as a gasket. This gasket - like surface adds a certain thickness to the end - to - end dimension. When an engineer calculates the clearance between pipes using a bare - metal carbon - steel or stainless - steel valve and then installs a PTFE - lined valve, the additional 3 - 5 mm of lining may prevent installation without applying excessive stress to the pipeline.
High - performance triple - offset designs use a partial construction technique of metal and graphite laminated seals. The mechanical housing required to secure this laminated seal may necessitate a “long - pattern” valve body style. Additionally, extreme - temperature (cryogenic or high - heat) valves have extended bonnets to clear the valve - stem packing from the heat source. This significantly increases the center - to - top (C - T) dimension, which may not be captured by typical short - pattern tables.
Furthermore, plastic butterfly valves (PVC, CPVC, PVDF) have entirely different sizing standards (including DIN or ASTM plastic pipeline standards). Their wall thickness is significantly higher than that of metal butterfly valves to counteract the reduced tensile strength of polymers for higher performance. As a result, plastic butterfly valves almost always have a larger external envelope compared to metal butterfly valves of the same nominal diameter.
In the industry, when the nameplate is lost or corroded beyond recognition, engineers must determine the correct size of a butterfly valve through manual verification. The measurement process of a butterfly valve is a technical ritual that requires precise tools and an orderly procedure.

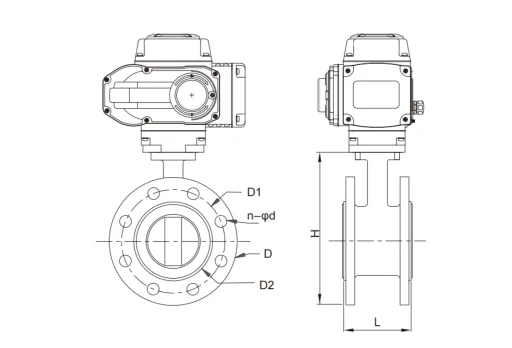

Face - to - Face: The face - to - face dimension (L) is the axial distance between the two flow - contacting surfaces. A calibrated vernier caliper should be used for measurement. For wafer and lug valves, the metal - edge - to - metal - edge distance should be used. However, if the valve has a built - in rubber seat that wraps around the surface, it should be specified whether to measure the uncompressed or compressed thickness. The standard length in the pipeline industry is usually the distance between metals, assuming that the gasket or seat will compress to a predetermined value.
Flange Connections: The bolt - circle diameter (BCD) needs to be measured to determine the pressure rating and standard (ANSI vs DIN). This is not the distance between adjacent holes but the diameter of the circle passing through the centers of all bolt holes. When the valve has an even number of holes, measure the distance from the center of one hole to the center of the opposite hole. Additionally, measure the diameter of one hole and count the number of holes. A 4 - hole pattern usually indicates a pressure of PN10 or lower, while an 8 - or 12 - hole pattern usually indicates a higher pressure rating, such as Class 150 or Class 300.
Valve Stem and Top Machining: The interface for the actuator is the top workpiece. You must measure the valve - stem outer diameter and the valve - stem height. The shape of the valve - stem head is also important: is it square, double - D (flat - sided), or key - slotted? Measure the distance between the flats of a square valve stem with a caliper. Finally, determine the bolt pattern on the mounting pad (ISO 5211 size), usually a 4 - hole square pattern.
Center - to - Top and Center - to - Bottom: The vertical clearance is determined by the center - to - top (C - T) and center - to - bottom (C - B). Measure the distance between the center of the inner bore, the top of the valve stem, and the bottom of the valve body. These dimensions are crucial to ensure that the valve does not hit the ground or an obstacle above.
Disc Clearance: Open the valve (90 degrees) and measure the disc chord. Since the disc rotates, it will extend beyond the face - to - face edges of the valve. If the connected pipeline has a thick lining or a small inner diameter (such as Sch 80 or Sch 160 pipes), the disc may hit the pipe wall. You need to check the “radial swing” to ensure the disc has a clear passage.
Total Envelope and Clearance: Finally, there is the total envelope. This is the space required for the handle or lever to move through the full 90 - degree range. Calculate the length of the lever and leave at least 50 mm of safety margin for the operator's hand. If the space is too narrow, a gear operator (handwheel) may be required, turning the envelope into a small box.
Automation transforms a valve into the brain of a fluid system, the cerebral cortex of the pipeline, necessary for precise flow control. However, this transformation triggers a volumetric expansion of components that can catch an unsuspecting engineer off - guard.

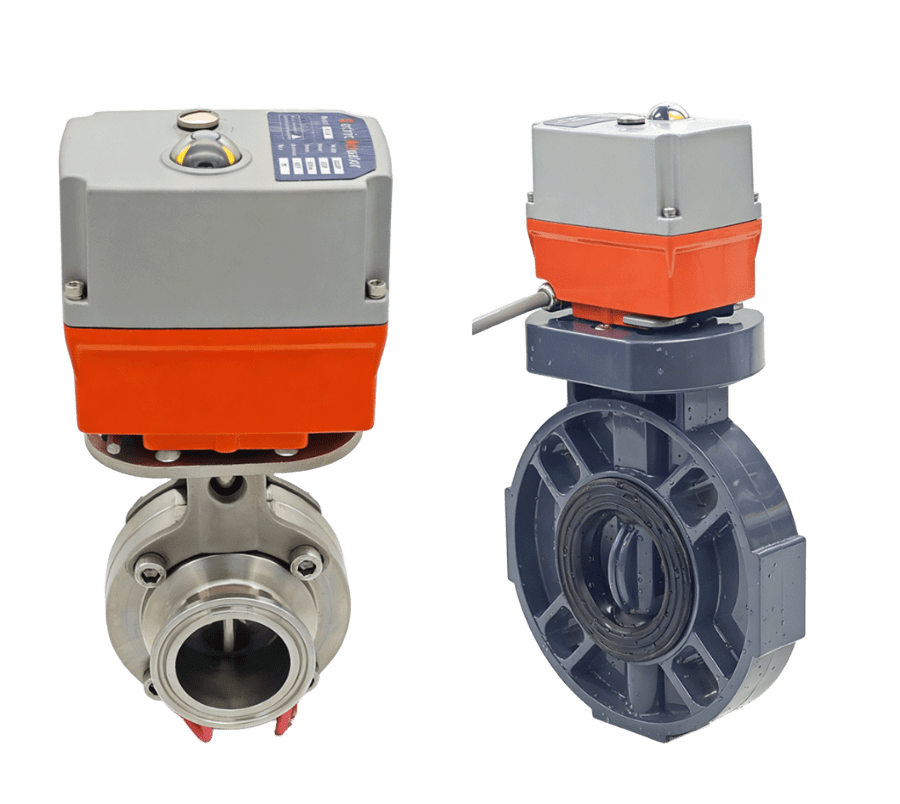

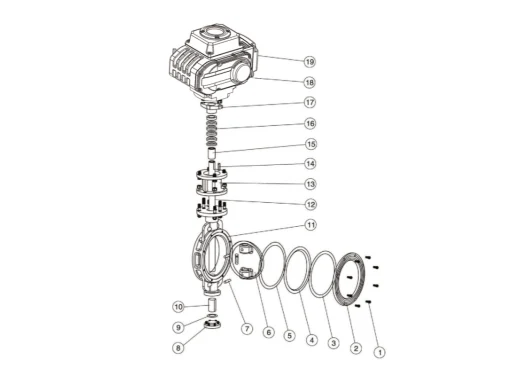

When an actuator (whether pneumatic, electric, or hydraulic) is connected to a butterfly valve, the size profile is no longer a two - dimensional plate but a three - dimensional tower. This is typical in demanding industries such as HVAC, mining, and power generation. The center - to - top (C - T) height usually increases by 200% to 500%. For example, a 6 - inch butterfly valve in manual form may be only 10 inches in height, but with a pneumatic actuator and a positioner added on top, the height can easily increase to 30 inches.
In addition to height, we must consider the lateral clearance. The cylinders of pneumatic actuators extend horizontally. When the valve is installed in a narrow manifold, these cylinders may come into contact with other pipes. Moreover, modern automation requires peripheral devices: solenoid valves, limit - switch boxes, air - filtering regulators. All these add protrusions to the valve housing.
Automation also brings torque issues and the need to align the valve's cv (flow coefficient) with system requirements. The higher the pressure, the greater the torque required to rotate the disc, thus necessitating a larger actuator. The mounting pad of this larger actuator must be more robust (ISO 5211 standard). If the valve - body top is too small to accommodate the required actuator size, a bridge or bracket may be needed, which also increases the vertical dimension. In this mode, the valve size is not a fixed entity but a dynamic variable that should be controlled so that the entire assembly fits within the operational range of the equipment.
Manual vs Automatic Assembly (Reference Benchmarks):
The following data represents the “geometric configuration” of a Class 150 standard concentric butterfly valve equipped with a typical double - acting pneumatic actuator.
Nominal Size (NPS) | Manual C - T Height (mm) | Automatic C - T Height (mm) | Actuator Width/Clearance (mm) | Estimated Weight Increase (%) |
|---|---|---|---|---|
2 inches (DN50) | 140 | 385 | 180 | 350% |
3 inches (DN80) | 160 | 420 | 210 | 380% |
4 inches (DN100) | 185 | 510 | 240 | 420% |
6 inches (DN150) | 210 | 680 | 320 | 450% |
8 inches (DN200) | 250 | 840 | 410 | 500% |
12 inches (DN300) | 310 | 1,150 | 560 | 620% |
All dimensions are approximate, for reference only, and for preliminary space allocation.
Navigating the sizing matrix of automated valves places a significant cognitive burden. Coordinating different suppliers often leads to the “mismatch trap”, where valve manufacturers, actuator suppliers, and bracket manufacturers operate in isolated technical silos. MTD Actuator Valve founded in 2010, is an architect of fluid control, offering intelligent solutions.
