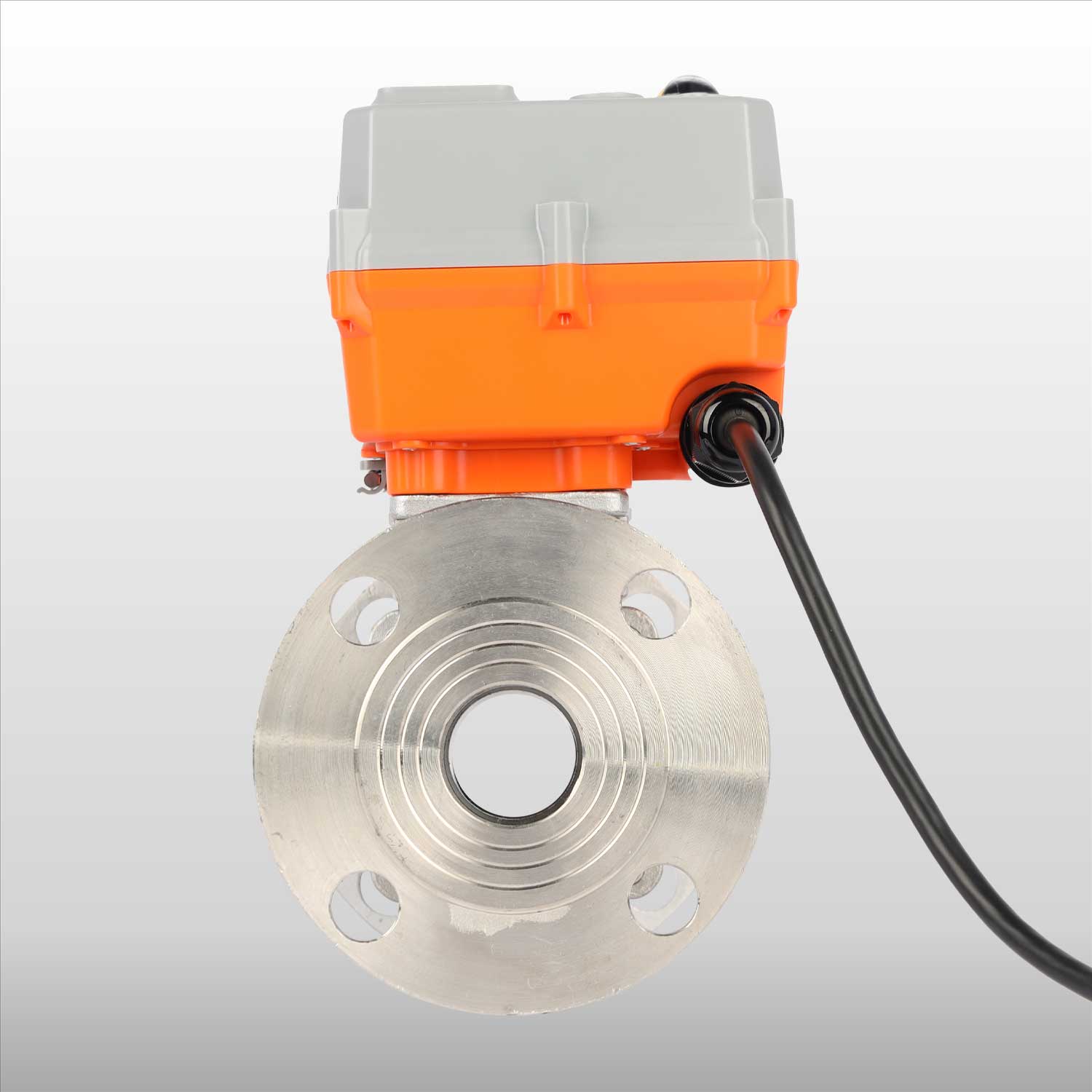

DN15-DN100
SS304, SS316
232psi
American standard, German standard
ISO5211(F03/F05/F07/F10)
Accessories: 0.8m cable wires; bracket&screw;with manual override
Customized: high platform bracket&screw ,extra wires length
Rated Torque: 10Nm-2000Nm
Enclosure level: IP67
Housing material: ABS/Die-casting aluminum
Rated Voltage: DC12V、DC24V、AC24V、AC110V、AC230V、AC/DC24V、AC/DC95~265V
Modulating control mode: 0~5V、1~5V、0~10V、2~10V、0~20mA、4~20mA
Install Actuator: ON &OFF Actuator, Modulating Actuator, Failsafe capacity Actuator, RS485 Series Actuator, Intelligent on&off Actuator, Intelligent Modulating Actuator
Functions Ordered: High speed On/Off Type,Power Off Reset Type,PID Type,Nb_lot Type
Features 1 Multi-position mode can be realized
Features 2 High performance brushless motor, overheat/overload protection of internal motor.
Features 3 Service life-20000 cycles (Max:9371648 times)
What is the electric valve?
MTD electric valve is a high-end product in automatic control valve. It uses electric energy as power to drive the valve in the lower half with the electric actuator in the upper half, which can not only realize the opening and closing of the valve, but also realize the valve position adjustment function by its modulating type, so as to achieve the purpose of opening, closing or regulating the pipeline medium.
How many types can electric valve be divided? And how about the electric actuator?
In MTD actuator valve, you can find the electric valve can be divided into on and off type and modulating type according to the valve position function; According to the valve position, it can be divided into: electric ball valve and electric butterfly valve; According to the shape of the valve body, it can also be divided into ordinary compact electric valve and mini electric valve.
The stroke of the electric actuator can be divided into two types: 90°angle stroke and straight stroke. If you have special requirements, our MTD actuator can also meet the full stroke of 180°, 270° and 360°. The angular stroke electric actuator is used with the angular stroke valve to realize 90° internal rotation of the valve to control the flow on and off; The straight stroke electric actuator is used with the straight stroke valve to realize the up and down action of the valve plate to control the flow on and off of the pipeline.
What material are MTD Motorized Valves Made of?
The housing of MTD electric actuator is made of ABS or Die casting aluminum, and the valve is made of plastic(uPVC, CPVC, PPH, PPR, PVDF), brass, stainless steel(304,316), ductile iron.
Accessories: 0.8m cable wires; bracket&screw;with manual override
Customized: high platform bracket&screw ,extra wires length
Rated Torque: 10Nm-2000Nm
Enclosure level: IP67
Housing material: ABS/Die-casting aluminum
Rated Voltage: DC12V、DC24V、AC24V、AC110V、AC230V、AC/DC24V、AC/DC95~265V
Modulating control mode: 0~5V、1~5V、0~10V、2~10V、0~20mA、4~20mA
Install Actuator: ON &OFF Actuator, Modulating Actuator, Failsafe capacity Actuator, RS485 Series Actuator, Intelligent on&off Actuator, Intelligent Modulating Actuator
Functions Ordered: High speed On/Off Type,Power Off Reset Type,PID Type,Nb_lot Type
Features 1 Multi-position mode can be realized
Features 2 High performance brushless motor, overheat/overload protection of internal motor.
Features 3 Service life-20000 cycles (Max:9371648 times)
What is the electric valve?
MTD electric valve is a high-end product in automatic control valve. It uses electric energy as power to drive the valve in the lower half with the electric actuator in the upper half, which can not only realize the opening and closing of the valve, but also realize the valve position adjustment function by its modulating type, so as to achieve the purpose of opening, closing or regulating the pipeline medium.
How many types can electric valve be divided? And how about the electric actuator?
In MTD actuator valve, you can find the electric valve can be divided into on and off type and modulating type according to the valve position function; According to the valve position, it can be divided into: electric ball valve and electric butterfly valve; According to the shape of the valve body, it can also be divided into ordinary compact electric valve and mini electric valve.
The stroke of the electric actuator can be divided into two types: 90°angle stroke and straight stroke. If you have special requirements, our MTD actuator can also meet the full stroke of 180°, 270° and 360°. The angular stroke electric actuator is used with the angular stroke valve to realize 90° internal rotation of the valve to control the flow on and off; The straight stroke electric actuator is used with the straight stroke valve to realize the up and down action of the valve plate to control the flow on and off of the pipeline.
What material are MTD Motorized Valves Made of?
The housing of MTD electric actuator is made of ABS or Die casting aluminum, and the valve is made of plastic(uPVC, CPVC, PPH, PPR, PVDF), brass, stainless steel(304,316), ductile iron.
