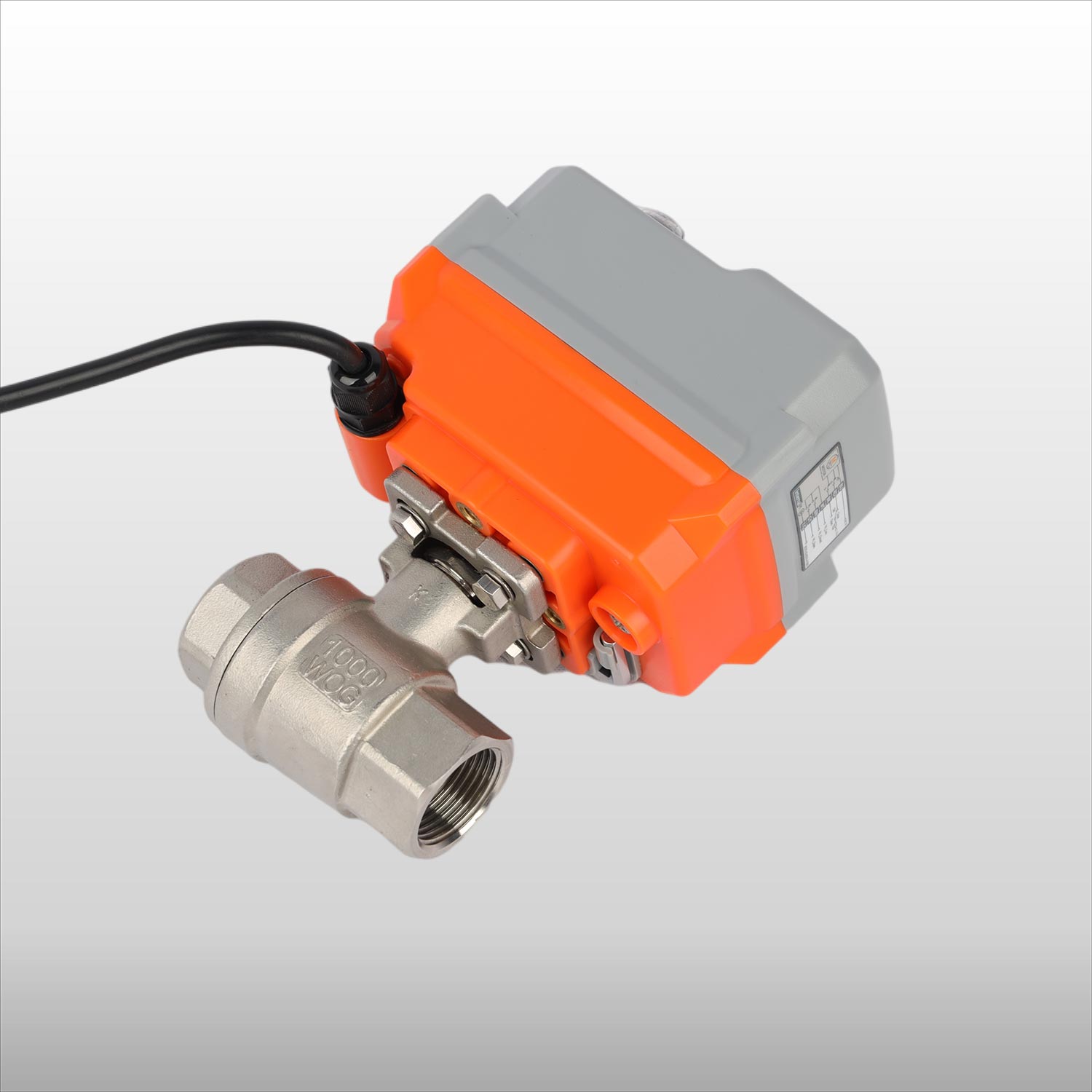

2 Way SS Valve Actuator

Size Range: DN15-DN100
Valve material: SS304, SS316
Pressure: 232psi
Thread connection: BSP thread, NPT thread, G thread
  • DN15-DN100

  • SS304, SS316

  • 232psi

  • BSP thread, NPT thread, G thread

  • ISO5211(F03/F05/F07/F10)


Accessories: 0.8m cable wires; bracket&screw;with manual override

Customized: high platform bracket&screw ,extra wires length

Rated Torque: 10Nm-2000Nm

Enclosure level: IP67

Housing material: ABS/Die-casting aluminum

Rated Voltage: DC12V、DC24V、AC24V、AC110V、AC230V、AC/DC24V、AC/DC95~265V

Modulating control mode: 0~5V、1~5V、0~10V、2~10V、0~20mA、4~20mA

Install Actuator: ON &OFF Actuator, Modulating Actuator, Failsafe capacity Actuator, RS485 Series Actuator, Intelligent on&off Actuator, Intelligent Modulating Actuator

Functions Ordered: High speed On/Off Type,Power Off Reset Type,PID Type,Nb_lot Type

Features 1 Multi-position mode can be realized

Features 2 High performance brushless motor, overheat/overload protection of internal motor.

Features 3 Service life-20000 cycles (Max:9371648 times)

What is the electric valve?

MTD electric valve is a high-end product in automatic control valve. It uses electric energy as power to drive the valve in the lower half with the electric actuator in the upper half, which can not only realize the opening and closing of the valve, but also realize the valve position adjustment function by its modulating type, so as to achieve the purpose of opening, closing or regulating the pipeline medium.

What voltage does the electric actuator apply to?

Normally, MTD actuator have single voltage, 110V AC, 220VAC, 24V AC/DC, 12VDC, and wide voltage, 95-265V AC/DC.

What material are MTD Motorized Valves Made of?

The housing of electric actuator is made of ABS or Die casting aluminum, and the valve is made of plastic(uPVC, CPVC, PPH, PPR, PVDF), brass, stainless steel(304,316), ductile iron.

Brass Ball Valves

Brass is the most commonly used metal for electric valves. It is a durable and economically efficient metal suitable for a wide range of temperatures, pressures and media flows. Brass valve becomes more resistant to corrosion after nickel plating.

*Stainless Steel Ball Valves

Stainless steel is a bit more expensive than brass but it has more functions. The major benefit of stainless is that it is lead-free and safe to use in systems with drinking water. And it can be used to control the flow of various types of fluids such as air, water, steam, various corrosive media, mud, oil, liquid metal and radioactive media.

Plastic Ball Valves

The uPVC valve body is durable and cost-effective. It is light, compact, non-toxic, wear resistance and easy to install, disassemble and maintain. Additionally, our chemical plastic valves which is made of CPVC, PPH, PPR, PVDF can be used in complex condition that have corrosive media such as salt water or acids.
