The industrial landscape is currently experiencing a profound and irreversible transformation. In the realm of power generation, the shift from human - operated systems to autonomous ones is not merely an equipment upgrade but a fundamental re - structuring of the relationship between energy, information, and mechanical precision. Traditionally, power plant operations were manual tasks, relying on the tactile experience of seasoned operators who interpreted analogue indicators and adjusted steam valves based on a local understanding of the system's requirements. Today, we are in an era where the power plant automation paradigm has redefined the boundaries of what can be achieved in terms of reliability and output.
The increasing reliance on data can perhaps best define the role of modern automation. Power producers face a global energy market that is becoming more volatile, and safety regulations are placing greater constraints on carbon - intensive processes, leaving almost no room for error. In the past, limited visibility into various processes was a hurdle to efficiency. Now, automation is the means by which complex thermodynamics are balanced with real - time economic demands, enabling operators to make better decisions. It is no longer sufficient to simply generate power; it must be produced with an optimal heat rate, minimal emissions, and maximum equipment lifespan, thus optimizing plant performance. This paper explores the intricate structure of power plant automation, delving into strategic advantages and focusing on mechanical components, specifically actuated valves, which are the ultimate determinants of system performance.
Automating a power generation facility is rarely a decision based on a single factor. Instead, it is the result of a comprehensive cost - benefit analysis that considers the entire lifecycle of the generating assets. When evaluating the impact of these systems, the benefits generally fall into two main categories: economic optimization and risk mitigation, ultimately leading to greater operational control.

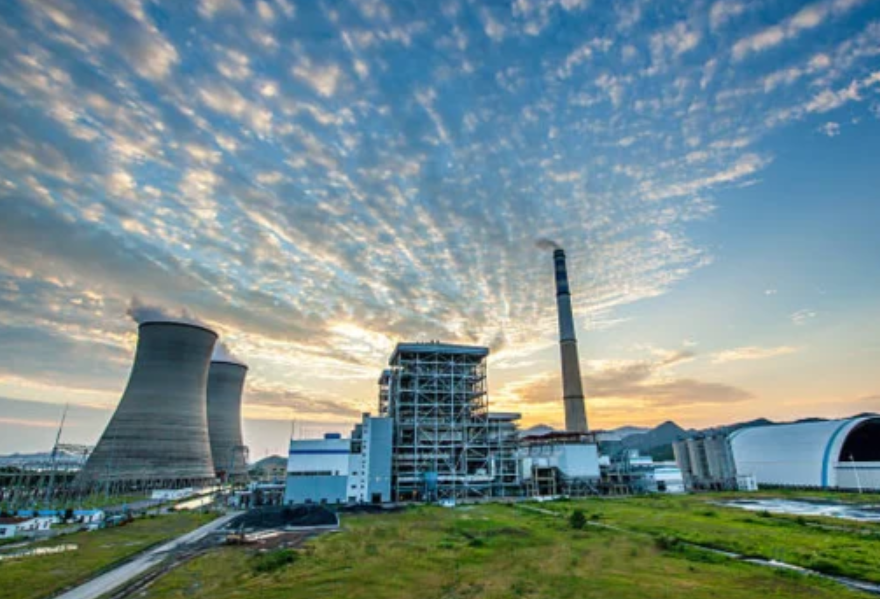

The Rankine cycle lies at the heart of any thermal power plant, aiming to convert heat into mechanical work as efficiently as possible. In a manual or semi - automated environment, the plant often operates at a sub - optimal equilibrium. Fluctuations in fuel quality, ambient temperature, and grid load cause deviations from the design heat rate.
Intelligent control systems, particularly those based on Advanced Process Control (APC), continuously monitor thousands of data points for real - time optimization. These systems adjust boiler combustion parameters, feed - water flow, and turbine inlet pressures with an accuracy beyond human capabilities, reducing energy drift and lowering energy consumption. The result is a measurable decrease in fuel consumption per megawatt - hour of generation, leading to significant cost savings and reduced maintenance costs. For instance, a 0.5% increase in fuel economy in a 500MW coal or gas - fired plant could save millions of dollars annually. Moreover, automation enhances reliability by reducing cycling stress on components, increasing the mean time between failures (MTBF), and decreasing the frequency of expensive cold starts, which are notorious for their high fuel consumption and mechanical damage.
Beyond financial considerations, automation is the primary safeguard for safety in high - pressure and high - temperature environments. Modern Burner Management Systems (BMS), Emergency Shutdown Systems (ESD), and other safety systems are designed with a fail - safe redundancy logic. These systems are programmed to automatically shut down upon detecting potential issues such as a loss of flame or a sudden pressure increase, taking protective measures in milliseconds—much faster than any human operator could respond. This rapid response helps prevent serious problems and catastrophic equipment failures in hazardous environments, safeguarding the lives of plant personnel.
Automation also drives environmental regulatory compliance. Industry regulations now require continuous emissions monitoring and adherence to limits for NOx, SOx, and particulate matter. Automated control loops can accurately inject ammonia in Selective Catalytic Reduction (SCR) systems or adjust the parameters of flue gas desulfurization (FGD). By maintaining combustion within a narrow optimal range, automation allows the plant to be an environmentally responsible entity without sacrificing operational goals.
An automated power plant's architecture is based on a hierarchical set of technologies designed to capture, process, and respond to data across key processes. At the base is the Operational Technology layer, consisting of sensors and actuators. Above this, the control layer is typically dominated by Programmable Logic Controllers (PLCs) and Distributed Control Systems (DCS).

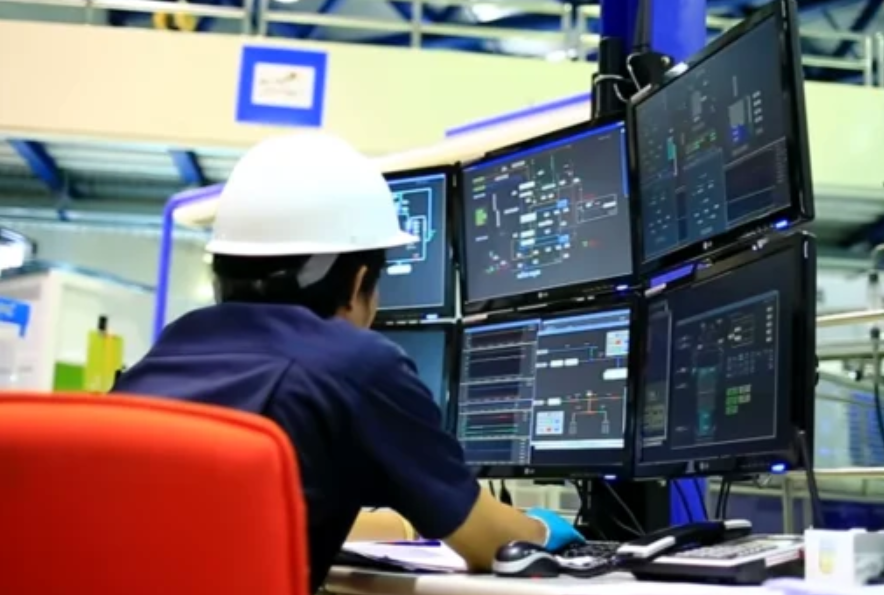

The DCS serves as the automated plant's brain. Unlike a centralized computer, a DCS distributes control among different subsystems, ensuring that a failure in one area does not cause a complete system breakdown. This decentralized design is crucial for the high - availability requirements of the power industry. In recent years, this layer has been complemented by Supervisory Control and Data Acquisition (SCADA) systems and information systems, which enable long - range monitoring and control, especially in managing geographically dispersed renewable resources or substations.
As the automated power plant enters the Industry 4.0 era, it is becoming increasingly reliant on new technologies such as Artificial Intelligence (AI), Digital Twins, and machine learning. A Digital Twin is a computerized model of the physical plant that simulates performance using real - time data. Operators can run “what - if” scenarios in the digital world to predict the impact of changes in fuel or scheduled predictive maintenance on the plant's overall health. This shifts the maintenance paradigm from reactive or scheduled to predictive, where parts are replaced precisely when they are on the verge of failure, rather than on a fixed schedule.
Adopting a comprehensive automation strategy for power plant automation solutions is not a one - time event but a multi - year process that requires careful planning. A Systemic Audit should be the first step in any roadmap. This involves assessing the current state of the mechanical infrastructure and legacy assets. The misconception that advanced software can compensate for poor hardware is unfounded. Without precise control over underlying valves, pumps, and turbines, even the most sophisticated DCS will be ineffective.
After the audit, the focus should be on “Standardization.” In many legacy systems, automation has been implemented in a fragmented way, creating a technological patchwork of isolated systems from various vendors that lack effective communication. To implement a successful strategy, it is essential to adopt universal communication protocols such as Modbus, HART, or Foundation Fieldbus, ensuring interoperability throughout the plant.
The final phase is “Phased Deployment and Personnel Training.” Instead of attempting a complete plant overhaul during a single outage, successful operators usually start with non - critical subsystems like water treatment or coal handling, and then move on to the core power - generating components, the boiler and turbine control. This approach allows the workforce to become familiar with the new digital tools with minimal risk to the plant's primary revenue source. More importantly, the human element must be considered. As the plant becomes more autonomous, the role of the operator shifts from manual adjustment to system supervision. Training programs should focus on data literacy and emergency intervention, preparing the staff to handle the complexities of a digitized environment.
The journey towards a fully automated plant is fraught with technical and organizational challenges. The most significant of these is the issue of Legacy Integration. Most existing power plants were built decades ago and were designed to be controlled analogously. Retrofitting these facilities requires in - depth knowledge of how to bridge the gap between 40 - year - old mechanical equipment and 21st - century digital interfaces.
To navigate the complexities of legacy infrastructure, a commitment to cybersecurity is essential. As power plants transition to cloud - based monitoring and are no longer air - gapped, they become targets for advanced cyber - attacks. The integrity of the control network is now not just an IT concern but a matter of national security and operational safety. This necessitates the adoption of “Defense in Depth” measures, including hardware - based firewalls, encrypted communication, and strict access control.
In addition, there is the Human Capital Gap. Automation does not eliminate human expertise but changes its nature. Contemporary plant operators need to be as well - versed in data analytics as in mechanical thermodynamics. Resistance to change and the need to retrain the current workforce are among the most persistent challenges in the industry.
As the world moves towards a decarbonized grid, the role of traditional power plants is evolving. We are transitioning from a Base Load model to a Flexible Generation model. Intermittent renewable energy sources such as wind and solar cause sudden changes in grid frequency and voltage. To stabilize smart grids, old fossil - fuel and hydro plants must be able to adjust their output at unprecedented speeds.
Automation technologies make this flexibility possible. A combined - cycle gas turbine (CCGT) using natural gas can vary its output by a few megawatts per minute using high - speed control loops without exceeding thermal stress limits. In this context, automation acts as a buffer, absorbing the variability of solar and wind energy and providing environmental benefits. Without sophisticated automation, the integration of renewable energy sources would lead to frequent grid instabilities and localized blackouts. The future automated power plant is not only an electricity generator but also a provider of “Grid Inertia” and frequency regulation services for tomorrow's smart grids.
Automation is not a one - size - fits - all solution but a customizable science that adapts to specific fuel physics and operational stressors. While the underlying logic of a Distributed Control System (DCS) remains the same, the architecture and performance standards vary significantly to meet the requirements of different applications.
In nuclear power, the paradigm is characterized by the concept of Defense in Depth, which prioritizes deterministic safety over economic optimization. Instrumentation and Control (I&C) systems are based on SIL 3 or 4 standards, with 2 - out - of - 3 voting logic, relying on Redundancy and Diversity. This design ensures that the failure of one sensor or a software glitch does not compromise reactor stability. Although the hardware must be radiation - hardened and seismically qualified, the real strength lies in conservative, fail - safe control loops that are independent of the main efficiency - driven DCS.
Hydroelectric and geothermal industries deal with mass and inertia. In hydro, Governor Systems use PID algorithms to control water flow, stabilizing grid frequency and reducing the “water hammer” effect, which is a pressure surge that can damage civil infrastructure. Geothermal automation focuses on pressure - temperature balance, incorporating real - time chemical analysis to control flow and prevent heat exchanger scaling. These industries require high - torque execution hardware to achieve optimal Water - to - Wire efficiency in corrosive or high - pressure environments while complying with environmental regulations.
Combined Cycle (CCGT) plants are the grid's agility experts. Automation must coordinate the high - rate firing of gas turbines with the slower thermal inertia of Heat Recovery Steam Generators (HRSG). Fast - Start automation uses Model Predictive Control (MPC) to predict thermal stress and adjust ramp rates accordingly. This enables the plant to respond rapidly to grid demand without causing structural cracking in high - pressure headers. CCGT automation has been successful because it balances market urgency with long - term mechanical integrity through damage - minimizing control.
Automation enhances the resilience, efficiency, and responsiveness of power generation by integrating advanced control logic with sector - specific physics to meet modern energy needs.
While the digital aspects of the plant often receive the most attention, field devices are the ones that perform the actual work. In the context of fluid dynamics, the actuated valve serves as the link between digital commands and physical actions. All the calculations made by the DCS, whether to adjust the steam flow to the turbine or the cooling water flow to the condenser, ultimately result in a signal to a valve actuator.
If a valve is slow to react, exhibits stiction, or provides incorrect position feedback, the entire automation loop is compromised. A standard valve is likely to fail quickly in high - frequency cycling conditions, leading to unplanned downtime, which is common in modern flexible plants. High - performance electric and pneumatic actuated valves are the critical components that ensure software commands are executed accurately. These valves should be engineered for precise and rapid throttling, often under severe pressure and temperature conditions. A single faulty valve worth $5,000 can cause a forced outage costing $500,000 per day. Thus, choosing smart, high - quality hardware is not just a procurement decision but a strategic one.
The choice of actuation technology involves balancing mechanical requirements and control logic. While the automation system provides the signal, the specific needs of the loop, such as the rapid isolation required in the event of a turbine trip or the fine - grained throttling needed for boiler feed - water, will determine whether to select an electric or a pneumatic system. The following table outlines the performance features and common utility - scale uses of the two technologies:
Feature | Electric Actuated Valves | Pneumatic Actuated Valves |
Control Precision | Exceptional. Ideal for complex modulating and precision throttling (0.1% resolution). | High. Achieved through high - performance digital positioners. |
Response Speed | Moderate. Governed by motor gearing; consistent and repeatable. | Rapid. Capable of near - instantaneous strokes for emergency isolation. |
Fail - Safe Logic | Requires battery backup or supercapacitors for emergency positioning. | Native. Spring - return mechanisms provide mechanical fail - safe reliability. |
Integration Method | Direct digital integration via Modbus, HART, or Profibus protocols. | Requires I/P (Electro - Pneumatic) conversion to interface with DCS. |
Maintenance Profile | Low. Minimal moving parts; no requirement for compressed air infrastructure. | Moderate. Requires clean, dry instrument air and periodic seal inspection. |
Typical Power Plant Application | Cooling water systems, chemical dosing, and remote auxiliary flow control. | Turbine bypass, main steam isolation, and high - frequency control loops. |
In the architecture of power plant automation, systemic integrity is ultimately limited by its weakest mechanical link. ··MTD Actuator Valve bridges this gap as a global leader in high - performance flow control, based on the principle that “Smart Automation” requires “Smart Hardware.” With a legacy of engineering excellence, industry expertise, and over 30 patents and certifications, including ISO 9001:2015, SIL, and ATEX, ··MTD Actuator Valve delivers the precision needed for the most demanding industrial environments.
Our electric and pneumatic actuated valves are designed for seamless integration, not just operation. With a qualification rate of 95%+, ··MTD Actuator Valve hardware bridges the integration gap between legacy physical assets and modern digital architectures through versatile signal protocols and custom mounting solutions. Whether navigating complex retrofits or optimizing new utility - scale builds, ··MTD Actuator Valve provides energy - efficient, cost - effective components that can withstand demanding duty cycles. Choosing ··MTD Actuator Valve is not just about purchasing a valve; it's a strategic investment in a rigorously tested asset. We ensure that when your automation logic demands a critical adjustment, our valve executes with absolute, unwavering reliability.
The automation of power plants is the natural result of the pursuit of efficiency, safety, and sustainability. As we've seen, new technologies such as DCS and AI, along with the advanced logic of renewable integration, enable rapid decision - making in modern engineering. However, the effectiveness of these digital systems still depends fundamentally on the quality of the mechanical hardware at the field level.
The path to a fully autonomous power plant is complex and requires a roadmap that recognizes the power of new software and the principles of fluid control. By emphasizing the synergy between state - of - the - art control logic and state - of - the - art hardware, plant operators can ensure that their facilities not only meet current standards but are also robust enough to thrive in future energy markets. Ultimately, power plant automation is the art of converting information into action, and in this process, all components, from algorithms to valves, must operate with flawless precision.
Power plant automation involves integrating intelligent control systems (such as DCS and PLC) with information technology to automate the energy production process. Its main goal is to maximize generation efficiency, equipment lifespan, and grid stability while minimizing manual intervention and ensuring optimal operational safety.
In the industrial context, they are categorized as follows:
· Fixed Automation: Designed for high - volume, repetitive tasks with a rigid sequence (e.g., coal conveyor systems).
· Programmable Automation: Systems where the operation sequence can be modified via software (e.g., PLCs executing specific logic).
· Flexible Automation: Capable of performing a variety of tasks or adapting to changing conditions with minimal downtime for changeovers.
· Integrated Automation: A fully digitalized facility where the entire plant operates under a single, unified computer architecture (e.g., a comprehensive DCS solution).
· SCADA (Supervisory Control and Data Acquisition): A high - level software system used for monitoring and data collection. It collects real - time data from plant sensors and provides a remote interface for operators to make informed decisions.
· PPC (Power Plant Controller): A specialized hardware controller (common in renewable energy) used to regulate power output. It ensures the plant's active and reactive power meet “Grid Code” requirements, maintaining frequency and voltage stability.
· Measurement: Sensors collect physical parameters like pressure, temperature, and flow rate.
· Evaluation: The controller (the “brain”) processes this data based on programmed logic and setpoints.
· Control: Actuators (the “muscle,” such as actuated valves) execute physical movements based on the controller's signal.
· Optimization: Continuous feedback loops fine - tune the process to achieve the highest possible efficiency and stability.
