How Does a Desalination Plant Work? A Guide to Essential Technology and Optimizing Plant Performance - MTD Actuator Valve

The global demand for potable water has surged as traditional aquifers and surface water sources face unprecedented stress from population growth and changing climatic patterns. Desalination, the industrial process of extracting salts and minerals from saline water, has evolved from a niche solution to a key element in modern water security. By harnessing advanced thermodynamics and material science, desalination plants transform the vast ocean reserves into a reliable, drought - resistant supply of high - quality water. Comprehending the workings of desalination plants requires a meticulous examination of the interaction between mechanical engineering, chemical processing, and precise flow control systems. This guide delves into the fundamental technologies, intricate operational phases, and the crucial role of automation in enhancing the performance of these vital industrial assets, especially in an era where energy efficiency and structural longevity are the primary success metrics.

Core Technologies Behind Modern Desalination

Historically, the desalination field was dominated by thermal processes that replicated the natural water cycle through evaporation and condensation. These methods, mainly Multi - Stage Flash (MSF) and Multi - Effect Distillation (MED), use thermal energy to boil seawater, leaving salt and impurities behind. MSF, in particular, functions by flashing a portion of the water into steam in multiple stages, each at a lower pressure. Although robust and capable of using waste heat from power plants, thermal systems are inherently energy - intensive due to the high latent heat of vaporization needed to convert water into steam. Consequently, their application is increasingly limited to regions with abundant, low - cost energy resources, such as the Middle East, where cogeneration with power plants remains economically viable.

In contrast, the 21st century has witnessed a significant shift towards membrane - based technologies, specifically seawater reverse osmosis (SWRO). Unlike thermal methods, SWRO uses mechanical pressure instead of heat. By forcing seawater through a semi - permeable membrane at pressures exceeding the natural osmotic pressure of the solution, the system separates pure water molecules from dissolved ions. The efficiency of SWRO has improved remarkably over the past two decades. Energy consumption has dropped from around 10 kWh/m³ in the early 1980s to less than 3 kWh/m³ in state - of - the - art facilities today. This reduction is largely due to innovations in membrane chemistry, specifically the development of thin - film composite membranes, and the integration of sophisticated Energy Recovery Devices (ERDs) that capture the hydraulic energy of the concentrated brine stream.

The Step - by - Step Desalination Process

To understand the complexity of a desalination facility and how the desalination process unfolds, one can view it as an industrial kidney, filtering vast volumes of saline fluid to maintain a precise chemical balance in the final output. The process is a sequential series of high - stakes engineering steps, where the failure of a single stage can undermine the integrity of the entire system.

From Seawater Intake to Pre - treatment Filtration

The process starts at the intake structure, where seawater is drawn from the ocean. Engineers must choose between open intakes, which use large - diameter pipes extending into the sea, or subsurface intakes, like beach wells, which offer a degree of natural filtration through the seabed. To minimize the impact on marine life, open intakes are equipped with velocity caps and fine screens that slow down the incoming water, preventing the entrainment of fish and larvae.

Once inside the plant, the raw seawater undergoes rigorous pre - treatment. This stage is crucial because the polyamide membranes used in the reverse osmosis stage are highly susceptible to “fouling,” which is the accumulation of organic matter, silt, and microorganisms on the membrane surface. Pre - treatment typically consists of several sub - phases:

• Coagulation and Flocculation: Chemicals such as ferric chloride are added to the water to make small particles clump together into larger “flocs.”

• Dissolved Air Flotation (DAF): These flocs are floated to the surface using micro - bubbles and then mechanically removed. This is particularly effective during “red tide” events or algal blooms.

• Media Filtration: The water passes through dual - media layers (sand and anthracite) to remove remaining suspended solids.

• Ultrafiltration (UF): Many modern plants now use UF membranes as the final pre - treatment step to ensure a Silt Density Index (SDI) of less than 3, which is the industry standard for protecting RO membranes from colloidal fouling.

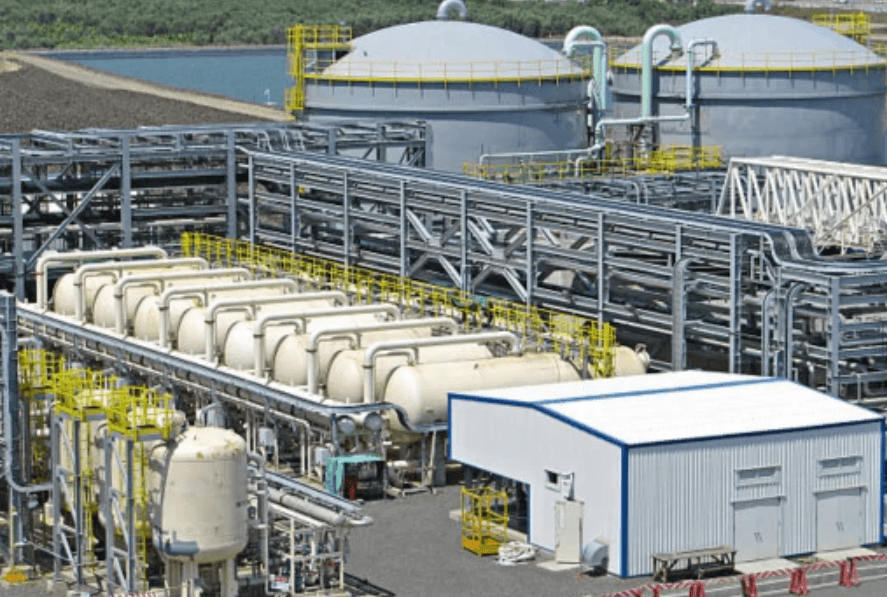

The Reverse Osmosis (RO) Heart and Post - treatment

At the heart of the facility is the RO building, housing thousands of membrane elements enclosed in high - pressure vessels. Here, the pre - treated water is pressurized by high - pressure pumps to levels between 55 bar and 80 bar, depending on the salinity and temperature of the feed water. As the water is pushed against the membrane, it acts as a molecular gatekeeper, allowing \(H_2O\) molecules to pass through while rejecting over 99.8% of dissolved salts, including \(Na^+\), \(Cl^-\), and \(Mg^{2 + }\).

The resulting water, known as “permeate,” is extremely pure—often too pure for immediate consumption. In the post - treatment stage, the water must be “re - mineralized” to prevent it from corroding the distribution infrastructure. This involves adjusting the Langelier Saturation Index (LSI) by adding carbon dioxide and lime (calcium hydroxide) or passing the water through limestone beds. This process adds essential minerals like calcium and magnesium back into the water, ensuring it is both palatable and chemically stable. Finally, a disinfectant, usually chlorine, is added to ensure biological safety throughout the distribution network.

The Physics of Energy Recovery Systems

Given that energy constitutes a significant part of a plant’s operating expenses, the integration of Energy Recovery Devices (ERDs) is essential. The physics of these devices is centered around the principle of hydraulic pressure transfer. When the high - pressure brine exits the RO membrane, it still retains approximately 95% of the energy supplied by the high - pressure pump.

Modern facilities mainly use isobaric pressure exchangers. These devices enable the high - pressure brine to come into direct contact with the low - pressure feed seawater within small cylindrical chambers. Through a process of positive displacement, the pressure is directly transferred from the brine to the seawater with an efficiency often exceeding 98%. This technological advancement has effectively separated water production from high energy costs, allowing SWRO plants to operate with a total energy intensity that is approaching the theoretical minimum required by the laws of thermodynamics.

Brine Management and Environmental Discharge

For every liter of fresh water produced, approximately 1.1 to 1.5 liters of concentrated brine are generated as a by - product. This brine has roughly double the salinity of natural seawater and may contain trace amounts of pre - treatment chemicals. Managing this stream is a delicate balance between industrial production and ecological conservation.

Modern plants use sophisticated discharge systems to minimize environmental impact. High - velocity diffusers are installed at the end of the outfall pipes to promote rapid mixing of the brine with the surrounding seawater. By ensuring that the salinity levels return to ambient conditions within a short distance from the discharge point, plants can protect local benthic communities and maintain the biodiversity of the coastal ecosystem. Some forward - thinking facilities are also exploring “Zero Liquid Discharge” (ZLD) technologies, using crystallizers to recover solid salts, although these remain cost - prohibitive for large - scale municipal projects.

The Chemical Complexity of Permeate Quality: Boron and Bromide Removal

While the rejection of Sodium Chloride (NaCl) is the primary goal, modern desalination also has to deal with trace elements like Boron (B), which can be toxic to certain agricultural crops even at low concentrations. Since boric acid is a small, uncharged molecule, it often passes through standard RO membranes at neutral pH levels.

To meet the stringent water quality standards of 2026, many facilities use a “Two - Pass” RO configuration. In the second pass, the pH of the first - pass permeate is artificially increased using sodium hydroxide (NaOH). This shift in chemical equilibrium converts boric acid into borate ions, which carry a negative charge and are thus effectively rejected by the second - pass membranes. This process requires a high degree of precision in chemical dosing. Automated valves must adjust the flow of caustic chemicals based on real - time pH sensor feedback, ensuring that the water chemistry remains within a narrow operational range to maximize removal efficiency while minimizing chemical waste.

Material Science: Combating Corrosion in Saline Environments

In the engineering of a desalination plant, material selection is not just a budgetary concern but a fundamental necessity for its operation. The high concentration of chloride ions (\(Cl^-\)) in seawater creates an environment that is highly corrosive to traditional engineering metals. Chloride ions are particularly good at penetrating the passive oxide layer on the surface of stainless steel, leading to pitting and crevice corrosion.

To measure a material’s resistance to this phenomenon, engineers use the Pitting Resistance Equivalent Number (PREN), calculated as PREN = %Cr + 3.3 × (%Mo + 0.5%W) + 16 × %N. For the high - pressure sections of an SWRO plant, materials typically need to have a PREN value greater than 40. This requires the use of Super Duplex Stainless Steels (such as Grade 2507). These alloys offer a balanced austenitic - ferritic microstructure, providing both high mechanical strength and excellent resistance to stress corrosion cracking. In the low - pressure sections, materials like Glass - Reinforced Plastic (GRP) or High - Density Polyethylene (HDPE) are preferred because they are completely immune to electrochemical corrosion, although they lack the pressure - bearing capacity required for the core RO process.

Key Infrastructure and Components of a Desalination Plant

The mechanical integrity of a desalination plant is determined by its components, which must endure some of the most corrosive environments in the industrial world. Besides the membranes themselves, the infrastructure includes:

• High - Pressure Pumps: Often the largest energy consumers in the plant, these pumps must be able to operate continuously at high output.

• Energy Recovery Devices (ERD): These units, such as isobaric chambers or Pelton turbines, transfer the pressure from the brine stream back to the incoming feed water, recovering up to 98% of the hydraulic energy that would otherwise be wasted.

• Piping Systems: Due to the high chloride content of seawater, standard carbon steel is not sufficient. Engineers use Glass - Reinforced Plastic (GRP), High - Density Polyethylene (HDPE), or high - grade alloys like Super Duplex Stainless Steel to prevent catastrophic corrosion.

• Automated Valve Systems: These components are the plant’s nervous system, regulating flow rates, controlling pressure gradients, and isolating sections of the facility for maintenance. The reliability of the actuators driving these valves is crucial for preventing water hammer and ensuring the safety of the membrane vessels.

Operating Challenges: Energy, Corrosion, and Maintenance

Operating a desalination plant involves managing three persistent challenges: energy costs, material degradation, and biological fouling. Energy remains the dominant Opex (Operating Expenditure) variable, typically accounting for 35% to 50% of the total cost of produced water. Even minor fluctuations in pump efficiency or pressure loss across a valve can have significant financial implications over the plant’s 25 - year lifespan.

Corrosion is the second major challenge. The high concentration of \(Cl^-\) ions in seawater promotes pitting and crevice corrosion, especially in stagnant areas or at the joints of valves and pumps. If the material selection is flawed, the structural integrity of the high - pressure system can be compromised within months. Additionally, bio - fouling requires a continuous regimen of chemical dosing and “Clean - In - Place” (CIP) cycles, where the RO membranes are washed with specialized acidic or alkaline solutions to restore flux. These maintenance activities require precise automation to ensure that aggressive cleaning chemicals do not leak into the potable water stream.

Optimizing Performance Through Advanced Flow Control

In the quest for operational excellence, the industry has shifted its focus from the membranes themselves to the systems that control them. Optimization is no longer just about the water chemistry; it is about the precision of the mechanics.

The Importance of Precision in Pressure Regulation

The performance of an RO membrane is determined by the Net Driving Pressure (NDP). If the pressure is too low, the water production rate decreases; if it is too high, the energy cost increases, and the risk of membrane compaction rises. Precise flow control, achieved through the synchronization of Variable Frequency Drives (VFDs) and high - performance automated valves, allows the plant to adapt to changes in feed water temperature and salinity in real - time. For example, as seawater temperatures increase in the summer, its viscosity decreases, requiring a recalibration of the pressure set - points to maintain a constant flux without over - stressing the system.

Reducing Downtime with Reliable Automated Valving

Downtime is detrimental to the levelized cost of water. In a facility with thousands of automated valves, the failure of a single actuator can lead to an unscheduled shutdown of an entire RO train. High - reliability actuators, both pneumatic and electric, are essential for managing the frequent cycling required by pre - treatment backwashing and CIP procedures. By using actuators with high duty - cycle ratings and integrated diagnostics, plant operators can move from reactive maintenance to a predictive model, identifying a slow - closing valve before it causes a pressure surge that could rupture a membrane.

Decentralized Solutions: The Rise of Modular SWRO Systems

A significant trend in the global water strategy is the shift from centralized megascale plants to decentralized, modular seawater reverse osmosis (SWRO) systems. These containerized units are increasingly deployed in remote coastal resorts, offshore oil platforms, and disaster - relief zones where traditional infrastructure is lacking. While the modular approach offers rapid deployment and lower initial capital expenditure, it presents a unique engineering challenge: spatial density versus component serviceability.

In a containerized plant, every cubic centimeter of space is precious. This space constraint requires the use of “low - profile” automated valves and compact actuators that do not sacrifice torque for their reduced footprint. Moreover, since these units are often operated in isolated locations with limited technical staff, the diagnostic intelligence of the hardware is crucial. The integration of industrial protocols like Modbus or Profibus enables remote monitoring and predictive troubleshooting from anywhere in the world. By digitizing the physical movement of the valve, we effectively reduce the need for on - site intervention, ensuring water security in regions where a single component failure could otherwise lead to a local humanitarian crisis.

MTD Actuator Valve: Precision - Engineered Valve for Harsh Saline Environments

In the harsh environment of a modern seawater reverse osmosis (SWRO) facility, standard valves often fail due to salt - spray corrosion and mechanical fatigue. MTD Actuator Valve bridges this gap with specialized electric and pneumatic actuated valves designed specifically for the rigors of saline water treatment.

Our actuated valve solutions go beyond simple automation; they serve as a process safeguard. MTD Actuator Valve’s electric actuated valves provide high - precision modulating control, allowing for the exact regulation of flow, pressure, and temperature required to maintain membrane integrity. While generic equipment struggles with high - frequency operation, MTD Actuator Valve automated valves are tested to exceed industry cycle standards, ensuring thousands of backwash sequences without any loss in torque or speed.

Why Partner with MTD Actuator Valve?

• Extreme Durability: IP68 - rated enclosures and advanced corrosion - resistant coatings protect the entire actuated valve assembly from high - salinity air and localized leaks.

• Operational Efficiency: Achieve 2026 performance benchmarks through precise positioning and reduced energy loss.

• Economic Value: Significantly lower Total Cost of Ownership (TCO) by extending maintenance intervals and reducing unscheduled downtime.

• Global Compliance: Our ISO 9001:2015 - certified processes deliver actuated valves backed by SIL, ATEX, and FDA certifications.

At MTD Actuator Valve, we don’t just supply valves; we optimize systems. Enhance your plant’s reliability with actuated valve solutions designed for the world’s harshest maritime conditions.

Conclusion: The Future of Efficient Desalination

The future of desalination technology is clearly moving towards greater autonomy and theoretical energy efficiency. Looking ahead to the 2030s, the integration of Artificial Intelligence (AI) and Digital Twin technology will enable plants to self - optimize, adjusting every valve and pump in real - time based on predictive oceanographic data and fluctuating power grids. However, these digital advancements will always depend on the physical reliability of the hardware. No algorithm can compensate for a seized valve or a corroded actuator; the “intelligence” of a plant is only as effective as its ability to execute mechanical movement.

The story of a desalination plant is ultimately one of human ingenuity in harnessing the vast, saline reserves of our planet. From the initial intake of raw seawater to the final delivery of mineralized drinking water, every milliliter produced is a testament to the rigor of modern engineering. For manufacturers like MTD Actuator Valve, our role is to provide the robust “muscles” that respond to the plant’s analytical “brain.” By prioritizing material science, precision actuation, and energy - conscious design, we ensure that the promise of unlimited fresh water is not just a technical possibility but a sustainable reality. As the industry evolves, the synergy between process logic and component durability will remain the most critical factor in responsibly meeting the world’s water needs.
