Engineering Precision: The Scenario-Driven Guide to Industrial Butterfly Valves

In high-stakes industrial automation, a valve is not merely a component; it is the definitive line between operational continuity and catastrophic system failure. Modern processing plants demand fluid control architecture that transforms performance into art through minimal pressure drops, zero-leakage isolation, and structural longevity.

Choosing the correct butterfly valve configuration requires a deep understanding of fluid dynamics, material science, and mechanical actuation. This guide analyzes industrial butterfly valves through the lens of rigorous field engineering, detailing how specific designs mitigate financial and physical risk in peak stress environments.

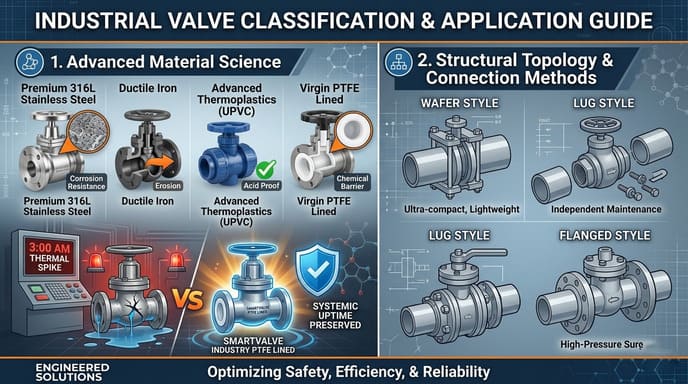

1. Classification by Advanced Material Science

Material selection dictates a valve's boundary limits regarding chemical degradation, mechanical erosion, and thermal stress. Selecting the wrong substrate can result in catastrophic mechanical failure or processing fluid contamination.

• Premium Stainless Steel Valves: Engineered with high-chromium alloys (typically 316L grade), these units deliver structural integrity under high-pressure thresholds and extreme thermal gradients. Their non-porous, passivated surfaces resist pitting corrosion, making them the absolute benchmark for sanitary biopharma and volatile chemical synthesis.

• Mekhanite Cast / Ductile Iron Valves: Utilized primarily for utility lines, HVAC systems, and large-scale water infrastructure. While offering exceptional structural damping and cost efficiency, their application is strictly limited to non-corrosive fluids to prevent oxidation and premature wall thinning.

• Advanced Thermoplastics (UPVC / CPVC): Optimized for low-to-medium temperature chemical lines. Thermoplastic variants offer complete immunity to galvanic corrosion and acidic attack at a fraction of the weight of exotic alloys, lowering structural pipe-hangar costs.

• Virgin PTFE Lined Valves: The definitive solution for highly aggressive media like concentrated sulfuric acid or caustic wash solutions. The molecularly dense PTFE lining creates an impenetrable, low-friction barrier, preventing media from contacting the structural metal housing.

High-Risk Micro-Moment: At 3:00 AM during a peak production cycle, an unexpected thermal spike hits an acid dosing line. A standard cast iron valve would suffer stress cracking or severe chemical leakage within minutes, causing an estimated $50,000 in immediate product loss and hazardous cleanup fees. A MTD Actuator Valve Industry PTFE Lined Stainless Steel Valve absorbs the thermal shock seamlessly, maintaining a hermetic seal and preserving systemic uptime.

2. Structural Topology and Connection Methods

The mechanical interface between the valve body and the piping network governs installation velocity, maintenance downtime, and pressure containment limits.

   [Wafer Style]            [Lug Style]           [Flanged Style]
  Pipe   Body   Pipe       Pipe  Body  Pipe       Pipe   Body   Pipe
  |---|  |X|  |---|       |---|=[X]=|---|     |===|==| X |==|===|
    Flange Bolts            Threaded Lugs         Heavy Duty Bolting
  (Passes Through)        (Independent Ends)     (Direct Companion)

• Wafer Topology: Designed to sit suspended between companion pipe flanges, held in compression by long studs spanning the entire width of the valve body. This minimalist geometry yields an ultra-compact, lightweight footprint that reduces piping stress in confined spaces.

• Lug Geometry: Features independent, threaded metal casings surrounding the perimeter of the valve body. This enables engineers to bolt upstream and downstream piping independently, facilitating isolated downstream pipe maintenance while the upstream line remains pressurized.

• Flanged Construction: Incorporates dedicated, integral flanges on both ends of the valve body. This configuration distributes bolt torque evenly across a wider surface area, providing the rigid mechanical connection required for extreme high-pressure surges in energy generation and oil refining.

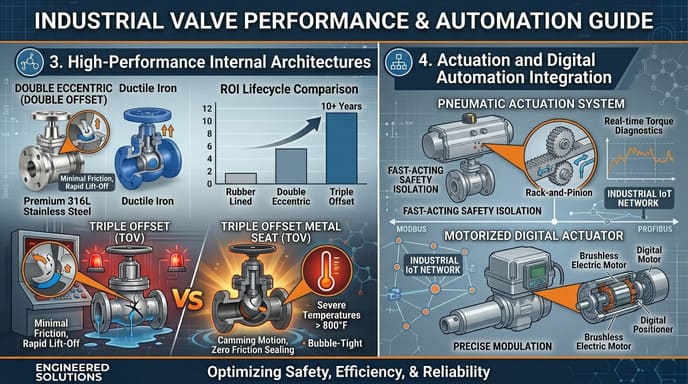

3. High-Performance Internal Architectures

Standard concentric butterfly valves experience continuous friction between the disc and the resilient seat during operation, accelerating elastomer degradation. High-performance geometries utilize mechanical offsets to eliminate this wear cycle.

• Double Eccentric (Double Offset): The shaft is offset both from the centerline of the valve disc and from the centerline of the bore. This causes the disc to lift off the seat immediately upon opening, reducing frictional drag to a mere fraction of a degree of rotation. This geometry vastly extends seat life in automated HVAC and water treatment loops.

• Triple Offset Valves (TOV): Features a third unique offset—the axis of the seat cone angle is inclined relative to the pipe centerline. This generates a camming motion, allowing the disc to seal against a solid metal seat with zero friction until the exact moment of final closure. This achieves a true bi-directional, bubble-tight metal-to-metal seal capable of withstanding severe temperatures exceeding 800°F (426°C).

4. Actuation and Digital Automation Integration

To achieve precision in modern process loops, manual levers are replaced with automated actuators that sync directly with distributed control systems (DCS).

• Pneumatic Actuation Systems: Utilizing heavy-duty rack-and-pinion configurations driven by compressed air, pneumatic systems offer explosive stroke speeds (under 1 second) and built-in fail-safe options (Fail-Closed/Fail-Open via internal springs). They are the industrial standard for fast-acting safety isolation.

• Motorized Digital Actuators: Driven by brushless electric motors paired with digital positioners. These units offer precise modulations down to 0.1% of the stroke angle, allowing for real-time flow profiling. They integrate seamlessly into industrial IoT networks via Modbus or Profibus protocols, reporting internal torque diagnostics to prevent unexpected motor burnouts.

Technical Specifications & Comparison

The matrix below provides an analytical comparison of the primary butterfly valve configurations engineered by MTD Actuator Valve Industry.

Economic Impact and Stakeholder Logic

Implementing high-performance valve infrastructure requires aligning engineering necessity with corporate financial metrics.

The Engineer's Perspective (Integration & Latency)

Engineers require low dynamic torque profiles and standardized mounting pads (ISO 5211) to minimize actuator size and reduce signal loop latency. The zero-friction design of MTD Actuator Valve Industry Triple Offset Valves reduces break-away torque requirements by up to 40%, allowing plants to utilize smaller, lower-power actuators. This reduces integration footprints and improves system response times during high-frequency modulating cycles.

The Procurement Manager's Perspective (ROI & Lifecycle)

While a metal-seated triple offset valve carries a higher initial procurement cost compared to a commodity concentric valve, it eliminates the recurring costs associated with line shutdowns, seal replacement labor, and lost production capacity.

Economic Formula: By upgrading a high-cycling slurry line from commodity valves to a MTD Actuator Valve Industry Double Eccentric Valve, seat replacement intervals extend from 6 months to over 48 months. Over a 5-year operational lifecycle, this transition yields a 340% Return on Investment (ROI) by preventing unexpected line outages and reducing maintenance overhead.

Act Now to Optimize Your System

Do not let sub-standard valve components become the single point of failure in your automation infrastructure. Contact our senior application engineering team today to review your system schematics, run custom torque calculations, and specify the exact valve configuration required to safeguard your plant's production metrics.

Partner with MTD Actuator Valve Industry to elevate your fluid control from operational overhead to high-efficiency art.
