In automated process industries, fluid control hardware is not merely a component; it is the core architecture that ensures operational integrity. Selecting the correct ball valve profile is an essential decision impacting system latency, safety margins, and long-term capital expenditure. MTD Actuator Valve engineered ball valves deliver zero-leakage performance, minimized operating torque, and extreme durability under severe duty cycles.
This technical guide deconstructs primary ball valve architectures, maps them to rigorous industrial applications, and translates mechanical specifications into measurable business outcomes.

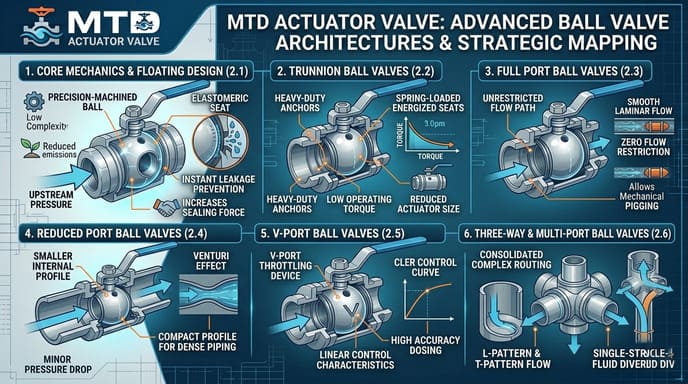

A ball valve operates as a quarter-turn isolation device utilizing a precision-machined spherical disc (the ball) to govern fluid dynamics. The ball features a through-bore that allows unobstructed passage when aligned parallel to the flow stream. A 90-degree rotation places the bore perpendicular to the pipeline, generating a positive mechanical seal.
MTD Actuator Valve optimizes this fundamental geometry across multiple configurations to meet specific thermodynamic and pressure constraints.
In a floating configuration, the ball is suspended within the fluid stream, unanchored at the base. It relies on upstream fluid pressure to displace the sphere slightly downstream, compressing it against the elastomeric seat to achieve an absolute seal.
High-Risk Scenario: In a chemical processing facility at 3:00 AM, a sudden upstream surge threatens to breach line containment. The MTD Actuator Valve floating design utilizes the line pressure itself to increase sealing force dynamically, instantly neutralizing the leakage risk and preventing a localized environmental hazard.
Stakeholder Logic: Engineers appreciate the low mechanical complexity and rapid sealing response. Procurement managers benefit from an optimized initial asset cost, offering high utility in standard piping designs.
Economic Impact: Eliminates fugitive emissions by ensuring a tight seal, reducing product loss and saving operations thousands of dollars annually in chemical media conservation.
Primary Applications: Low- to medium-pressure water distribution, commercial HVAC infrastructure, and non-slurry chemical transport lines.
Trunnion-mounted valves incorporate heavy-duty mechanical anchoring at both the upper stem and lower trunnion pivot point. The ball remains fixed in space, while spring-loaded, fluid-energized seats shift against the sphere to seal the flow path.
High-Risk Scenario: On a cross-country natural gas pipeline, high-pressure spikes during peak load periods can lock standard valves due to excessive torque requirements. The MTD Actuator Valve trunnion assembly absorbs these immense lateral forces mechanically, allowing the actuator to effortlessly cycle open or closed within milliseconds, preventing a catastrophic over-pressurization event.
Stakeholder Logic: Engineering teams benefit from ultra-low operating torque and predictable actuator sizing. Procurement secures an extended asset lifecycle with minimal seat wear under high cycle frequencies.
Economic Impact: Lower operating torque requirements allow the use of smaller, less costly pneumatic or electric actuators, reducing initial automation capital expenditure by up to 35%.
Primary Applications: High-pressure oil and gas pipelines, refinery headers, and high-capacity power plant steam systems.
Featuring an oversized ball, full port (full bore) valves maintain an internal diameter identical to the connecting pipeline, completely eliminating internal flow restrictions.
High-Risk Scenario: During the transport of abrasive mining slurries, any internal restriction creates extreme localized turbulence, leading to rapid pipe wall erosion and sudden line failure. The unrestricted path of the MTD Actuator Valve full port valve ensures smooth, laminar flow, eliminating erosion hot spots.
Stakeholder Logic: Simplifies system calculations for hydraulics engineers by introducing a zero-flow-restriction coefficient. Maintenance teams can easily run pipeline inspection gauges (PIGs) through the valve body without obstruction.
Economic Impact: Minimizing the pressure drop across the valve reduces the workload on system pumps, translating directly into a 12% to 15% reduction in overall pumping energy consumption.
Primary Applications: Highly viscous process media, particulate-heavy slurries, and high-velocity throughput lines.
Reduced port (standard bore) configurations utilize a smaller internal ball profile than the nominal pipe size, introducing a controlled venturi effect and a minor pressure drop.
High-Risk Scenario: In space-constrained offshore extraction modules, standard bulky valves compromise workspace safety and add unnecessary weight. The compact profile of the MTD Actuator Valve reduced port valve fits securely into dense piping matrices without sacrificing structural pressure ratings.
Stakeholder Logic: Offers a highly rigid, lighter-weight alternative that minimizes mechanical pipe stress.
Economic Impact: Provides a highly cost-effective solution for systems where minor pressure drops do not impact downstream yield, maximizing procurement ROI.
Primary Applications: General utility piping, balanced HVAC liquid lines, and gas blending bypass systems.
Engineered with a precision-machined V-shaped notch (typically 30°, 60°, or 90°) in either the ball or seat matrix, these valves convert standard isolation hardware into high-accuracy throttling devices.
High-Risk Scenario: In automated water treatment plants, imprecise chemical dosing can ruin a batch instantly. The MTD Actuator Valve V-port profile provides linear control characteristics, adjusting chemical injection rates accurately even under fluctuating differential pressures.
Stakeholder Logic: Combines the tight shut-off capability of a ball valve with the precise modulating characteristics of a globe valve, eliminating the need to install separate, redundant systems.
Economic Impact: High-accuracy throttling keeps process variables strict, increasing product yield by 2.5% and reducing raw material waste.
Primary Applications: Modulating chemical feed lines, food and beverage pasteurization loops, and precise temperature control systems.
Configured with L-pattern or T-pattern fluid paths, multi-port valves consolidate complex routing architectures into a unified multi-directional manifold.
High-Risk Scenario: In multi-stream refinery blending loops, timing errors between separate isolation valves can cause hazardous cross-contamination. A single MTD Actuator Valve multi-port valve manages fluid diversion mechanically in a single stroke, making cross-contamination physically impossible.
Stakeholder Logic: Simplifies complex control automation schemes and drastically reduces the total number of physical piping connections and leak paths.
Economic Impact: Replacing three standard valves with a single multi-port unit reduces structural path components, lowering installation labor and maintenance costs by up to 40%.
Primary Applications: Media mixing loops, multi-source distribution lines, and automated bypass circuits.

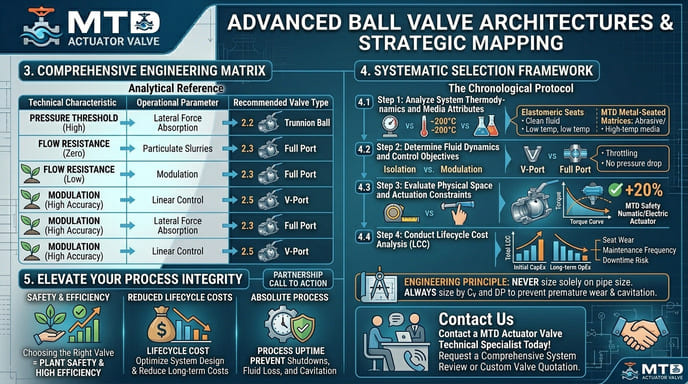

The following analytical reference grid matches technical characteristics against operational parameters to guide configuration selection.
To implement a reliable fluid control system, engineers must evaluate valve selection through a strict chronological protocol.
Define the maximum operating pressure, temperature spikes, and chemical composition of the fluid. Select elastomeric seats for clean fluids under 200°C, or choose MTD Actuator Valve metal-seated matrices for abrasive or high-temperature media.
Establish whether the application requires strict isolation or modulation. Select V-Port configurations for precise throttling or Full Port architectures to eliminate pressure drops in high-volume transport lines.
Calculate structural piping loads and envelope dimensions. Map the valve’s torque curve to electrical or pneumatic actuators to ensure a minimum 20% safety torque margin under full differential pressure.
Balance initial capital expenditure against long-term operational costs. Evaluate seat wear, maintenance frequency, and process downtime risks to confirm that the chosen valve type optimizes long-term asset performance.
Engineering Principle: Never select a valve based solely on nominal pipe size. Always size the valve according to system flow coefficients ($C_v$) and worst-case differential pressure profiles to prevent premature mechanical wear and cavitation.
Choosing the right ball valve directly impacts the safety, efficiency, and profitability of your plant. Specifying sub-optimal hardware leads to unscheduled maintenance shutdowns, fluid loss, and diminished control accuracy.
MTD Actuator Valve engineers and manufactures premium fluid control solutions customized for tough industrial applications. Partner with our application engineering team to optimize your system design, reduce lifecycle costs, and ensure absolute process uptime.
Contact a MTD Actuator Valve Technical Specialist today to request a comprehensive system review or custom valve quotation.
