A control valve is a regulatory device used to manipulate and regulate the pressure and flow of various materials in industrial settings. These materials can include steam, gas, hot water, and different chemicals used in the production of end - products. It is a crucial component of the control process loop in industries, ensuring quality production by maintaining variables at the required set points. Minute changes detected by sensors and detectors are fed to the control valve through various software.

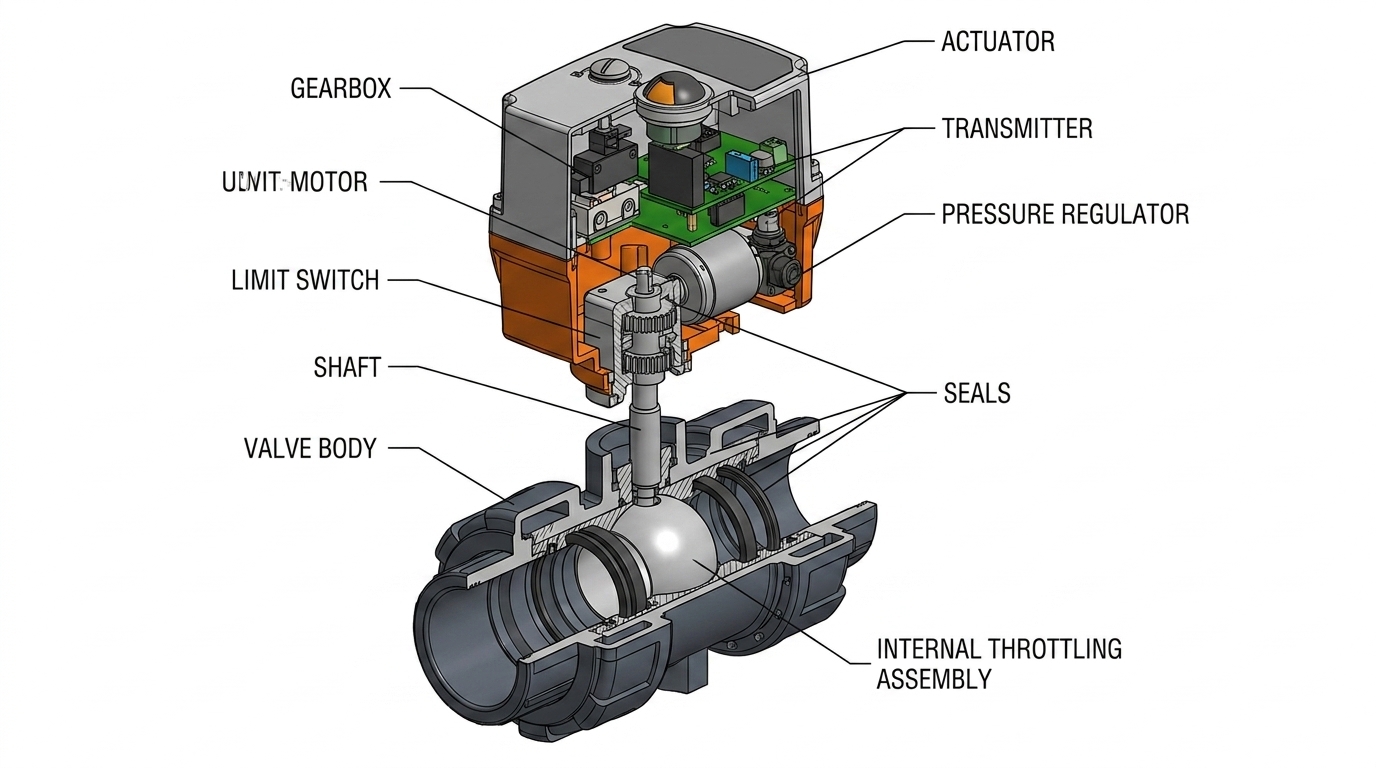

Behind the efficient operation of a control valve lies an entire assembly line, about which many are unaware. A typical control valve assembly line consists of the main body, internally trimmed components, and an actuator that provides the electrical or pneumatic power for the control valve's operation. Control valve accessories vary by industry and may include flow - pressure regulators, transducers, and limit switches, among others.
An operational industrial plant has hundreds of control loops operating in the background, ensuring its smooth functioning. These control loops are grouped, with each group responsible for managing specific variables such as flow rate, pressure, temperature, and material level. The loops work in harmony, interacting with one another to maintain the overall process within the desired conditions.
Since these loops are interconnected, load disturbances can occur while managing variables. As the final part of the loop, the control valve is tasked with rectifying these load disturbances. In this way, the control valve in each control loop helps keep the industrial plant in an optimal state, ensuring the production of high - quality products throughout the process.
In the mechanical industry, the control valve is an underappreciated yet vital component of the control loop. Neglecting its proper selection can lead to a decline in product quality or disruptions in the services provided by the industrial plant. A typical control loop usually includes a Sensor, a Transmitter, and a Controller.
The type of sensor used depends on the nature of the industrial plant. The sensor detects load disturbances, which are then transmitted to a collector via transmitters. In an automated control loop, the control unit has pre - set conditions for process variables. The data collected is compared with these pre - set conditions, and if necessary, a corrective signal is generated. This corrective signal is then sent to the control element of the control loop, which monitors the process. In essence, the sensors act as the “eyes,” the transmitter as the “messenger,” the collecting unit as the “brain,” and the control element as the “hands” of the control loop.
As emphasized, the control valve is as important as other hardware components in a control loop. Its efficiency directly impacts the profitability of the entire industrial plant. Therefore, proper installation of the control valve is crucial; any installation mistakes can lead to plant failure, regardless of how advanced the other machinery is.
The accurate operation of the control valve can be ensured by following the manufacturer's installation guide and precautions. Here are some common mistakes to avoid during the installation of control valves:
It is highly recommended to review the instruction manual before installing a valve in the control loop. The instruction manual typically contains detailed guidelines, do's and don'ts, and safety precautions provided by the manufacturer. By strictly adhering to these instructions, one can prevent any mishaps during or after the installation of the control valve.
Despite the manufacturer's precautions during production and transportation, the control valve may sustain damage during shipment or loading/unloading. Conducting a thorough inspection before installation can save time and cost, as many companies offer a product guarantee before installation. Failing to identify any defects before installation can result in damage during installation or service disruptions after installation. It is advisable to carefully inspect the control valve by removing packaging and shipment markings prior to installation.
Always check the pipe endings for any damage, cuts, or the presence of foreign materials such as metal flakes or welding slag before installing the control valve. If any of these conditions exist, the seating surface of the control valve may be damaged. Applying excessive force during installation to overcome obstacles can lead to valve breakage or improper tightening, resulting in leakage.
If the valve has screwed connections for installation, ensure the use of a suitable sealant. Failure to do so can lead to a loose valve installation, causing gas or liquid leakage in the future. Apply the sealant to the male pipe threads rather than the female pipe threads. When force is applied during tightening, the sealant on the female threads may penetrate the valve body, causing the valve to stick and dirt to coagulate, eventually shutting off the control valve.
The control valve can be installed in various positions depending on the type and nature of the piping material. The most recommended installation method is vertical, with the actuator in a vertical direction relative to the valve body. Horizontal installation places extra weight on the top works and internal trims, pushing the valve stem in one direction. This abnormal shift can lead to premature wear, tear, and leakage of the valve assembly.
If the control valve is equipped with nuts and bolts, always follow a star - pattern for bolt tightening, similar to tightening car - tire bolts. The star pattern creates a better seal and prevents leakage compared to a one - sided tightening pattern.
