What is a Check Valve?

A check valve, also known as a non - return valve or one - way valve, is a mechanical device designed to permit fluid (either liquid or gas) to flow in one direction while preventing backflow in the opposite direction. It achieves this by using a mechanism that automatically closes when the fluid attempts to reverse its flow. When the fluid is flowing in the desired direction, the valve remains open. However, when the pressure drops or the flow direction reverses, the valve shuts.

Common types of check valves include:

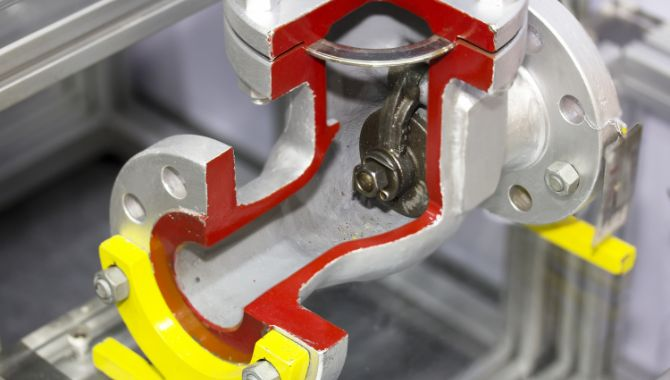

• Swing Check Valves: These feature a hinged disc that opens or closes based on the direction of the fluid flow.

• Lift Check Valves: They use a piston or ball that lifts off its seat to allow forward flow and then drops back to prevent reverse flow.

• Wafer Check Valves: These are thin, compact valves designed for limited - space applications and often have a double - plate or double - disc design.

• Dual - Plate Check Valves: They are equipped with two spring - loaded plates that close when the fluid flow reverses.

Each type of check valve has specific applications and unique advantages, making them suitable for different pipeline systems.

Key Roles of Check Valves in Protecting Pipeline Systems

Preventing Backflow and Reverse Flow

One of the primary functions of check valves is to prevent backflow, which can lead to contamination, system failures, or equipment damage. In numerous industries such as water treatment, chemical processing, and oil and gas, the presence of reverse flow can create costly and dangerous situations. Check valves offer a reliable solution by automatically closing when the flow reverses, safeguarding the system from potential hazards.

• Key Points:

  • Contamination Prevention: By blocking reverse flow, it stops clean fluids from getting contaminated.

  • Equipment Protection: Protects pumps, compressors, and other equipment from damage.

  • System Integrity: Ensures the integrity of the entire pipeline system.

Maintaining System Pressure and Flow Direction

In pipeline systems, maintaining stable pressure and flow direction is crucial for efficient operation. Check valves maintain the required pressure levels by preventing backflow, which otherwise could cause pressure drops and system inefficiencies. By ensuring that the fluid flows in the correct direction, check valves contribute to the overall stability and efficiency of the pipeline.

• Key Points:

  • Optimal Pressure Maintenance: Helps maintain optimal pressure levels within the system.

  • Unidirectional Flow Assurance: Ensures unidirectional flow, preventing flow interruptions.

  • Risk Reduction: Lowers the risk of pressure surges or drops.

Protecting Equipment from Water Hammer and Surge Damage

Water hammer is a phenomenon where pressure waves propagate through a pipeline when there is a sudden change in fluid velocity. This can cause severe damage to valves, pipes, and other equipment. Check valves, especially those with quick - closing mechanisms, can help mitigate water hammer by preventing the reverse flow that often triggers it. When the fluid flow stops or reverses, the check valve closes rapidly, absorbing the shock and protecting the system from potential damage.

• Key Points:

  • Risk Minimization: Minimizes the risk of water hammer and pressure surges.

  • Sensitive Equipment Protection: Protects sensitive equipment from damage due to pressure fluctuations.

  • Lifespan Extension: Helps extend the lifespan of the pipeline system.

Reducing the Risk of Contamination and Cross - Contamination

In industries like pharmaceuticals, food and beverage, and water treatment, preventing contamination is of utmost importance. Check valves play a vital role in preventing contamination by ensuring that fluids do not flow back into the supply lines, where they could mix with clean fluids or other substances. This is particularly crucial for systems handling hazardous or sensitive materials, as cross - contamination can have severe consequences.

• Key Points:

  • Fluid Purity and Safety: Ensures the purity and safety of fluids by blocking reverse flow.

  • Pollution Prevention: Prevents harmful substances from contaminating clean water supply pipelines.

  • Compliance Support: Supports compliance with industry standards for cleanliness and safety.

Improving System Efficiency and Reducing Downtime

Check valves enhance the overall efficiency of pipeline systems by ensuring that fluid flow remains stable and uninterrupted. This reliability reduces the likelihood of system failures or downtime, which can result in costly production interruptions. By maintaining the correct flow direction and preventing issues like backflow and water hammer, check valves help keep the system running smoothly and efficiently.

• Key Points:

  • Reliability Enhancement: Improves system reliability, reducing the risk of unexpected downtime.

  • System - wide Efficiency Boost: Increases the efficiency of the entire system by maintaining a stable flow.

  • Maintenance Minimization: Minimizes maintenance requirements and operational disruptions.

Supporting System Safety and Compliance

Safety is a top priority in any industrial operation, and check valves play a crucial role in ensuring the safety of pipeline systems. By preventing backflow and controlling pressure, check valves reduce the risk of accidents and equipment failures. Many check valves are also designed to meet specific industry standards, ensuring compliance with safety regulations and best practices.

• Key Points:

  • Risk Reduction: Lowers the risk of accidents and equipment damage.

  • Regulatory Compliance: Helps meet safety standards and regulations specific to various industries.

  • Safe Working Environment: Creates a safer working environment by preventing hazardous situations.

Versatility in Various Applications

Check valves are widely used across diverse industries, including oil and gas, water treatment, chemical processing, and HVAC. Their versatility makes them suitable for a wide range of applications, from simple domestic water systems to complex industrial processes. Different types of check valves can be customized to meet the specific requirements of each application, ensuring optimal performance.

• Key Points:

  • Industry - wide Applicability: Suitable for various industries and applications.

  • Customization Options: Offers customization options to meet specific system requirements.

  • Suitability for Simple and Complex Systems: Applicable to both simple and complex pipeline systems.

Conclusion

Check valves are an indispensable component in protecting pipeline systems across various industries. Their ability to prevent backflow, maintain pressure, reduce the risk of water hammer, and ensure system efficiency is vital for safe and reliable operation. By installing check valves in pipeline systems, you can protect your equipment, improve efficiency, and ensure compliance with industry standards.

Investing in high - quality check valves, such as those offered by MTD Actuator Valve, not only safeguards your pipeline system but also contributes to the long - term success and sustainability of your operations. When considering the role of check valves in your system, it is crucial to select the right type and 规格 to meet your specific needs, ensuring that your pipeline remains safe, efficient, and reliable for years to come.
