In the demanding realm of industrial process control, the butterfly valve represents an elegant balance between fluid flow mechanics and mechanical simplicity. However, this simplicity in design often conceals a depth of complexity relevant to diverse applications. One of the most frequently asked questions among field engineers and procurement specialists pertains to the seemingly straightforward matter of flow direction. Is a butterfly valve directional, or is it a symmetrical component that can operate regardless of the medium's flow direction?
This guide aims to dispel the confusion surrounding butterfly valve orientation, presenting an analytical framework that bridges the gap between theoretical fluid mechanics and the practical requirements of today's piping systems. By understanding the physics behind sealing and the structural nuances of various valve designs, we can ensure system integrity, minimize energy consumption, and mitigate the risks of catastrophic failure.

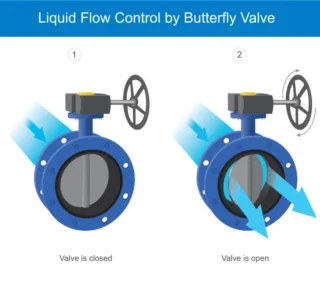

When discussing flow direction, we refer to the kinetic energy vector within a closed system. In the context of a butterfly valve, flow direction, particularly in relation to installation direction, is the path followed by the medium (liquid, gas, or slurry) as it passes through the valve body, coming into contact with the disc and the sealing seat. While some valve designs are indifferent to flow direction, most high - performance models are engineered with a preferred or mandatory orientation.
The significance of adhering to the correct flow direction cannot be overstated. Mechanically, the seal's effectiveness depends on the interaction between the medium's pressure and the valve's internal components. When a valve is installed in its optimal position, the line pressure typically aids in pressing the disc against the seat, resulting in a tighter shut - off. Conversely, incorrect orientation can lead to premature seat wear, increased operating torque, and internal leakage.
Beyond immediate mechanical concerns, there are broader economic factors related to operational uptime and efficiency. A valve installed contrary to its design specifications is a liability, a weak link in the infrastructure prone to unplanned repairs. Flow direction is also a crucial safety consideration in high - pressure or high - temperature conditions, ensuring that the valve fails predictably or maintains its seal integrity under extreme circumstances.
This question does not have a simple yes - or - no answer; it depends entirely on the internal geometry and sealing mechanism of the valve type in question. To understand this better, we can categorize butterfly valves into two main families: symmetric sealing and asymmetric, eccentric designs.

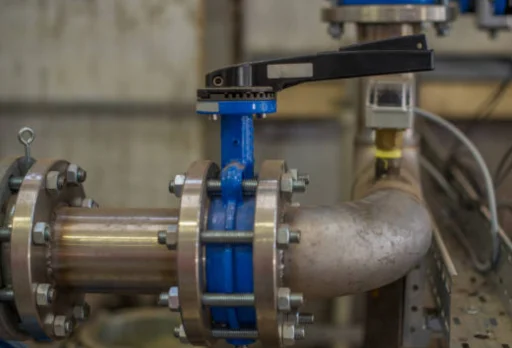

The most common type is the concentric butterfly valve, used in low - pressure, general - purpose applications. In this design, the stem passes through the centerline of the disc and the centerline of the valve body. Since the disc is perfectly centered, the sealing contact between the disc edge and the resilient (usually rubber or EPDM) seat remains the same, regardless of the pressure - applied side.
These valves are essentially bi - directional. Proper installation in this case is somewhat like a contract's structural integrity; the orientation is flexible as long as the basic parameters are met. The concentric valve offers the advantage of easy installation in water treatment, HVAC systems, and low - pressure chemical lines. Technicians need not worry about upstream or downstream orientation because the valve performs identically in both directions. However, in bi - directional designs, the pressure difference should be considered. Although the valve can close in both directions, it may have a side that better maintains its maximum pressure rating over time.
As we move into the realm of high - performance valves, such as double and triple offset models, the luxury of bi - directionality is lost. These valves are designed for high - pressure, high - temperature, and critical - service applications where a standard seat would be inadequate.
The double offset valve has a stem that is not aligned with the centerline of the disc and the centerline of the body. This creates a cam - like movement that reduces friction on the seat. The triple offset valve adds a third offset: the conical shape of the sealing surfaces. These features result in an essentially asymmetric design.
In such configurations, there is a clear preferred flow direction. Typically, the medium pressure forces the disc into the seat in this direction, enhancing the seal. When installed in the reverse direction, the medium pressure acts against the sealing mechanism, attempting to push the disc away from the seat. While some high - performance valves are marketed as bi - directional, they almost always have a preferred direction in which they can achieve the best leakage class (such as API 598 or ISO 5208 Rate A).
Sealing Design | Flow Directionality | Primary Applications |
Symmetric; Stem passes through center of disc. | Bi - directional; Uniform sealing on both sides. | HVAC, Water Treatment, Low - pressure chemicals. |
Asymmetric; Cam - action reduces seat friction. | Preferred Direction; Higher sealing class in one direction. | Steam, Oil & Gas, High - pressure water. |
Conical geometry; Non - rubbing sealing surface. | Unidirectional/Preferred; Critical for zero - leakage. | High - temperature, Abrasive media, Power plants. |
A common misconception in this field is the interpretation of the arrow cast or etched on the valve body. To the uninitiated, this arrow may seem to indicate the fluid's flow direction. However, in the industrial valve world, the arrow often symbolizes the Direction of Sealing Pressure, which is not necessarily the same as the medium's flow direction.
In most high - performance butterfly valves, the arrow points to the side of the valve that should be exposed to higher pressure when the valve is closed. This is crucial in applications like pump discharge. When the pump is operating, the flow is in one direction. When the pump stops, the valve closes to prevent backflow, and the pressure then acts on the other side.
Engineers must ask themselves: In which direction should the valve provide its most critical seal? When the valve is used to isolate a tank, the pressure is on the tank side. When safeguarding a pump against backflow, the pressure is on the downstream piping. In this sense, the valve is like a gatekeeper in a high - stakes transaction; its primary role is to withstand the pressure from the “counterparty” when the gates are closed. Decoding the manufacturer's intent behind this arrow can mean the difference between a successful installation and a system - wide failure.
The consequences of disregarding the flow direction can be both subtle and severe. Reversing the installation of a directional valve is an avoidable error with significant technical and financial implications in an industry with narrow margins and strict safety standards.
Sealing is the primary concern when a valve is installed backwards. In an offset butterfly valve, sealing is achieved through a combination of mechanical torque and process pressure. When correctly installed, the process pressure acts as a secondary force, pushing the disc seat into the body seat.
However, when installed in reverse, the pressure becomes an antagonistic force. It enters the back of the disc, exerting a force that tries to dislodge the disc from the seat. This can cause the seat of resilient - seated valves to deform or blow out of its housing. In triple - offset valves with metal seats, it may lead to unseating, where the valve reaches its mechanical limit but cannot achieve a bubble - tight seal due to the pressure acting against the conical seal's contact angle. This results in chronic, hard - to - detect leaks, or internal bypass, which gradually erodes the sealing surfaces over time through a process known as wire - drawing.
Flow direction significantly affects the dynamic torque required to open the valve. As the medium passes over the disc, it exerts aerodynamic or hydrodynamic forces. The disc in a butterfly valve acts like a wing. When the flow is on the non - preferred side, the pressure distribution across the disc can become unbalanced.
This imbalance generates dynamic torque, which may either force the valve open or slam it shut. If the actuator (electric, pneumatic, or manual) was sized based on the desired flow torque, it may be underpowered when dealing with reverse flow. In automated systems, this can cause actuator hunting, where the motor overheats while trying to maintain a position against unexpected fluid forces. The actuator is the valve's “brain” and “nervous system”; when it constantly struggles with unpredictable physical feedback due to improper orientation, the entire system will eventually succumb to fatigue.
While the basic rule is to follow the arrow, real - world piping is rarely straightforward. Complex layouts introduce turbulence, cavitation, and non - uniform velocity profiles, complicating decisions regarding flow direction.
Butterfly valves should ideally be installed with a minimum of ten pipe diameters of straight pipe upstream and five diameters downstream to maintain a steady flow, especially in applications like water treatment plants. The flow direction becomes even more critical when space is limited and a valve must be installed near an elbow or a pump.
When using pumps, the valve may be exposed to high - velocity turbulence. The valve should be installed with the stem in a horizontal position. This prevents debris from accumulating at the bottom of the valve and helps distribute the turbulent flow from a pump or an elbow more evenly across the disc faces.
When installing in a vertical pipe with downward - flowing fluid, special care is needed. When throttling with the valve, the fluid's mass and velocity can create a vacuum effect behind the disc, leading to cavitation. In such cases, the flow direction may need to be re - evaluated with the manufacturer to ensure the disc is not drawn into an incorrect position.
In media containing solids, both flow direction and shaft orientation must be considered. When the shaft is horizontal, the flow will clear the bottom of the seat as the valve opens, preventing the buildup of solids that could disrupt the sealing direction.
While mastering manual installation tips provides a solid foundation, modern industrial plants have increasingly precise requirements that cannot be met by manual control alone. The transition from correct installation to optimized control is where the true strategic value of smart automation becomes evident. In a traditional manual system, once the valve is installed, it operates as a “black box.” You can only assume it is closing properly based on its position, but you won't know for sure until it leaks or fails.
Smart actuated systems redefine this relationship by converting physical orientation into digital feedback. The most significant advantage of a smart system is its ability to monitor the Torque Profile in real - time. The valve is no longer a passive component; it becomes a diagnostic tool. If a valve is installed in the wrong flow direction or if the pipe conditions change such that the ΔP (pressure drop) varies erratically, the smart actuator will detect the resulting torque deviations. Instead of allowing a reverse - flow situation to damage a motor or erode a seat, an intelligent system provides an immediate warning. This shifts the maintenance approach from reactive to predictive, enabling the system to identify directional or sealing issues before they reach a critical stage. Importantly, if these mechanical stresses exceed predetermined safety levels, the actuator can autonomously intervene, halting operation to prevent irreversible damage to the entire assembly.
At MTD Actuator Valve, we understand that a valve is not an isolated component but a crucial element within a broader industrial architecture. With over 20 years of specialized manufacturing experience and ISO certification, our portfolio of 800 + successful projects attests to our commitment to reliability. We bridge the gap between theoretical fluid mechanics and the specific demands of your facility through continuous R&D, maintaining a qualification rate of over 95%.
Our engineering expertise is particularly evident in how we address complex flow challenges. MTD Actuator Valve's team conducts comprehensive torque analysis to ensure that every automated valve assembly is precisely calibrated to the dynamic loads of your specific orientation. By offering fully integrated electric and pneumatic actuated valve solutions, we eliminate the potential for human error in the field, effectively translating complex fluid logic into measurable process stability. Whether you're dealing with high - cycle chemical processing or large - scale water distribution, MTD Actuator Valve provides the expertise to leverage two decades of industrial knowledge for your next project. If you're looking to optimize your infrastructure with high - precision technology, contact MTD Actuator Valve today.
Understanding butterfly valve flow direction is a journey from simply observing a cast arrow to a profound appreciation of fluid dynamics and mechanical engineering. While concentric valves offer bi - directional simplicity, high - performance offset valves, which are vital in critical industries, demand a more sophisticated approach. By correctly interpreting the relationship between flow and pressure, engineers can prevent leakage, protect actuators from overload, and ensure the long - term integrity of their infrastructure. The medium's flow is like a river's current; one can either work in harmony with it or face the erosive consequences of resistance. As we look towards a future of smarter, more automated systems, the fundamental principles of correct installation remain the cornerstone of industrial excellence. By combining these timeless principles with the advanced automated solutions provided by MTD Actuator Valve, we can achieve a level of precision and reliability once only attainable in theory.
