Introduction

Ball valves are ubiquitous in numerous industries, serving as essential components for regulating fluid flow. Their fundamental design, featuring a hollow, perforated ball that rotates to open or close the flow path, makes them versatile across different fields. Understanding the various types of ball valves and identifying the most suitable one for a specific application, whether it involves high pressure, high temperature, or flow control, is crucial.

From floating ball valves to trunnion ball valves and beyond, there's a ball valve for nearly every conceivable application. This article will delve into the basic elements of ball valves, explore the most popular types, and assist you in making an informed choice. We'll also discuss their construction, materials, and specific applications, providing you with a comprehensive understanding of these indispensable devices.

Key Components: Breaking Down the Parts of a Ball Valve

A ball valve consists of several sub - assemblies, each with its distinct purpose:

• Valve Body: Acting as the outer shell, the valve body safeguards all internal components from physical damage. Constructed from stainless steel, carbon steel, or brass, it offers reinforcement and high resistance to pressure, heat, and rust, ensuring durability in harsh industrial environments.

• Ball: The spherical component with a central through - hole controls the flow. Engineered for easy rotation, the ball is typically made of stainless steel or other robust metals to withstand high - pressure and high - temperature conditions.

• Valve Seat: The spherical valve seat serves as the critical sealing interface between the ball and the valve body, preventing leakage. PTFE (Teflon) is commonly used for general applications due to its flexibility, while metal seats are preferred for high - temperature, high - pressure, and abrasive services.

• Valve Stem: The valve stem is a rotary shaft that connects the ball to the handle or actuator. It controls the valve's operation by rotating the ball and must be leak - proof and resistant to wear and tear. Some valve stems feature anti - blowout properties and are made of corrosion - resistant materials to meet the safety and reliability requirements of specific applications.

• Handle or Actuator: This component provides the means to open or close the valve. Manual handles are simple and suitable for small systems, while electric, pneumatic, or hydraulic actuators enable automatic, precise operation, making them ideal for large - scale operations demanding accuracy and reliability.

• Bonnet or Cover: It shields the internal parts and provides access for servicing top - entry ball valves or split - body valve constructions.

• Seals and Gaskets: Although small, these components play a vital role in preventing leakage caused by gaps between other parts. Usually made of rubber, PTFE, or metal, they ensure stable performance under varying pressure, temperature, and chemical conditions, maintaining the valve's integrity in challenging environments.

These components collectively contribute to the flexibility, durability, and wide - ranging applicability of ball valves across various industries.

Exploring Ball Valve Types

Ball valves are integral to industrial systems, offering accurate and reliable fluid control. Gaining knowledge about the different types of ball valves is essential for selecting the right one for a particular process. Ball valves can be classified based on structure, flow path, sealing mechanism, and actuation method to meet specific operational requirements. The following sections aim to provide a detailed analysis of the various types of ball valves to clarify any confusion among industry professionals.

Classification by Structure

• Floating Ball Valves: In floating ball valves, the ball is only in contact with the valve seats and can move slightly up and down under pressure. This movement allows the ball to press tightly against the downstream seat. They are commonly used in low - and medium - pressure systems and small pipelines due to their features and relatively low cost. For example, they are frequently employed in water supply systems or heating networks.

• Trunnion Ball Valves: Trunnion ball valves have mechanical supports, known as trunnions, at the top and bottom of the ball. These supports reduce seat wear, making the valve suitable for high - pressure and large - diameter pipelines. Trunnion valves are prevalent in industries like oil and gas, where system pressures often exceed 500 bar. They are long - lasting and can perform well in harsh conditions over an extended period.

• Elastic Ball Valves: These valves feature a ball with a degree of elasticity, making them suitable for high - temperature and high - pressure services. The elastic property enables pre - loaded sealing, making them ideal for use in harsh environments such as power plants and chemical processing industries.

• V - Port Ball Valves: V - port valves have a V - shaped opening in the ball, making them perfect for flow control and throttling applications. They are used in industries that require precise flow rate control, such as the chemical industry.

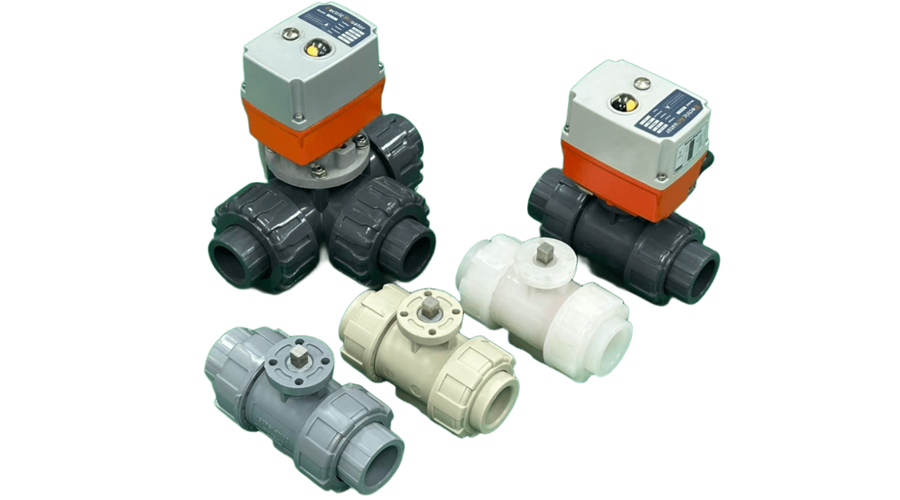

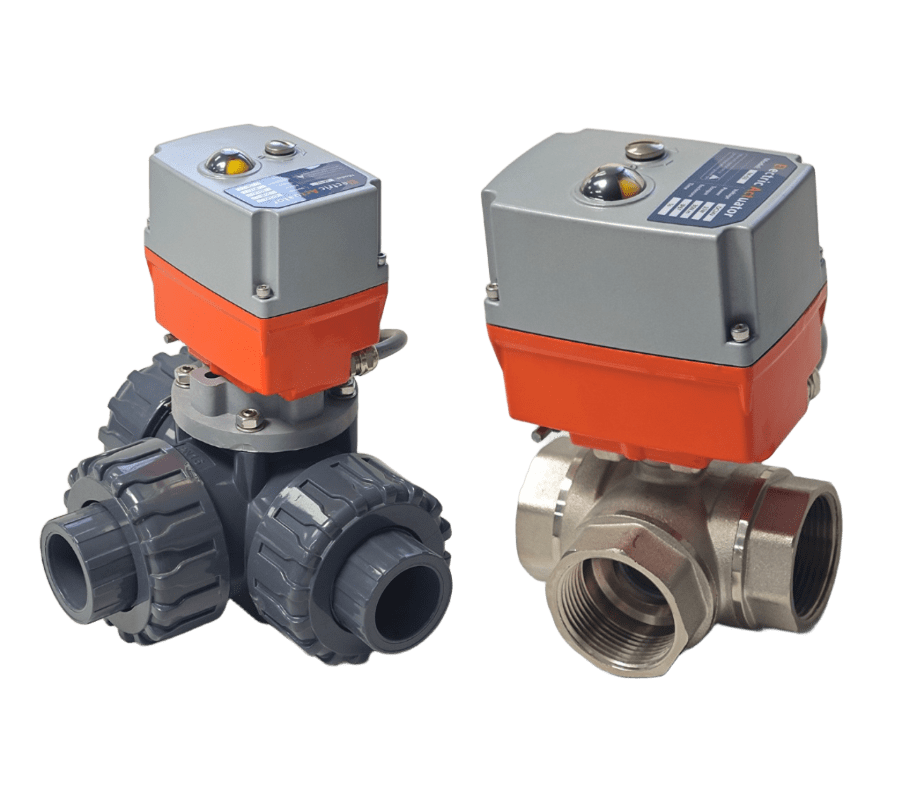

• Three - Way Ball Valves: Available in T or L - shaped structures, three - way ball valves allow for the diversion, merging, or switching of flows. They are commonly used in systems with reversible flow paths, such as water supply or multi - phase systems.

• Four - Way Ball Valves: With four flow paths, these valves are designed for complex fluid control systems that require multi - directional control in limited spaces.

Classification by Flow Path

• Straight - Through Ball Valves: These valves offer a straight - through flow path, resulting in low flow resistance and pressure loss. They are suitable for systems that require high flow rates, such as water or gas pipelines.

• Three - Way Ball Valves: As previously mentioned, these valves provide multiple flow routes, allowing operators to easily change or combine streams. For instance, a T - port valve can mix two fluids, while an L - port valve can switch the flow between two channels.

• Angle Ball Valves: With an angled flow path, these valves are commonly used in systems where pipelines bend or space is limited.

Classification by Sealing Mechanism

• Soft - Seated Ball Valves: These valves use a sealing surface made of soft materials like PTFE or other polymers. They offer excellent sealing capabilities but are generally suitable for low - to - moderate temperature applications (up to approximately 200°C) and non - corrosive fluids. They are commonly found in sectors such as food production and medicine manufacturing.

• Metal - Seated Ball Valves: Designed for high - temperature and high - pressure applications, metal - seated ball valves can operate at temperatures above 400°C. They are used in environments where the fluid is abrasive or corrosive, such as in chemical processing and power generation industries.

Classification by Actuation Method

• Manual Ball Valves: Typically opened or closed using a handle or wheel, manual ball valves are best suited for small systems with relatively low pressure. They are commonly found in residential and low - traffic commercial buildings.

• Pneumatic Ball Valves: Operated by compressed air, pneumatic ball valves are fast - acting and highly reliable. They are used in fully automated applications, particularly in manufacturing plants or high - cycle operations.

• Electric Ball Valves: Equipped with electrical actuators, electric ball valves offer precise, computer - controlled operation and are suitable for remote - controlled systems. They are widely used in oil refining, large HVAC systems, and chemical processing applications, where high precision, ease of use, and intricate flow control are essential.

• Hydraulic Ball Valves: Powered by hydraulic actuators, hydraulic ball valves are ideal for high - pressure applications such as hydraulic power stations or heavy machinery.

Each classification of ball valves offers unique flexibility and operational benefits. For example, trunnion ball valves are well - suited for high - pressure services, while soft - seated valves are ideal for low - pressure applications with high shut - off requirements. This structured knowledge aids professionals in making decisions tailored to the technical and environmental requirements of their systems, facilitating the selection of a valve that meets performance and cost - efficiency criteria.

Choosing the Right Ball Valve for Your Needs: Key Factors to Consider

Selecting the appropriate ball valve involves considering several factors to ensure optimal performance, reliability, and efficiency. Here are the key considerations:

• Medium Characteristics: The nature of the fluid or gas being handled is of utmost importance. In acidic environments, such as those containing diluted acids, seawater, or wastewater, stainless steel or Hastelloy is preferred due to its corrosion resistance. For non - corrosive media, carbon steel or brass can be used as a more cost - effective option. Additionally, if the media contains particles or is abrasive, the valve design may need to be adjusted to prevent premature failure and accommodate lower pressure conditions.

• Operating Pressure and Temperature: Consider the pressure and temperature ranges of the system. Trunnion - mounted ball valves are suitable for high - pressure applications, such as those above 10,000 psi, due to their high - performance characteristics. Similarly, for high - temperature applications above 400°F (204°C), metal - to - metal ball valves are preferred for better sealing and longer service life.

• Valve Body and Seat Materials: The valve body and seat materials should be compatible with the working environment of the equipment. PTFE is a versatile material but may degrade at high temperatures. Metal seats, on the other hand, offer superior performance under high - stress conditions. It's essential to match the material choices with the characteristics of the working medium and the system.

• Actuation Method: Choosing the actuation method for a ball valve depends on system needs, control accuracy, environment, and cost. Manual actuation is inexpensive and easy to implement, making it suitable for low - pressure and low - frequency applications, such as residential water supply pipes or simple industrial uses. However, manual ball valves may be ineffective in applications requiring high torque or frequent operation.

Pneumatic actuation is fast and lightweight, making it ideal for high - cycling applications like bottling lines and manufacturing production lines. While electric actuation is slower than pneumatic systems, pneumatic systems require an external air compressor, adding complexity to the system. This factor should be carefully evaluated, especially in resource - scarce or space - limited situations.

In applications where high pressure or high torque is required, such as in oil and gas pipelines or offshore platforms, hydraulic actuation is the best choice. Hydraulic systems offer robust power backup in complex circumstances, ensuring the system's durability. However, they typically require higher maintenance and installation costs compared to simpler designs.

Electric actuation is favored for its accuracy and programmability, making it suitable for chemical manufacturing, water treatment plants, and HVAC systems. Ideal for processes requiring high accuracy and long - term stability, electric actuators support remote control and automation. However, electric actuation is slower than pneumatic systems and requires a constant power source, necessitating backup systems in case of power failure.

By evaluating operational requirements, response time, control accuracy, and cost factors, it's possible to select the most suitable actuation method to achieve the best performance and stability of the ball valve system in a given application.

• Design and Installation Requirements: Finally, assess the structural design and installation requirements. Top - entry valves are easy to service, and customers often prefer flanged or threaded connections for installation. Space limitations may also dictate the use of small valves in the system.

• Flow Requirements: Flow rate is a critical factor. Full - port valves, including standard - port ball valves, allow for free fluid flow with low pressure loss, making them suitable for systems where flow is a top priority. Smaller - port valves are less expensive but introduce minor flow restrictions, making them suitable for moderate - flow applications.

Understanding these factors enables you to choose a ball valve that meets your operational requirements, is reliable, efficient, and cost - effective within your system.
