In fluid control systems, check valves are indispensable for preventing backflow and ensuring the seamless operation of pipelines. As a leading check valve provider, MTD Actuator Valve deeply comprehends the significance of picking the appropriate valve style for your unique requirements. This guide will familiarize you with diverse check valve styles, spotlight their distinctions, and elucidate their applications in straightforward terms. By the conclusion, you'll have a crystal - clear understanding of which check valve style is most fitting for your needs.
A check valve, also referred to as a non - return valve, permits fluid (either liquid or gas) to flow solely in one direction. It automatically thwarts backflow, safeguarding the system from potential damage or contamination that could occur if the fluid were to flow backward.

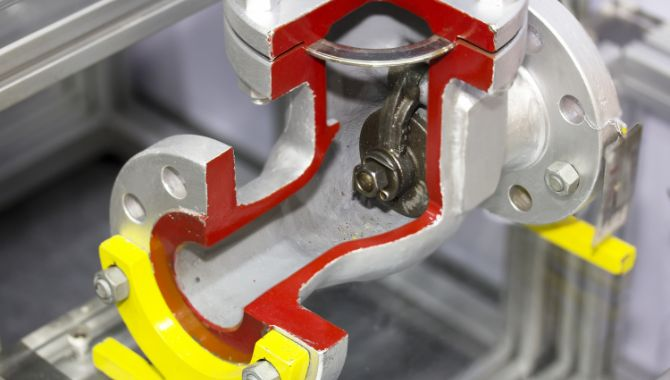

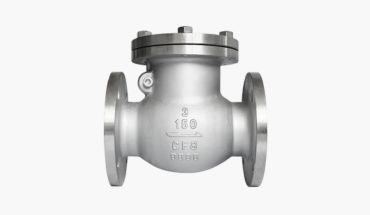

A swing check valve features a disc that pivots on a hinge or shaft, enabling fluid to flow forward. When the flow halts or reverses, the disc swings back to its closed position.
Applications: Swing check valves are frequently employed in water and wastewater applications, HVAC systems, and irrigation setups. They are well - suited for low - velocity flows but are not ideal for pulsating flows.
Advantages: Its simple design results in a low pressure drop, and it offers reliable operation, especially in large pipelines.

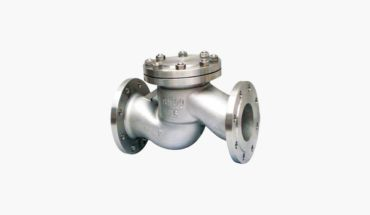

Lift check valves house a disc that moves vertically within a guided chamber. Fluid lifts the disc to facilitate flow, and gravity or reverse flow causes the disc to drop back, sealing the valve.
Applications: These valves are commonly utilized in steam, gas, and high - pressure applications where a tight seal is necessary.
Advantages: They are highly effective in high - pressure systems, possess excellent sealing properties, and can be installed both horizontally and vertically.
A ball check valve utilizes a ball that moves in and out of a seat to either allow or block flow. When fluid flows forward, the ball is pushed away from the seat, and when the flow reverses, the ball returns to the seat, sealing the valve.
Applications: Ball check valves find use in pump and compressor systems, water and wastewater treatment processes, and chemical processing industries.
Advantages: Their compact design enables them to handle viscous fluids, and they have low maintenance requirements.
Diaphragm check valves are equipped with a flexible diaphragm that opens and closes to permit or obstruct flow. The diaphragm flexes to allow flow and reverts to its original position to prevent backflow.
Applications: Ideal for applications involving corrosive fluids, such as in chemical processing and the pharmaceutical sector.
Advantages: They are well - equipped to handle corrosive and abrasive fluids, have minimal leakage, and can be used in sanitary applications.

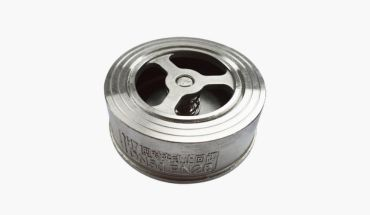

Wafer check valves are thin and lightweight, engineered to fit between two flanges in a piping system. They can incorporate various internal mechanisms, like a disc or a plate, to prevent backflow.
Applications: Suitable for systems with limited space, including HVAC systems and water treatment plants.
Advantages: Their compact design makes them easy to install, and they have a low pressure drop.
Silent check valves, also known as no - slam check valves, utilize a spring - assisted disc to regulate flow. The spring ensures smooth and quiet operation by preventing the disc from slamming shut.
Applications: These valves are used in systems where noise reduction is crucial, such as in residential plumbing and heating systems.
Advantages: They offer quiet operation, prevent water hammer, and respond rapidly to flow changes.
A tilting disc check valve has a disc that tilts open and closed to either allow or prevent flow. The disc tilts in response to the flow and is balanced to minimize wear and tear.
Applications: Commonly found in power plants, the oil and gas industry, and water treatment facilities.
Advantages: They are durable, have a low pressure drop, and are effective in both horizontal and vertical installations.
Operation Mechanism: Each style has a distinct mechanism for allowing or blocking flow, whether it's swinging, lifting, or tilting discs, balls, diaphragms, or spring - assisted discs.
Pressure Drop: Some valves, like wafer check valves, exhibit a lower pressure drop, making them suitable for systems where maintaining pressure is of utmost importance.
Flow Characteristics: Certain valves, such as lift check valves, are better at handling high - pressure and high - velocity flows, while others are designed specifically for low - pressure systems.
Installation Orientation: Some check valves can be installed in any orientation, whereas others, like lift check valves, may have specific installation prerequisites.
Application Suitability: Each valve style is optimally suited for particular applications based on factors such as fluid type, pressure, temperature, and system requirements.
Understand Your System Requirements: Take into account the type of fluid, pressure, temperature, and flow characteristics of your system.
Determine the Installation Space: Assess the available space for valve installation. Compact designs like wafer check valves are perfect for tight spaces.
Consider Maintenance Needs: Select a valve that aligns with your maintenance capabilities. For example, ball check valves are low - maintenance.
Evaluate Flow Conditions: Lift check valves are appropriate for high - pressure and high - velocity flows, while swing check valves are more suitable for low - velocity applications.
Factor in Noise Reduction: If noise is a concern, opt for silent check valves to minimize water hammer and ensure quiet operation.
Selecting the correct check valve is vital for the efficiency and safety of your fluid control system. By grasping the differences and applications of various check valve styles, you can make an informed decision that caters to your specific needs. Whether you need a swing check valve for a water system, a diaphragm check valve for handling corrosive fluids, or a silent check valve for noise - sensitive environments, MTD Actuator Valve has a check valve designed to meet your application requirements.
If you have any queries or need further assistance in choosing the right check valve, don't hesitate to contact us. We're dedicated to helping you ensure the smooth and reliable operation of your fluid control systems. If your project requires any check valves, please feel free to reach out to us！
